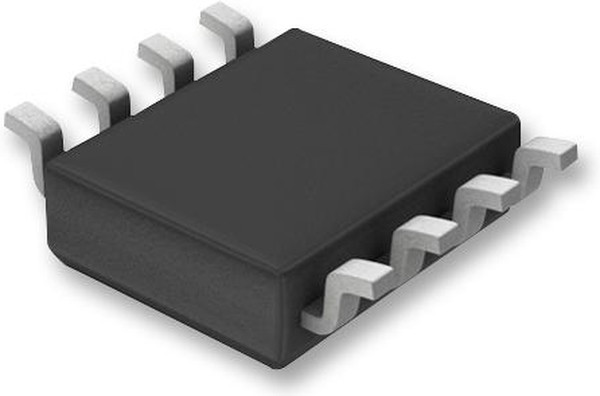

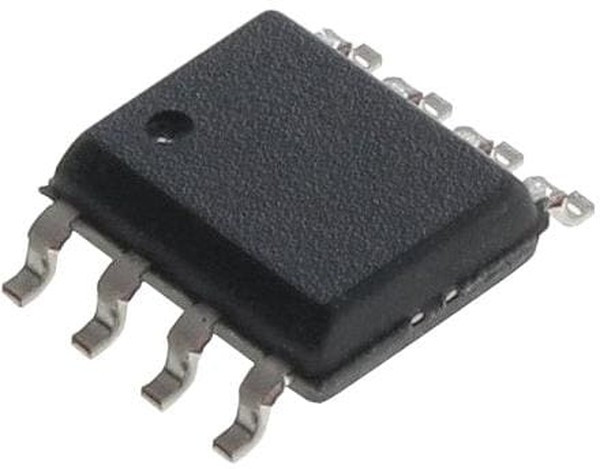

MAX407ESA+, Операционный усилитель, микромощный, 2 Усилителя, 8 кГц, 5 В/мс, 2.5В до 10В, NSOIC, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe MAX407ESA+ is a dual 1.2µA max, operational amplifier (op-amp) in 8 pin NSOIC package. This low voltage, micropower, precision op-amps is designed for battery-operated systems. The single supply device features a supply current of less than 1.2µA per amplifier that is relatively constant over the entire supply range which represents a 15 to 20 times improvement over industry standard micropower op-amp. A unique output stage enables this op-amp to operate at ultra-low supply current while maintaining linearity under loaded conditions. In addition, the output is capable of sourcing 1.8mA when powered by a 9V battery. This device is used in intrinsically safe systems, electrometer amplifiers, photodiode pre-amps and pH meters. • Supply voltage range is 2.5V to 10V• Operating temperature range from -40°C to 85°C• Maximum offset voltage is 3mV at TA= +25°C (V+=2.5V)• Typical input bias current is < 0.1pA at TA= +25°C (V+=2.5V)• Output swings rail to rail• Input voltage range includes negative rail• Internally compensated to be unity-gain stable• Typical CMRR value is 80dB & PSRR value is 200µV/V at TA=+25°C ( V+=2.5V)• Typical gain bandwidth is 8kHzat TA= +25°C (V+=2.5V)
