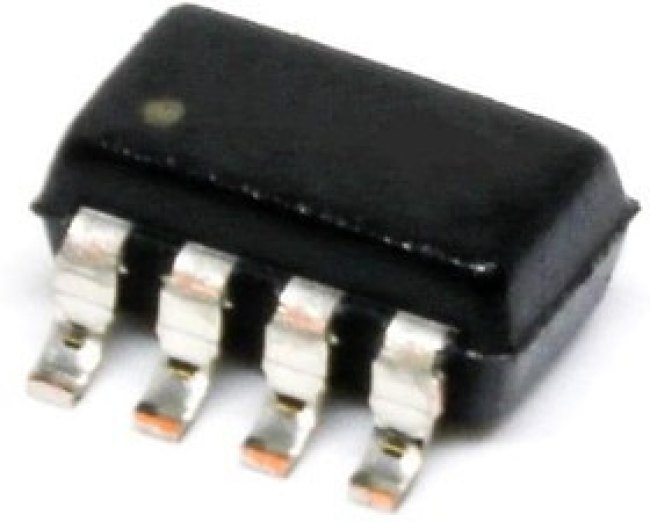

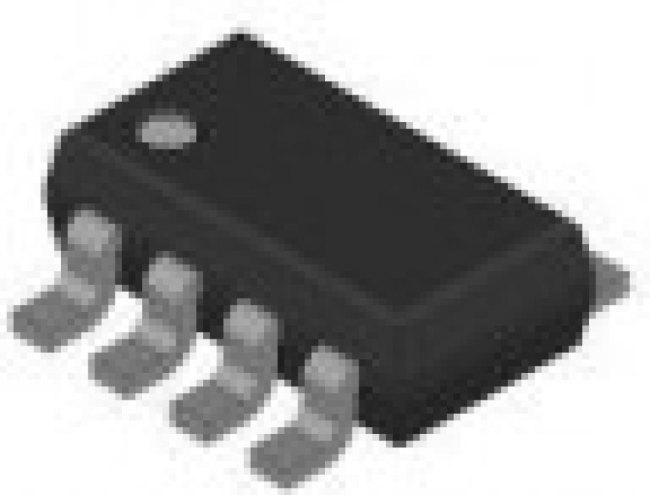

LTC6259HTS8#TRMPBF, Operational Amplifiers - Op Amps Dual 1.3MHz, 20?A Power Efficient Rail-to-Rail I/O Op Amps
Оставить отзыв
В избранноеВ сравнение
Артикул: LTC6259HTS8#TRMPBF
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:33:23 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Power Efficient Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 95 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 38 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 500 |
| gain v/v: | 40 V/mV |
| gbp - gain bandwidth product: | 1.3 MHz |
| ib - input bias current: | 5 nA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.5 pA/rtHz |
| ios - input offset current: | 75 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage (v) | ±2.625 |
| maximum input bias current (ua) | 0.075@5V |
| maximum input offset current (ua) | 0.075@5V |
| maximum input offset voltage (mv) | 0.4@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 5.25 |
| maximum supply current (ma) | 0.046@5V |
| minimum cmrr (db) | 64 |
| minimum cmrr range (db) | 60 to 65 |
| minimum dual supply voltage (v) | ±0.9 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 78 |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 20 mA |
| output current per channel: | 10 mA |
| output type: | Rail-to-Rail |
| package / case: | SOT-23-8 |
| packaging | Tape and Reel |
| партномер | 8004965105 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | Bipolar |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 90 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | LTC6259 |
| shutdown: | Shutdown |
| shut down support | No |
| sr - slew rate: | 240 mV/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | TSOT-23 |
| supplier temperature grade | Automotive |
| supply voltage - max: | 5.25 V |
| supply voltage - min: | 1.8 V |
| thd plus noise: | 0.025% |
| type | Low Noise Amplifier |
| typical gain bandwidth product (mhz) | 01.03.2024 |
| typical input bias current (ua) | 0.005@5V |
| typical input noise voltage density (nv/rthz) | 38@5V |
| typical noninverting input current noise density (pa/rthz) | 0.5@5V |
| typical output current (ma) | 20(Max) |
| typical settling time (ns) | 18000 |
| typical slew rate (v/us) | 0.24@5V |
| typical voltage gain (db) | 92.04 |
| вес, г | 0.5 |
| vos - input offset voltage: | 100 uV |
