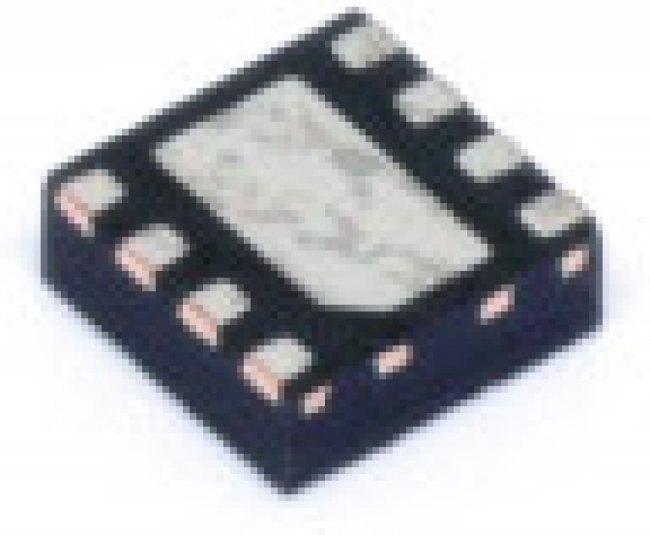

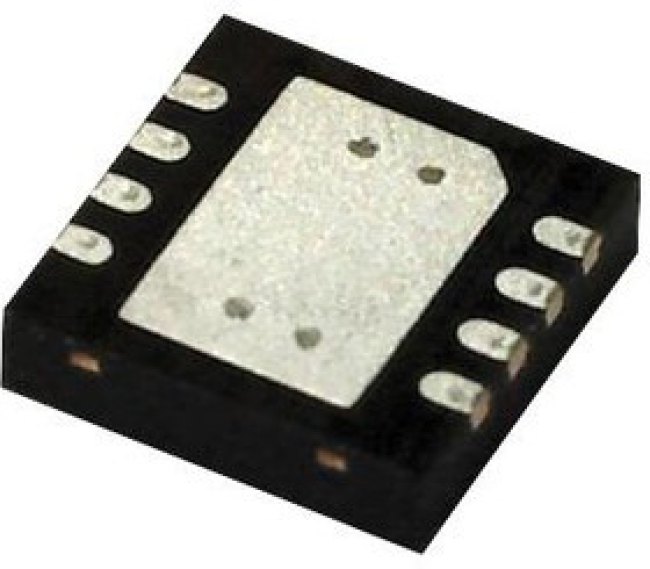

LT6234IDD#PBF, Операционный усилитель, 2 Усилителя, 60 МГц, 17 В/мкс, 3В до 12.6В, DFN, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУLT6234 is a single, low noise, rail-to-rail output unity-gain stable op amp. This amplifier combines very low noise and supply current with a 60MHz gain bandwidth product, a slew rate and is optimized for low supply voltage signal conditioning systems. The amplifier family has an output that swings within 50mV of either supply rail to maximize the signal dynamic range in low supply applications. Typical applications are ultrasound amplifiers, low noise, low power signal processing, active filters, driving A/D converters, rail-to-rail buffer amplifiers. • Input noise voltage density is 1.9nV/√Hz typical at f = 10kHz, VS = 5V• Supply current per amplifier is 1.2mA at TA=25°C, VS=5V, 0V; VS=3.3V, 0V; VCM=VOUT=half supply• Input offset voltage is 450µV at TA=25°C, VS=5V, 0V; VS=3.3V, 0V; VCM=VOUT=half supply• Slew rate is 17V/µs at AV = -1, RL = 1k, VO = -2V to 2V, TA = 25°C, VS = ±5V, VCM = VOUT = 0V• Minimum supply voltage is 3V at TA = 25°C, VS = 5V, 0V; VS = 3.3V, 0V; VCM = VOUT = half supply• Input bias current is 3µA at TA = 25°C, VS = 5V, 0V; VS = 3.3V, 0V; VCM = VOUT = half supply• Common mode rejection ratio is 115dB at VS = 5V, VCM = 1.5V to 4V, TA = 25°C• Input noise voltage is 220nVP-P at 0.1Hz to 10Hz, TA = 25°C, VS = 5V, 0V; VS = 3.3V, 0V• 8-lead (3mm × 3mm) plastic DFN package• -40°C to 85°C temperature rating
