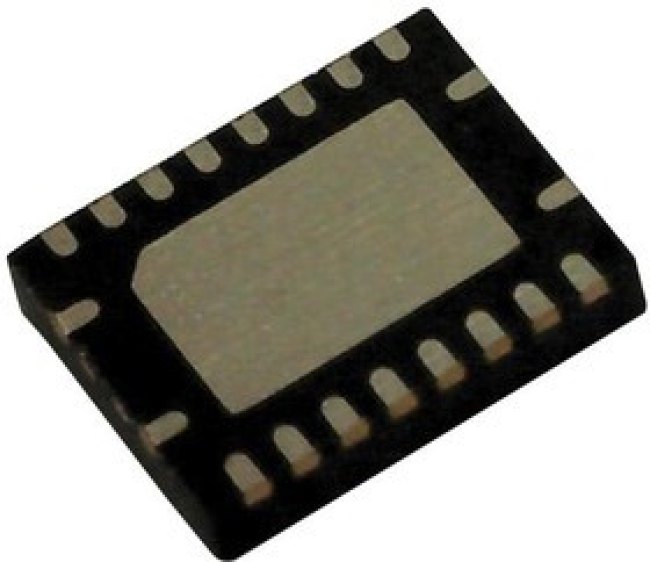

LT6017MPDJC#PBF, Операционный усилитель, 4 Усилителя, 3.3 МГц, 0.8 В/мкс, 3В до 50В, DFN, 22 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУLT6017 is a quad rail-to-rail input operational amplifier with input offset voltage trimmed to less than 50µV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315µA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V. The Over-The-Top® input stage of the LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V- to V+ and beyond: these amplifiers operate with inputs up to 76V above V- independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF. • Low power: 315µA/amplifier• Operating temperature range from-55°C to 150°C• VOS: ±50µV (maximum)• CMRR, PSRR: 126dB• Reverse battery protection to 50V• Gain bandwidth product: 3.2MHz• Specified on 5V and ±15V supplies• High voltage gain: 1000V/mV• No phase reversal, no supply sequencing problems
