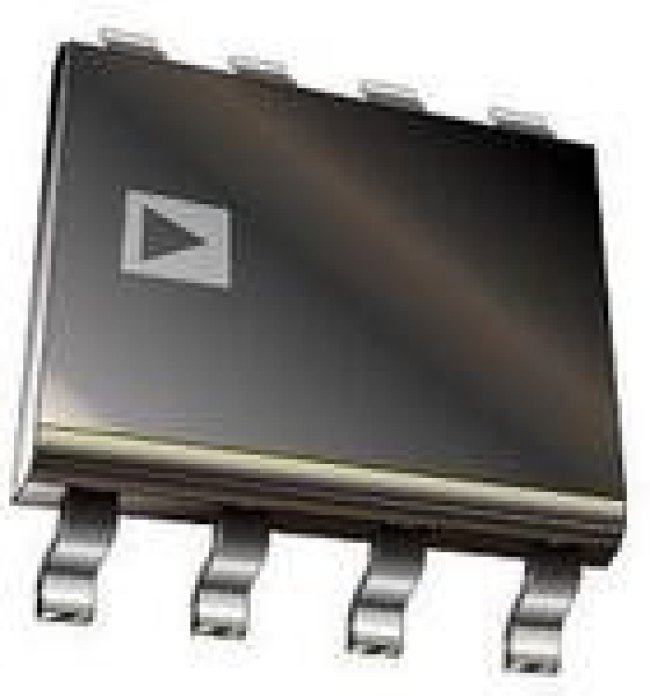

LT1813IS8#PBF, High Speed Operational Amplifiers Dual 3mA, 100MHz, 750V/ s Operational Amplifier
Оставить отзыв
В избранноеВ сравнение
Артикул: LT1813IS8#PBF
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Dual High Speed Amplifier В±6.3V/12.6V Automotive 8-Pin SOIC N Tube
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:24:54 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| common mode rejection ratio | 73(dB) |
| dual supply voltage (max) | ±6.3(V) |
| dual supply voltage (min) | ±2(V) |
| dual supply voltage (typ) | ±3/±5(V) |
| eccn (us) | ear99 |
| eu rohs | compliant |
| input offset voltage | 2(mV) |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage (v) | ±6.3 |
| maximum input bias current (ua) | 4@5V |
| maximum input offset current | 0.4@5V |
| maximum input offset current (ua) | 0.4@5V |
| maximum input offset voltage (mv) | 2@5V |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 12.06.2024 |
| maximum supply current (ma) | 8@5V |
| minimum cmrr (db) | 73 |
| minimum cmrr range (db) | 71 to 75 |
| minimum dual supply voltage (v) | ±2 |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 78 |
| minimum single supply voltage (v) | 4 |
| mounting | surface mount |
| number of channels per chip | 2 |
| number of elements | 2 |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| package type | SOIC N |
| packaging | Tube |
| партномер | 8004976322 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 78(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiCOM |
| rad hardened | No |
| settling time | 0.03(us) |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 12.6(V) |
| single supply voltage (min) | 4(V) |
| single supply voltage (typ) | 5/9/12(V) |
| slew rate | 350(V/us) |
| standard package name | SO |
| supplier package | SOIC N |
| supplier temperature grade | Industrial |
| supply current | 8@5V(mA) |
| technology | BiCOM |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product (mhz) | 94 |
| typical input noise voltage density (nv/rthz) | 8@5V |
| typical noninverting input current noise density (pa/rthz) | 1@5V |
| typical output current (ma) | 35@5V |
| typical settling time (ns) | 30 |
| typical slew rate (v/us) | 350@5V |
| typical voltage gain (db) | 66.02 |
| unity gain bandwidth product | 94 |
| вес, г | 0.5 |
| voltage gain in db | 66.02(dB) |
