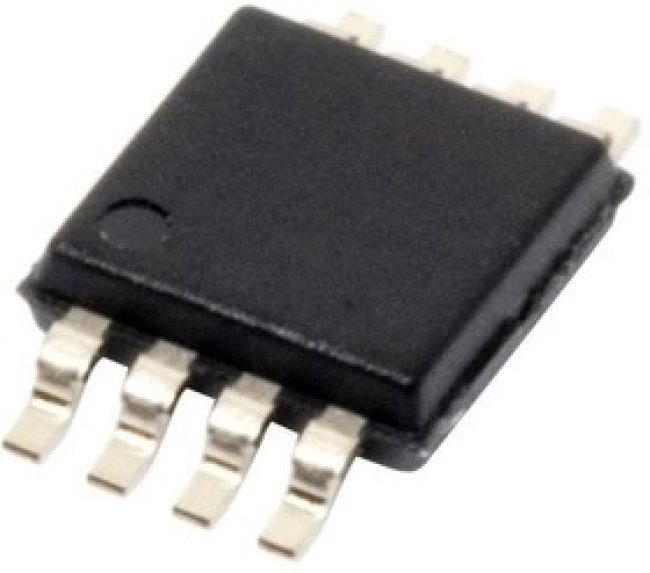

LT1807IMS8#PBF, Precision Amplifiers 325MHz, Dual, Rail-to-Rail Input and Output, Low Distortion, Low Noise Precision Op Amps

Оставить отзыв
В избранноеВ сравнение
Артикул: LT1807IMS8#PBF
Электронные компоненты Микросхемы Усилители – Инструментальные, Операционные, Буферные Analog Devices LT1807IMS8#PBF, Precision Amplifiers 325MHz ...
Analog Devices
Информация о производителе
ПроизводительAnalog Devices
Основные
Дата загрузки05.05.2024
Время загрузки23:01:21
БрендAnalog Devices
2 750
- +
Бонус: 55 !
Бонусная программа
Итого: 2 750
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Semiconductors\Amplifier ICs\Precision AmplifiersAmplifier ICs Analog Devices Amplifier ICs are amplifiers that deliver high performance and high value. ADI combines circuit design, manufacturing process innovation, and applications expertise to create products that simplify the signal-conditioning design. Analog Devices Amplifier ICs are abroad portfolio that includes precision operation amplifiers, high-speed operational amplifiers, instrumentation amplifiers, differential amplifiers, comparators, and voltage references. It also includes other specialty amplifiers and products for special linear functions.
Информация о производителе
ПроизводительAnalog Devices
Основные
Дата загрузки05.05.2024
Время загрузки23:01:21
БрендAnalog Devices
Вес и габариты
amplifier type:Low Noise Amplifier
automotiveYes
cmrr - common mode rejection ratio:100 dB
development kit:DC1501A-B, DC1501A-C
en - input voltage noise density:3.5 nV/sqrt Hz
gain v/v:220 V/mV
gbp - gain bandwidth product:325 MHz
ib - input bias current:1 uA
input type:Rail-to-Rail
in - input noise current density:1.5 pA/rtHz
ios - input offset current:50 nA
категорияЭлектронные компоненты/Микросхемы
manufacturer:Analog Devices Inc.
maximum input bias current - (ua)4@5V
maximum input offset current - (ua)1.5@5V
maximum input offset voltage - (mv)0.55@5V
maximum operating temperature:+85 C
maximum supply current - (ma)26@5V
militaryNo
minimum operating temperature:-40 C
mounting style:SMD/SMT
number of channels:2 Channel
operating supply current:9 mA
operating temperature - (??c)-40~85
output current per channel:85 mA
output type:Rail-to-Rail
package/case:MSOP-8
packagingTube
packaging:Tube
партномер8004976308
pin count8
process technologyBiCOM
product:Precision Amplifiers
product category:Precision Amplifiers
product type:Precision Amplifiers
psrr - power supply rejection ratio:105 dB
rail to railRail to Rail Input/Output
settling time:60 ns
shutdown:No Shutdown
shut down supportNo
sr - slew rate:125 V/us
standard package nameMSOP
subcategory:Amplifier ICs
supplier packageMSOP
supply voltage - max:12.6 V
supply voltage - min:2.5 V
typical gain bandwidth product - (mhz)325
typical slew rate - (v/us)125@5V
вес, г0.02
voltage gain db:47 dB
vos - input offset voltage:100 uV
