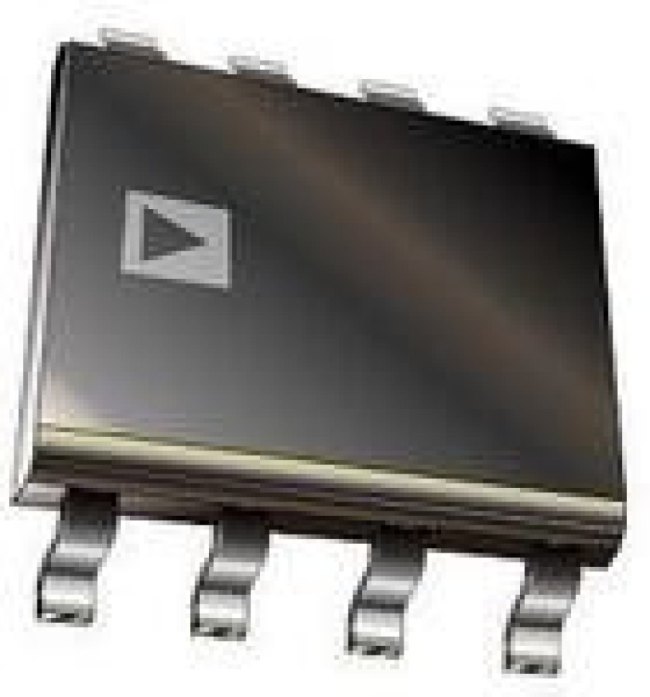

LT1638IS8#PBF, Precision Amplifiers 1.2MHz, 0.4V/?s Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps
Оставить отзыв
В избранноеВ сравнение
Артикул: LT1638IS8#PBF
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Precision AmplifiersAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:33:38 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 98 dB |
| development kit: | DC594A |
| eccn (us) | ear99 |
| en - input voltage noise density: | 20 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 100 |
| gain v/v: | 1500 V/mV |
| gbp - gain bandwidth product: | 1.2 MHz |
| ib - input bias current: | 20 nA |
| input offset voltage drift (uv/°c) | 6 |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.3 pA/rtHz |
| ios - input offset current: | 1 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage (v) | ±22 |
| maximum input bias current (ua) | 30@5V@-40C to 85C |
| maximum input offset current (ua) | 2.5@5V@-40C to 85C |
| maximum input offset voltage (mv) | 0.6@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 0.46@5V |
| maximum single supply voltage (v) | 44 |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage (v) | ±1.25 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 90 |
| minimum single supply voltage (v) | 02.05.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 170 uA |
| output current per channel: | 25 mA |
| output type: | Rail-to-Rail |
| package / case: | SOIC-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004691061 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 100 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | LT1638 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 380 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC N |
| supplier temperature grade | Industrial |
| supply voltage - max: | 44 V |
| supply voltage - min: | 2.5 V |
| type | Low Power Amplifier |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product (mhz) | 1.075 |
| typical high level output voltage (v) | 4.98 |
| typical input bias current (ua) | 8@5V@-40C to 85C |
| typical input noise voltage density (nv/rthz) | 20@5V |
| typical low level output voltage (v) | 0.5 |
| typical noninverting input current noise density (pa/rthz) | 0.3@5V |
| typical output current (ma) | 25(Min) |
| typical slew rate (v/us) | 0.38@5V |
| typical voltage gain (db) | 123.52 |
| вес, г | 0.42 |
| vos - input offset voltage: | 200 uV |
