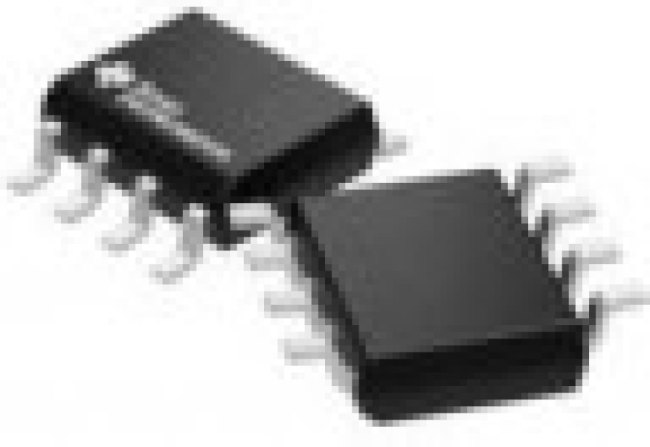

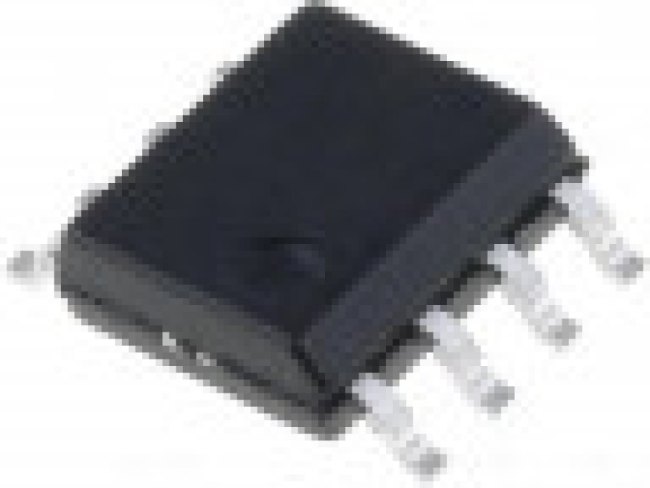

LT1013DD, Precision Amplifiers Dual Prec
Оставить отзыв
В избранноеВ сравнение
Артикул: LT1013DD
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Precision Amplifiers Описание IC: operational amplifier; 1MHz; Ch: 2; SO8; ±2?22VDC,4?44VDC Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
SMD
Кол-во каналов
2
Мин.напряжение питания, В
4
Макс.напряжение питания, В
44
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:46:35 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Low Offset Amplifier |
| amplifier type: | Low Offset Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 97 dB |
| cmrr - common mode rejection ratio: | 114 dB |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn (us) | ear99 |
| en - input voltage noise density | 24 nV/sqrt Hz |
| en - input voltage noise density: | 22 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 75 |
| factory pack quantity: factory pack quantity: | 300 |
| gbp - gain bandwidth product | 1 MHz |
| gbp - gain bandwidth product: | 1 MHz |
| height | 1.58 mm |
| ib - input bias current | 30 nA |
| ib - input bias current: | 18 nA |
| input offset voltage drift (uv/°c) | 5 |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.07 pA/sqrt Hz |
| in - input noise current density: | 0.07 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| length | 4.9 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Offset Voltage Amplifier |
| maximum dual supply voltage | +/-22 V |
| maximum dual supply voltage: | +/-22 V |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.05@5V |
| maximum input offset current (ua) | 0.002@5V |
| maximum input offset voltage (mv) | 0.95@5V |
| maximum operating temperature | +70 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 70 |
| maximum single supply voltage (v) | 30 |
| maximum supply current (ma) | 1@5V |
| minimum cmrr (db) | 97 |
| minimum cmrr range (db) | 95 to 105 |
| minimum dual supply voltage | +/-2 V |
| minimum dual supply voltage: | +/-2 V |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature | 0 °C |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | 0 |
| minimum single supply voltage (v) | 5 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current | 1.1 mA |
| operating supply current: | 320 uA |
| operating supply voltage | 4 V to 44 V, +/-2 V to+/-22 V |
| operating supply voltage: | 4 V to 44 V, +/-2 V to+/-22 V |
| output current per channel: | 20 mA |
| package / case | SOIC-8 |
| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004694463 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual, Single |
| ppap | No |
| product | Precision Amplifiers |
| product: | Precision Amplifiers |
| product category | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| rail to rail | No |
| rohs | Details |
| series | LT1013D |
| series: | LT1013D |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 0.4 V/us |
| sr - slew rate: | 400 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 44 V |
| supply voltage - max: | 30 V |
| supply voltage - min | 4 V |
| supply voltage - min: | 5 V |
| technology | Bipolar |
| technology: | Bipolar |
| type | Low Offset Voltage Amplifier |
| typical dual supply voltage | ±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V |
| typical dual supply voltage (v) | ±3|±5|±9|±12 |
| typical input bias current (ua) | 0.018@5V |
| typical input noise voltage density (nv/rthz) | 24@±15V |
| typical input voltage noise density | 24nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.07@±15V |
| typical single supply voltage | 5 → 28 V |
| typical slew rate | 0.4V/µs |
| typical slew rate (v/us) | 0.4@±15V |
| typical voltage gain | 120 dB |
| typical voltage gain (db) | 120 |
| unit weight | 0.002561 oz |
| vcm - common mode voltage | Negative Rail to Positive Rail-1.5 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1.5 V |
| вес, г | 0.07 |
| voltage gain db | 120 dB |
| voltage gain db: | 120 dB |
| vos - input offset voltage | 300 uV |
| vos - input offset voltage: | 90 uV |
| width | 3.91mm |
