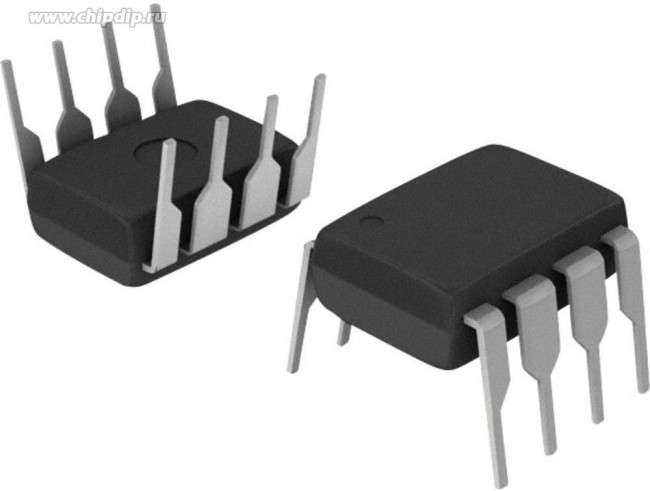

LT1007CN8
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементLT1007 - Operational Amplifier, 1 Func, 50uV Offset-Max, BIPolar, CDIP8
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:49:49 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Low Noise, High Speed Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 126 dB |
| common mode rejection ratio | 110(dB) |
| development kit: | DC417B |
| dual supply voltage (max) | ±15(V) |
| dual supply voltage (min) | ±5(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 2.5 nV/rtHz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gain v/v: | 20 V/uV |
| gbp - gain bandwidth product: | 8 MHz |
| ib - input bias current: | 55 nA |
| input offset voltage | 0.06(mV) |
| input offset voltage drift (uv/°c) | 1 |
| in - input noise current density: | 0.4 pA/rtHz |
| ios - input offset current: | 12 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.055@±15V |
| maximum input offset current | 0.05@±15V |
| maximum input offset current (ua) | 0.05@±15V |
| maximum input offset voltage (mv) | 0.06@±15V |
| maximum operating temperature: | +70 C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 140 |
| minimum cmrr (db) | 110 |
| minimum cmrr range (db) | 105 to 115 |
| minimum dual supply voltage (v) | ±5 |
| minimum operating temperature: | 0 C |
| minimum operating temperature (°c) | 0 |
| minimum psrr (db) | 106 |
| mounting | Through Hole |
| mounting style: | Through Hole |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating supply current: | 2.6 mA |
| operating temperature classification | Commercial |
| operating temp range | 0C to 70C |
| output current per channel: | 20.8 mA |
| package / case: | PDIP-8 |
| package type | PDIP N |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8004165190 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 80 mW |
| pin count | 8 |
| power supply rejection ratio | 106(dB) |
| power supply requirement | Dual |
| power supply type | Dual |
| ppap | No |
| product: | High Speed Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 126 dB |
| rad hardened | No |
| series: | LT1007 |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | Not Required(V) |
| single supply voltage (min) | Not Required(V) |
| single supply voltage (typ) | Not Required(V) |
| slew rate | 2.5(V/us) |
| sr - slew rate: | 2.5 V/us |
| standard package name | DIP |
| subcategory: | Amplifier ICs |
| supplier package | PDIP N |
| supplier temperature grade | Commercial |
| supply voltage - max: | 30 V |
| supply voltage - min: | 10 V |
| technology | Bipolar |
| type | Low Noise Amplifier |
| typical dual supply voltage (v) | ±9|±12 |
| typical gain bandwidth product (mhz) | 8 |
| typical input bias current (ua) | 0.015@±15V |
| typical input noise voltage density (nv/rthz) | 2.8@±15V |
| typical noninverting input current noise density (pa/rthz) | 1.5@±15V |
| typical output resistance (ohm) | 70 |
| typical slew rate (v/us) | 2.5@±15V |
| typical voltage gain (db) | 146.02 |
| unity gain bandwidth product | 8 |
| voltage gain in db | 146.02(dB) |
| vos - input offset voltage: | 20 uV |
