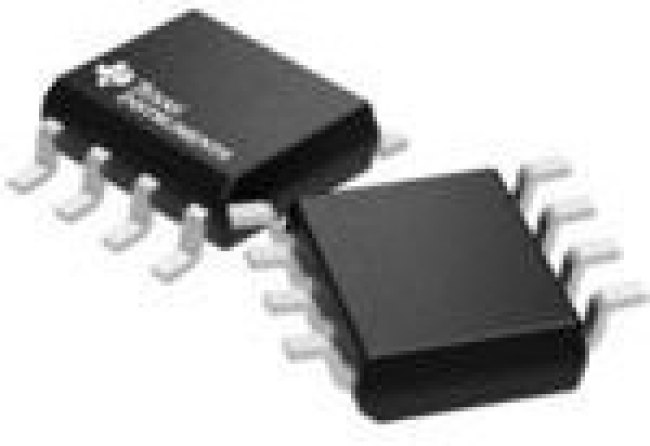

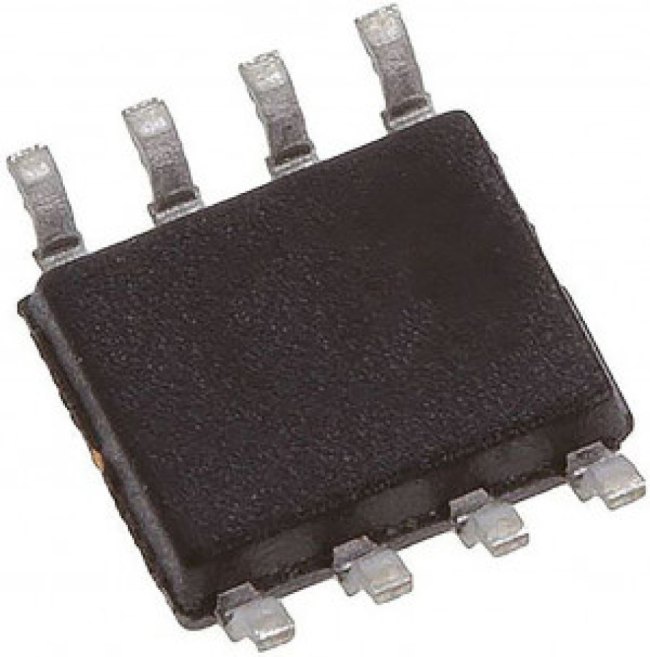

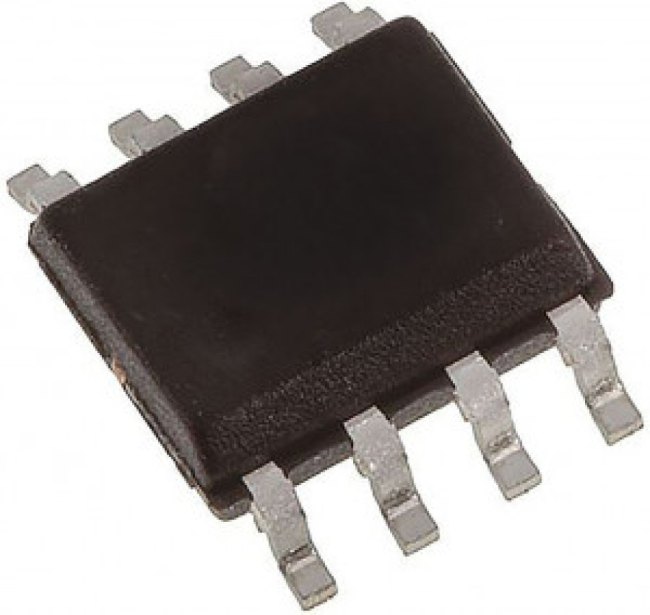

LMV772MA
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Электроэлемент; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Filter Terminals:Smdrohs Compliant: Yes |TEXAS INSTRUMENTS LMV772MA/NOPB.
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:53:35 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose |
| automotive | No |
| base product number | LMV772 -> |
| current - input bias | 0.23pA |
| current - output / channel | 75mA |
| current - supply | 600ВµA (x2 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| gain bandwidth product | 3.5MHz |
| htsus | 8542.33.0001 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.0001@5V |
| maximum input bias current - (ua) | 0.0001@5V |
| maximum input offset current (ua) | 0.0001@5V |
| maximum input offset current - (ua) | 0.0001@5V |
| maximum input offset voltage (mv) | 1@5V |
| maximum input offset voltage - (mv) | 1@5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 05.05.2024 |
| maximum supply current (ma) | 1.9@5V |
| maximum supply current - (ma) | 1.9@5V |
| military | No |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum operating temperature | -40 °C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 82 |
| minimum single supply voltage (v) | 02.07.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating temperature | -40В°C ~ 125В°C |
| operating temperature - (??c) | -40~125 |
| output type | Differential, Rail-to-Rail |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package type | SOIC |
| packaging | Tube |
| партномер | 8002950387 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| rail to rail | Rail to Rail Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | Automotive, AEC-Q100, LMVВ® -> |
| shut down support | No |
| slew rate | 1.4V/Вµs |
| standard package name | SOP |
| supplier device package | 8-SOIC |
| supplier package | SOIC |
| supplier temperature grade | Extended |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 3.5MHz |
| typical gain bandwidth product (mhz) | 03.05.2024 |
| typical gain bandwidth product - (mhz) | 03.05.2024 |
| typical input noise voltage density (nv/rthz) | 12@5V |
| typical input voltage noise density | 12nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.001@5V |
| typical single supply voltage | 3 V, 5 V |
| typical slew rate | 1.4V/µs |
| typical slew rate (v/us) | 1.4@5V |
| typical slew rate - (v/us) | 1.4@5V |
| typical voltage gain | 100 dB |
| typical voltage gain (db) | 100 |
| вес, г | 0.2 |
| voltage - input offset | 250ВµV |
| voltage - supply, single/dual (в±) | 2.7V ~ 5.5V |
| width | 3.9mm |
