| Информация о производителе | |
| Производитель | ON Semiconductor*** |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:05:23 |
| Бренд | ON Semiconductor*** |
| Вес и габариты | |
| cmrr - common mode rejection ratio: | 50 dB |
| common mode rejection ratio | 50(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 50 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1 MHz |
| hts | 8542.33.00.01 |
| ib - input bias current: | 1 nA |
| input bias current | 1(nA) |
| input offset voltage | 9(mV) |
| категория | Электронные компоненты/Микросхемы |
| lead shape | no lead |
| manufacturer: | onsemi |
| manufacturer type | Low Voltage Amplifier |
| maximum input offset current (ua) | 0.001(Typ)@5V@-40C to 85C |
| maximum input offset voltage (mv) | 9@5V@-40C to 85C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 5 |
| maximum supply current (ma) | 0.44@5V |
| minimum cmrr (db) | 50 |
| minimum cmrr range (db) | 50 to 60 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 50 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of elements | 2 |
| operating supply current: | 440 uA |
| operating supply voltage: | 2.7 V to 5 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 160 mA |
| output type | CMOS |

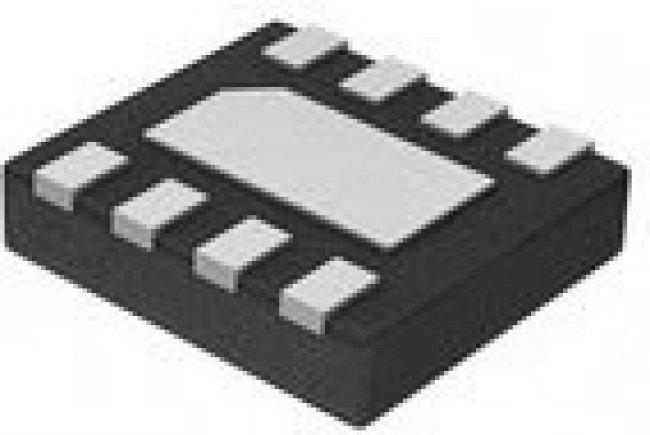

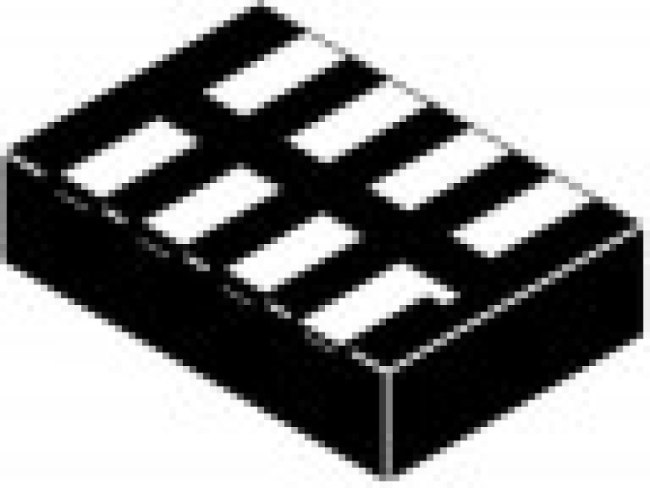

| package/case: | UDFN-8 |
| package height | 0.5(Max) |
| package length | 01.08.2024 |
| package type | uDFN |
| package width | 01.02.2024 |
| packaging | Tape and Reel |
| партномер | 8017646078 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 50(dB) |
| power supply requirement | Single |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| series: | LMV358 |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 5(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3(V) |
| slew rate | 1(V/us) |
| sr - slew rate: | 1 V/us |
| standard package name | DFN |
| subcategory: | Amplifier ICs |
| supplier package | UDFN |
| supplier temperature grade | Industrial |
| supply current | 0.44@5V(mA) |
| supply type: | Single |
| supply voltage - max: | 5 V |
| supply voltage - min: | 2.7 V |
| technology | CMOS |
| type | Low Voltage Amplifier |
| typical gain bandwidth product (mhz) | 1 |
| typical input bias current (ua) | 0.001@5V@-40C to 85C |
| typical input noise voltage density (nv/rthz) | 50@5V |
| typical single supply voltage (v) | 3 |
| typical slew rate (v/us) | 1@5V |
| typical voltage gain (db) | 100 |
| unity gain bandwidth product | 1 |
| вес, г | 0.04 |
| voltage gain in db | 100(dB) |
| vos - input offset voltage: | 9 mV |
