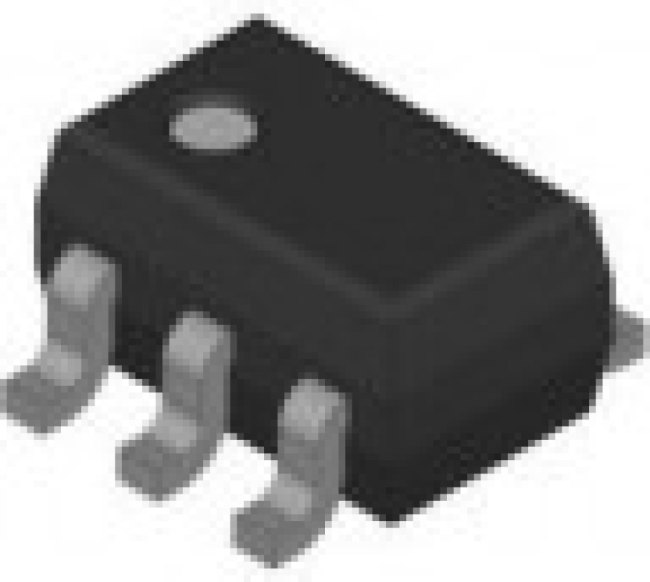

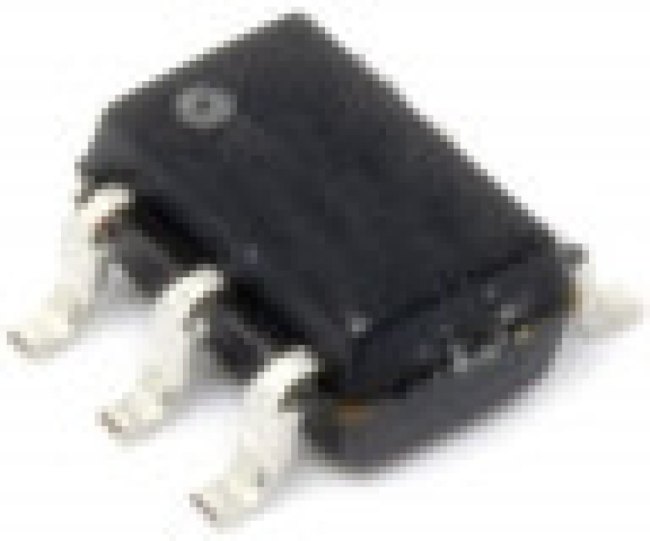

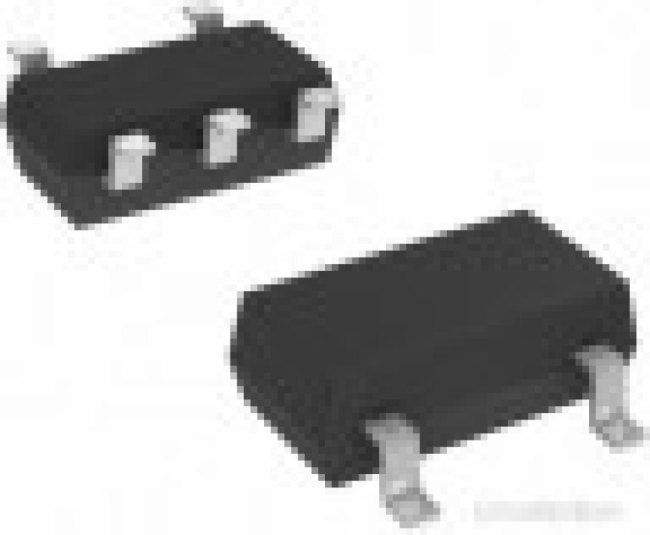

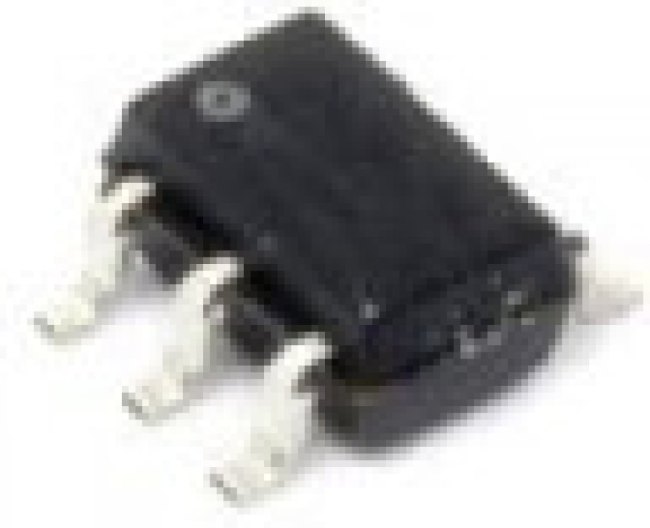

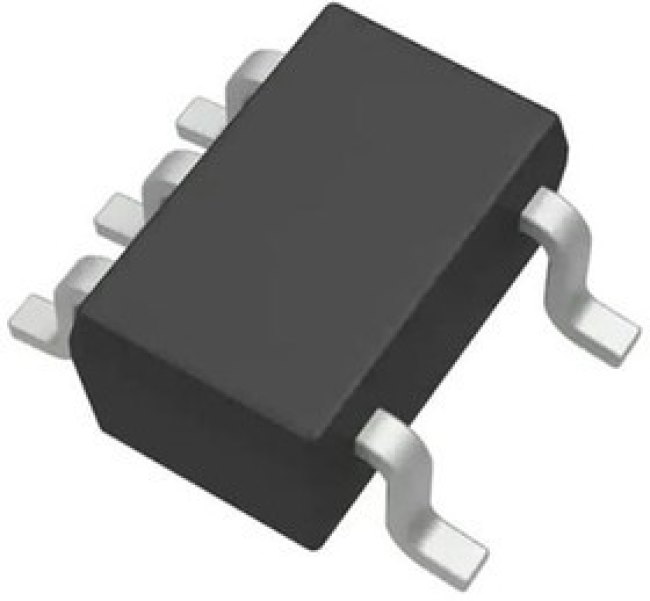

LMV321LICT, Операционный усилитель, 1.3 МГц
Оставить отзыв
В избранноеВ сравнение
Артикул: LMV321LICT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Микросхемы / Усилители и компараторы / Операционные усилителиОперационный усилитель, 1.3 МГц
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:27:37 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio | 55 dB |
| cmrr - common mode rejection ratio: | 75 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 31 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product | 1 MHz |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current | 50 nA |
| ib - input bias current: | 50 nA |
| input offset current | 50nA |
| input offset voltage drift (uv/°c) | 5(Typ) |
| input voltage range | 2.7 → 5.5 V |
| категория | Электронные компоненты/Микросхемы |
| кол-во в упаковке | 3000 |
| Корпус | SC-70-5 |
| lead shape | Gull-wing |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| manufacturer type | Low Power Amplifier |
| maximum input bias current (ua) | 0.06@5V |
| maximum input bias current - (ua) | 0.06@5V |
| maximum input offset current (ua) | 0.03@5V |
| maximum input offset current - (ua) | 0.03@5V |
| maximum input offset voltage (mv) | 7@5V |
| maximum input offset voltage - (mv) | 7@5V |
| maximum input voltage | 5.5 V |
| maximum operating temperature | + 125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.25@5V |
| maximum single supply voltage (v) | 05.05.2024 |
| military | No |
| minimum cmrr (db) | 72 |
| minimum cmrr range (db) | 71 to 75 |
| minimum input voltage | 2.7 V |
| minimum operating temperature | - 40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 4 |
| offset voltage | 7mV |
| operating supply current | 22 uA |
| operating supply current: | 22 uA |
| operating supply voltage | 2.7 V to 6 V |
| operating supply voltage: | 2.7 V to 6 V |
| operating temperature - (??c) | -40~125 |
| output current | 43(Sink)mA, 70(Source)mA |
| output current per channel | 46 mA |
| output current per channel: | 46 mA |
| package / case | SC-70-5 |
| package / case: | SC-70-5 |
| package type | TSSOP |
| packaging | Tape and Reel |
| партномер | 8000253025 |
| part status | active |
| pcb changed | 5 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers - Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps - Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Output |
| series | LMV321L |
| series: | LMV321L |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 0.35 V/us |
| sr - slew rate: | 350 mV/us |
| standard package name | SOT |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supplier package | SC-70 |
| supplier temperature grade | Industrial |
| supply type | Single |
| supply type: | Single |
| supply voltage - max | 6 V |
| supply voltage - max: | 6 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V |
| type | Low Power Amplifier |
| typical gain bandwidth product | 1.3MHz |
| typical gain bandwidth product (mhz) | 01.03.2024 |
| typical gain bandwidth product - (mhz) | 01.03.2024 |
| typical high level output voltage (v) | 4.99 |
| typical input bias current (ua) | 0.027@5V |
| typical input noise voltage density (nv/rthz) | 30@5V |
| typical low level output voltage (v) | 0.3 |
| typical noninverting input current noise density (pa/rthz) | 0.3@5V |
| typical single supply voltage | 2.7 → 5.5 V |
| typical slew rate | 0.6V/µs |
| typical slew rate (v/us) | 0.7@5V |
| typical slew rate - (v/us) | 0.7@5V |
| typical voltage gain | 100 dB |
| typical voltage gain (db) | 100 |
| unit weight | 0.000705 oz |
| вес, г | 0.05 |
| vos - input offset voltage | 3 mV |
| vos - input offset voltage: | 3 mV |
| width | 4.5mm |
