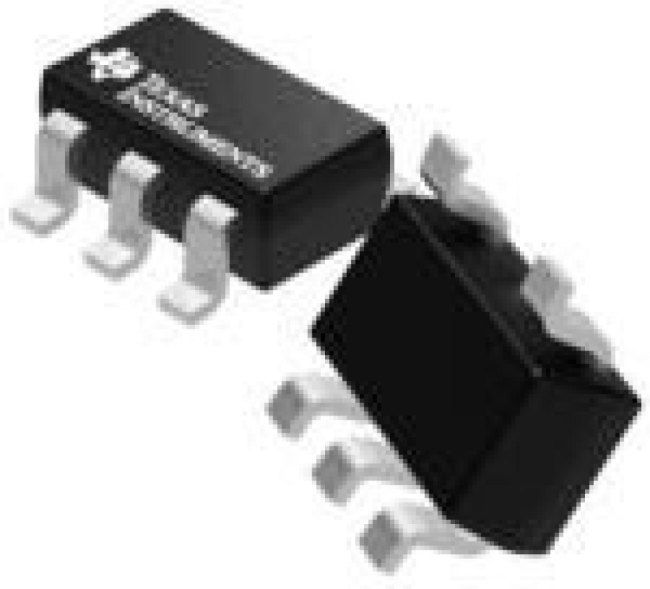

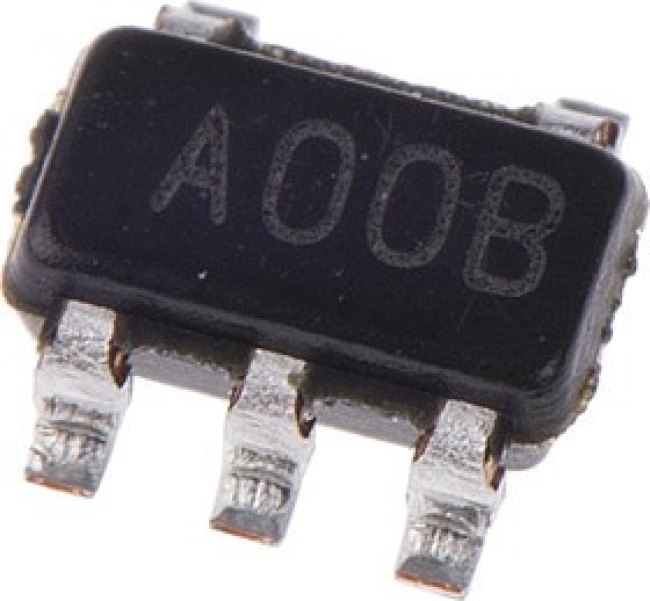

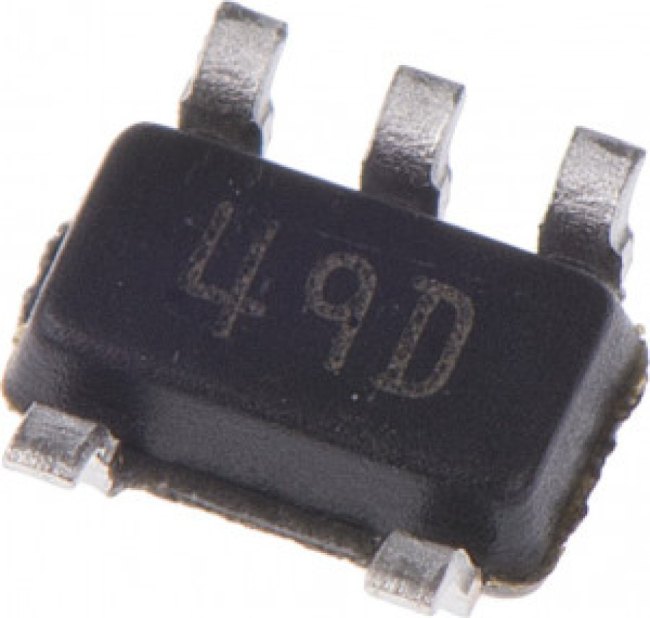

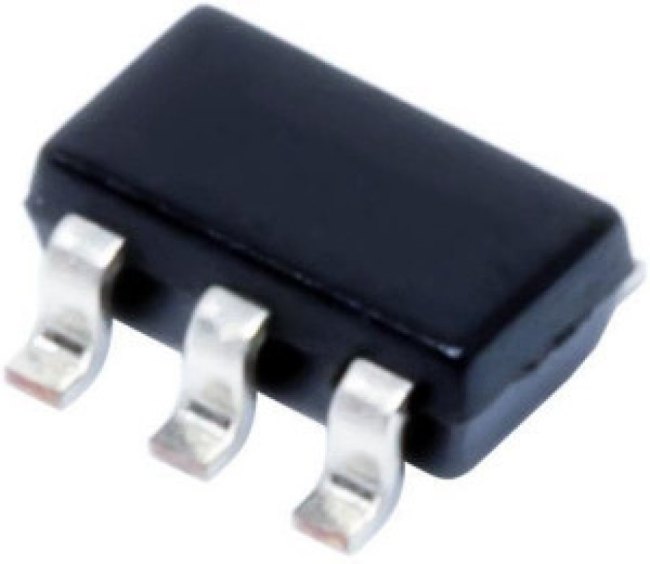

LMC7101BIM5/NOPB, LMC7101BIM5/NOPB, Precision, Op Amp, RRIO, 1MHz, 5 12 V, 5-Pin SOT-23
Оставить отзыв
В избранноеВ сравнение
Артикул: LMC7101BIM5/NOPB
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifiers & Comparators\Op Amps Описание Операционный усилитель высокого класса SOT23-5 Характеристики Категория
Микросхема
Тип
операционный усилитель
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:52:09 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Precision |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 60 dB |
| cmrr - common mode rejection ratio: | 70 dB |
| eccn (us) | ear99 |
| en - input voltage noise density | 37 nV/sqrt Hz at 15 V |
| en - input voltage noise density: | 37 nV/sqrt Hz |
| factory pack quantity | 1000 |
| factory pack quantity: factory pack quantity: | 1000 |
| gbp - gain bandwidth product | 1 MHz |
| gbp - gain bandwidth product: | 1.1 MHz |
| ib - input bias current | 64 pA |
| ib - input bias current: | 64 pA |
| input type | Rail to Rail |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.0015 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Power Amplifier |
| maximum input bias current (ua) | 0.000064@5V@-40C to 85C |
| maximum input offset current (ua) | 0.000032@5V@-40C to 125C |
| maximum input offset voltage (mv) | 7@5V |
| maximum operating temperature | +85 °C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 15.05.2024 |
| maximum supply current (ma) | 0.85@5V |
| minimum cmrr (db) | 60 |
| minimum cmrr range (db) | 60 to 65 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 65 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 500 uA |
| operating supply voltage: | 3 V, 5 V, 15 V |
| output current per channel | 50 mA |
| output current per channel: | 24 mA |
| output type | Rail to Rail |
| output type: | Rail-to-Rail |
| package / case | SOT-23-5 |
| package / case: | SOT-23-5 |
| package type | SOT-23 |
| packaging | Reel |
| партномер | 8939419135 |
| part status | LTB |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 65 dB |
| psrr - power supply rejection ratio: | 65 dB |
| rail to rail | Rail to Rail Input/Output |
| rohs | Details |
| series | LMC7101 |
| series: | LMC7101 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 1 V/us |
| sr - slew rate: | 1.1 V/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supply current per channel | 850 uA |
| supply type: | Single |
| supply voltage - max | 15.5 V |
| supply voltage - max: | 15.5 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V |
| technology | CMOS |
| technology: | CMOS |
| type | Low Power Amplifier |
| typical gain bandwidth product | 1MHz |
| typical gain bandwidth product (mhz) | 1 |
| typical input bias current (ua) | 0.000001@5V |
| typical input noise voltage density (nv/rthz) | 37@15V |
| typical input voltage noise density | 37nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.0015@15V |
| typical output current (ma) | 35(Max) |
| typical single supply voltage | 5 → 12 V |
| typical slew rate | 1V/µs |
| typical slew rate (v/us) | 1@5V |
| typical voltage gain | 110.6 dB |
| typical voltage gain (db) | 110.63 |
| вес, г | 4 |
| voltage gain db: | 110.63 dB |
| vos - input offset voltage | 7 mV |
| vos - input offset voltage: | 9 mV |
| width | 1.6mm |
