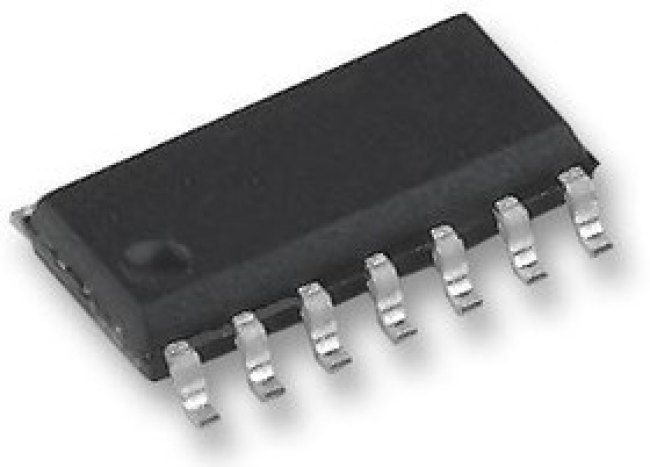

LMC6494BEM/NOPB, Операционный усилитель, 4 Усилителя, 1.5 МГц, 1.3 В/мкс, 2.5В до 15.5В, SOIC, 14 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe LMC6494BEM/NOPB is a quad CMOS Operational Amplifier with rail-to-rail input and output. The LMC6494 amplifier was specifically developed for single supply applications that operate from -40 to +125°C. An unique design topology enables the LMC6494 common-mode voltage range to accommodate input signals beyond the rails. This eliminates non-linear output errors due to input signals exceeding a traditionally limited common-mode voltage range. The LMC6494 signal range has a high CMRR of 82dB for excellent accuracy in non-inverting circuit configurations. The LMC6494 rail-to-rail input is complemented by rail-to-rail output swing. This assures maximum dynamic signal range which is particularly important in 5V systems. Ultra-low input current of 150fA and 120dB open loop gain provide high accuracy and direct interfacing with high impedance sources. • Rail-to-rail input common-mode voltage range, ensured over temperature• Rail-to-rail output swing within 20mV of supply rail, 100kR load• 82dB PSRR• 500µA/amplifier Low supply current (at VS=5V)• 1.0µV/°C Low offset voltage drift• Green product and no Sb/Br
