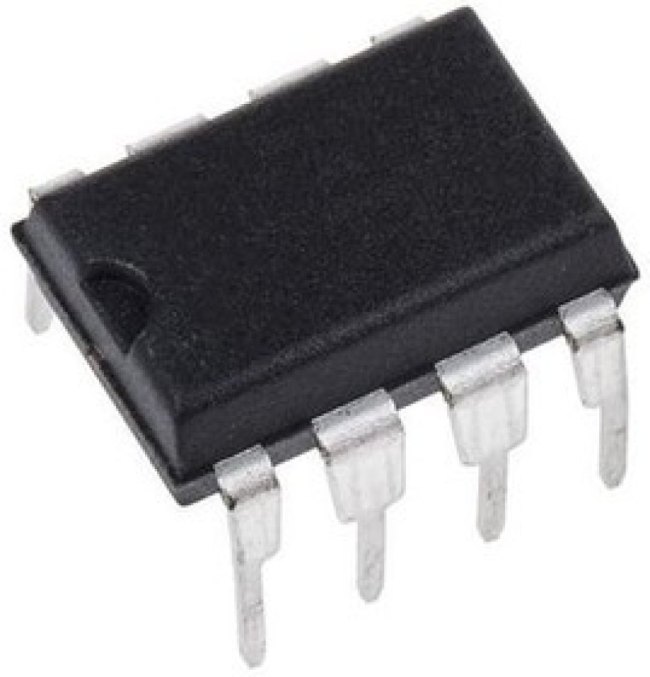

LM741CN/NOPB
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps Описание Микросхема: операционный усилитель, 1МГц, 10-36В, Ch: 1, DIP8, туба Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
THT
Кол-во каналов
1
Мин.напряжение питания, В
10
Макс.напряжение питания, В
36
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:38:59 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose |
| base product number | LM741 -> |
| cmrr - common mode rejection ratio | 70 dB to 90 dB |
| common mode rejection ratio | 70(dB) |
| current - input bias | 80nA |
| current - output / channel | 25mA |
| current - supply | 1.7mA |
| dual supply voltage | +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage (max) | ±18(V) |
| dual supply voltage (min) | ±10(V) |
| dual supply voltage (typ) | ±15(V) |
| eccn | EAR99 |
| en - input voltage noise density | 30 nV/sqrt Hz |
| factory pack quantity | 40 |
| gain bandwidth product | 1.5MHz |
| gbp - gain bandwidth product | 1 MHz |
| height | 3.3 mm |
| htsus | 8542.33.0001 |
| ib - input bias current | 80 nA |
| input bias current | 500(nA) |
| input offset voltage | 6(mV) |
| категория | Электронные компоненты/Микросхемы |
| length | 9.27 mm |
| manufacturer | Texas Instruments |
| manufacturer product page | http://www.ti.com/general/docs/suppproductinfo.tsp |
| maximum dual supply voltage | +/-18 V |
| maximum input offset current | 0.2@±15V |
| maximum operating temperature | +70 C |
| minimum dual supply voltage | +/-5 V |
| minimum operating temperature | 0 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style | Through Hole |
| mounting type | Through Hole |
| number of channels | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements | 1 |
| operating supply current | 1.7 mA |
| operating supply voltage | 10 V to 44 V |
| operating temperature | 0В°C ~ 70В°C |
| operating temperature classification | Commercial |
| operating temp range | 0C to 70C |
| output current per channel | 25 mA |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package type | MDIP |
| packaging | Tube |
| партномер | 8005750719 |
| pd - power dissipation | 500 mW(1/2 W) |
| pin count | 8 |
| power dissipation | 0.5(W) |
| power supply rejection ratio | 77(dB) |
| power supply requirement | Dual |
| power supply type | Dual |
| product | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| rad hardened | No |
| rail/rail i/o type | No |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | LM741 |
| shutdown | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | Not Required(V) |
| single supply voltage (min) | Not Required(V) |
| single supply voltage (typ) | Not Required(V) |
| slew rate | 0.5V/Вµs |
| sr - slew rate | 0.5 V/us |
| supplier device package | 8-PDIP |
| supply current | 2.8@±15V(mA) |
| supply type | Dual |
| supply voltage - max | 44 V |
| supply voltage - min | 10 V |
| technology | Bipolar |
| typical dual supply voltage | ±12 V, ±15 V, ±9 V |
| typical gain bandwidth product | 1MHz |
| typical input voltage noise density | 30nV/√Hz |
| typical slew rate | 0.5V/us |
| typical voltage gain | 106 dB |
| unit weight | 0.018646 oz |
| voltage gain db | 106.02 dB |
| voltage gain in db | 106.02(dB) |
| voltage - input offset | 2mV |
| voltage - supply, single/dual (в±) | 10V ~ 36V, В±5V ~ 18V |
| vos - input offset voltage | 3 mV |
| width | 6.35mm |
