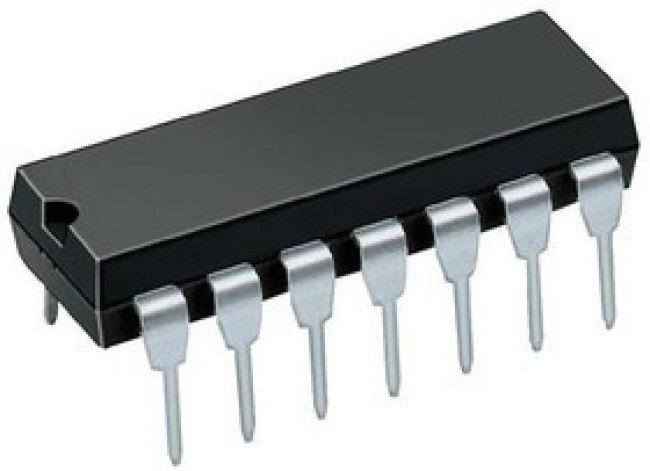

LM3900N, Operational Amplifiers - Op Amps Quad
Оставить отзыв
В избранноеВ сравнение
Артикул: LM3900N
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op Amps Описание IC: operational amplifier; 2.5MHz; Ch: 4; DIP14 Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
THT
Кол-во каналов
4
Мин.напряжение питания, В
3
Макс.напряжение питания, В
32
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:21:39 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | General Purpose Amplifier |
| base product number | LM3900 -> |
| current - input bias | 30nA |
| current - output / channel | 10mA |
| current - supply | 6.2mA (x4 Channels) |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn | EAR99 |
| factory pack quantity | 25 |
| factory pack quantity: factory pack quantity: | 25 |
| gain bandwidth product | 2.5MHz |
| gbp - gain bandwidth product | 2.5 MHz |
| gbp - gain bandwidth product: | 2.5 MHz |
| height | 4.57 mm |
| htsus | 8542.33.0001 |
| ib - input bias current | 200 nA |
| ib - input bias current: | 200 nA |
| категория | Электронные компоненты/Микросхемы |
| length | 19.3 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage | +/-16 V |
| maximum dual supply voltage: | +/-16 V |
| maximum operating temperature | +70 C |
| maximum operating temperature: | +70 C |
| minimum dual supply voltage | +/-2.2 V |
| minimum dual supply voltage: | +/-2.2 V |
| minimum operating temperature | 0 C |
| minimum operating temperature: | 0 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of circuits | 4 |
| operating supply current | 10 mA |
| operating supply current: | 1.55 mA |
| operating supply voltage | 4.5 V to 32 V, +/-2.2 V to+/-16 V |
| operating supply voltage: | 4.5 V to 32 V, +/-2.2 V to+/-16 V |
| operating temperature | 0В°C ~ 70В°C |
| package | Tube |
| package / case | 14-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-14 |
| package type | PDIP |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005000484 |
| pd - power dissipation | 1150 mW |
| pd - power dissipation: | 1150 mW |
| pin count | 14 |
| power supply type | Dual, Single |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 70 dB(Typ) |
| psrr - power supply rejection ratio: | 70 dB(Typ) |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | LM3900 |
| series: | LM3900 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| slew rate | 20V/Вµs |
| sr - slew rate | 20 V/us |
| sr - slew rate: | 20 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 14-PDIP |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 32 V |
| supply voltage - max: | 32 V, +/-16 V |
| supply voltage - min | 4.5 V |
| supply voltage - min: | 4.5 V, +/-2.2 V |
| technology | Bipolar |
| technology: | Bipolar |
| typical gain bandwidth product | 2.5MHz |
| typical single supply voltage | 32 V |
| unit weight | 0.032734 oz |
| вес, г | 0.93 |
| voltage gain db | 68.94 dB |
| voltage gain db: | 68.94 dB |
| voltage - supply, single/dual (в±) | 4.5V ~ 32V, В±2.2V ~ 16V |
| width | 6.35 mm |
