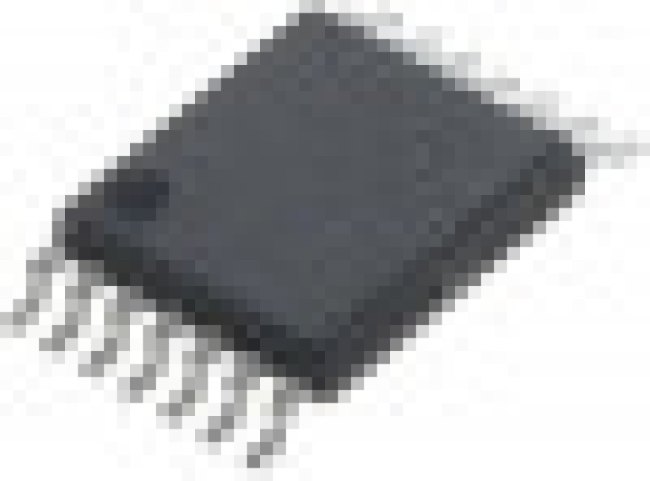

LM324PT, Op Amp Quad Low Power Amplifier ±15V/30V 14-Pin TSSOP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: LM324PT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductor - IC > Linear > Amplifier - Operational Описание IC: operational amplifier; 1.3MHz; 3?32V; Ch: 4; TSSOP14; reel,tape Характеристики Категория
Микросхема
Тип
операционный усилитель
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:26:19 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| base product number | LM324 -> |
| cmrr - common mode rejection ratio | 70 dB |
| cmrr - common mode rejection ratio: | 80 dB |
| current - input bias | 20nA |
| current - output / channel | 30mA |
| current - supply | 1.5mA |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V, +/-12 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V, +/-12 V |
| eccn | EAR99 |
| eccn (us) | EAR99 |
| en - input voltage noise density | 40 nV/sqrt Hz |
| en - input voltage noise density: | 40 nV/sqrt Hz |
| eu rohs | Compliant |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 2500 |
| gain bandwidth product | 800kHz |
| gbp - gain bandwidth product | 1.3 MHz |
| gbp - gain bandwidth product: | 1.3 MHz |
| height | 1 mm |
| htsus | 8542.33.0001 |
| ib - input bias current | 150 nA |
| ib - input bias current: | 100 nA |
| input offset voltage drift (uv/°c) | 30 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| length | 5 mm |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage | +/-15 V |
| maximum dual supply voltage: | +/-15 V |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.1@5V |
| maximum input offset current (ua) | 0.02@5V |
| maximum input offset voltage (mv) | 7@5V |
| maximum operating temperature | +70 C |
| maximum operating temperature: | +70 C |
| maximum operating temperature (°c) | 70 |
| maximum quiescent current (ma) | 1.2@5V |
| maximum single supply voltage (v) | 30 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum dual supply voltage | +/-1.5 V |
| minimum dual supply voltage: | +/-1.5 V |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature | 0 C |
| minimum operating temperature: | 0 C |
| minimum operating temperature (°c) | 0 |
| minimum single supply voltage (v) | 3 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Surface Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of circuits | 4 |
| operating supply current | 1.2 mA |
| operating supply current: | 1.5 mA |
| operating supply voltage | 3 V to 30 V, +/-1.5 V to+/-15 V |
| operating supply voltage: | 3 V to 30 V, +/-1.5 V to+/-15 V |
| operating temperature | 0В°C ~ 70В°C |
| output current per channel | 40 mA |
| output current per channel: | 40 mA |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 14-TSSOP (0.173"", 4.40mm Width) |
| package / case: | TSSOP-14 |
| package type | TSSOP |
| packaging | Tube |
| партномер | 8007313835 |
| part status | Active |
| pcb changed | 14 |
| pd - power dissipation | 400 mW |
| pd - power dissipation: | 400 mW |
| pin count | 14 |
| power supply type | Dual|Single |
| ppap | No |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | LM324 |
| series: | LM324 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 0.4V/Вµs |
| sr - slew rate | 0.4 V/us |
| sr - slew rate: | 400 mV/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier device package | 14-TSSOP |
| supplier package | TSSOP |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 30 V |
| supply voltage - max: | 30 V, +/-15 V |
| supply voltage - min | 3 V |
| supply voltage - min: | 3 V, +/-1.5 V |
| technology | Bipolar |
| technology: | Bipolar |
| type | Low Power Amplifier |
| typical dual supply voltage | ±12 V, ±3 V, ±5 V, ±9 V |
| typical dual supply voltage (v) | ±3|±5|±9|±12 |
| typical gain bandwidth product | 1.3MHz |
| typical gain bandwidth product (mhz) | 01.03.2024 |
| typical high level output voltage (v) | 28 |
| typical input bias current (ua) | 0.02@5V |
| typical input noise voltage density (nv/rthz) | 40@30V |
| typical input voltage noise density | 40nV/√Hz |
| typical low level output voltage (v) | 0.005 |
| typical output current (ma) | 40@15V |
| typical single supply voltage | 5 → 28 V |
| typical slew rate | 0.4V/µs |
| typical slew rate (v/us) | 0.4@15V |
| typical voltage gain | 100 dB |
| typical voltage gain (db) | 100 |
| вес, г | 0.5 |
| voltage gain db | 100 dB |
| voltage gain db: | 100 dB |
| voltage - input offset | 2mV |
| voltage - supply, single/dual (в±) | 3V ~ 30V, В±1.5V ~ 15V |
| vos - input offset voltage | 7 mV |
| vos - input offset voltage: | 7 mV |
| width | 4.4 mm |
