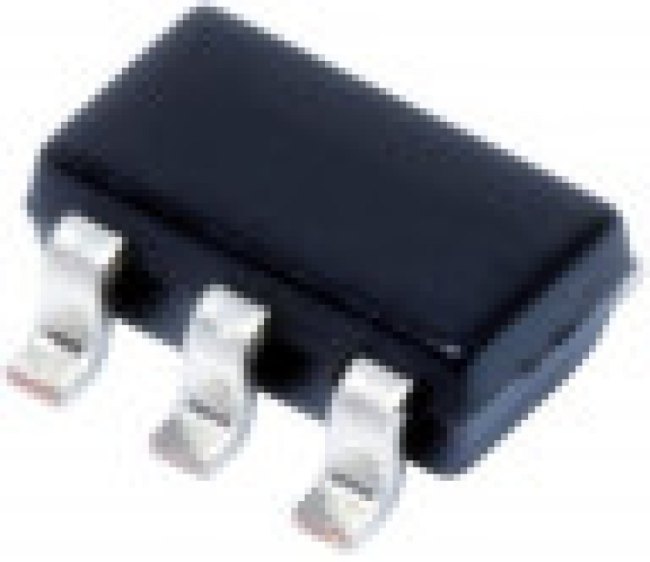

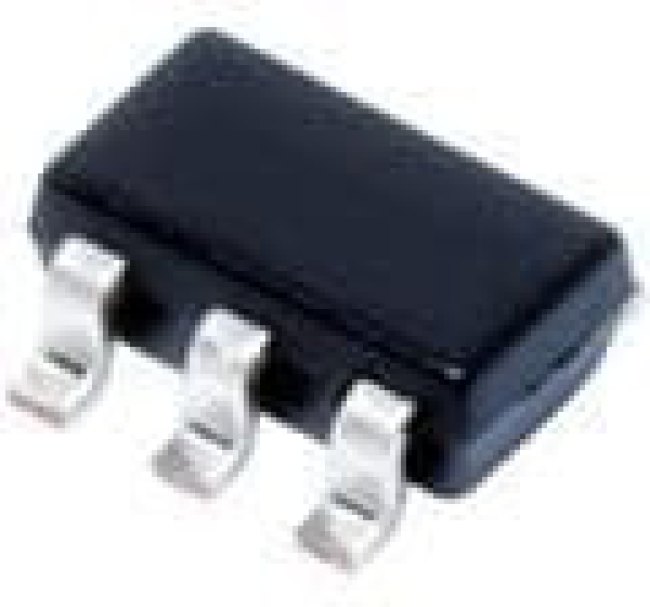

LM321LVIDBVR, SOT-23-5 Operational Amplifier
Оставить отзыв
В избранноеВ сравнение
Артикул: LM321LVIDBVR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Operational Amplifiers - Op Amps 1-Channel industry standard low voltage operational amplifier 5-SOT-23 -40 to 125
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:24:22 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Low Voltage Amplifier |
| amplifier type: | Low Voltage Amplifier |
| cmrr - common mode rejection ratio | 92 dB |
| cmrr - common mode rejection ratio: | 92 dB |
| common mode rejection ratio | 63(dB) |
| development kit | OPAMPEVM |
| development kit: | OPAMPEVM |
| dual supply voltage (max) | ±2.75(V) |
| dual supply voltage (min) | ±1.35(V) |
| en - input voltage noise density | 40 nV/sqrt Hz |
| en - input voltage noise density: | 40 nV/sqrt Hz |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 3000 |
| features | Cost Optimized, EMI Hardened, Standard Amps |
| features: | Cost Optimized, EMI Hardened, Standard Amps |
| gbp - gain bandwidth product | 1 MHz |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current | 15 pA |
| ib - input bias current: | 15 pA |
| input offset voltage | 3(mV) |
| ios - input offset current | 5 pA |
| ios - input offset current: | 5 pA |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum input offset current | 0.000005(TYP)@5.5V |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of elements | 1 |
| operating supply current | 90 uA |
| operating supply current: | 90 uA |
| operating temperature classification | AUTOMOTIVEC |
| operating temp range | -40C to 125C |
| output current per channel | 40 mA |
| output current per channel: | 40 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package / case | SOT-23-5 |
| package / case: | SOT-23-5 |
| package type | SOT-23 |
| packaging | Cut Tape or Reel |
| партномер | 8017626665 |
| pin count | 5 |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Single/Dual |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 100 dB |
| psrr - power supply rejection ratio: | 100 dB |
| rad hardened | No |
| series | LM321LV |
| series: | LM321LV |
| settling time | 5(us) |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 5.5(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 1.5(V/us) |
| sr - slew rate | 1.5 V/us |
| sr - slew rate: | 1.5 V/us |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V |
| technology | CMOS |
| technology: | CMOS |
| thd plus noise | 0.005% |
| thd plus noise: | 0.005% |
| unity gain bandwidth product | 1 |
| вес, г | 0.03 |
| voltage gain in db | 125(dB) |
| vos - input offset voltage | 3 mV |
| vos - input offset voltage: | 3 mV |
