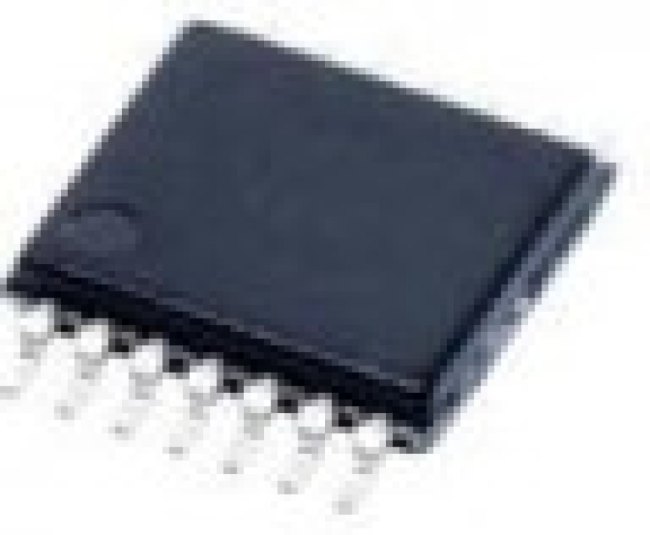

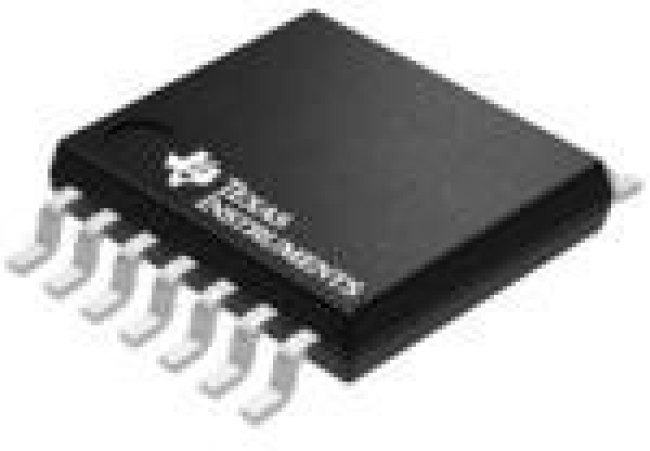

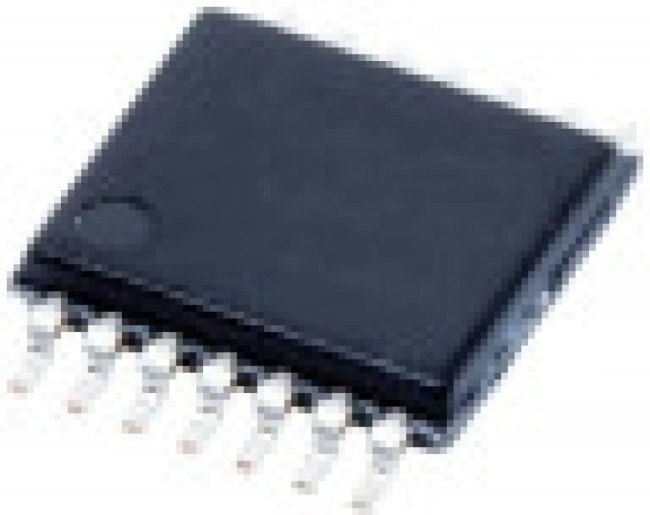

LM2902KAVQPWRQ1, Op Amp Quad High Gain Amplifier ±16V/32V Automotive 14-Pin TSSOP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: LM2902KAVQPWRQ1
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Quad High Gain Amplifier ±16V/32V Automotive 14-Pin TSSOP T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:28:20 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | High Gain Amplifier |
| amplifier type: | High Gain Amplifier |
| automotive | Yes |
| cmrr - common mode rejection ratio | 50 dB to 80 dB |
| cmrr - common mode rejection ratio: | 80 dB |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn (us) | ear99 |
| en - input voltage noise density | 35 nV/sqrt Hz |
| en - input voltage noise density: | 35 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 2000 |
| factory pack quantity: factory pack quantity: | 2000 |
| features | Standard Amps |
| features: | Standard Amps |
| gbp - gain bandwidth product | 1.2 MHz |
| gbp - gain bandwidth product: | 1.2 MHz |
| ib - input bias current | 250 nA |
| ib - input bias current: | 250 nA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | High Gain Amplifier |
| maximum dual supply voltage | +/-16 V |
| maximum dual supply voltage: | +/-16 V |
| maximum dual supply voltage (v) | ±16 |
| maximum input bias current (ua) | 0.25 5V |
| maximum input offset current (ua) | 0.05 5V |
| maximum input offset voltage (mv) | 2 32V |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.7(Typ)5V |
| maximum single supply voltage (v) | 32 |
| minimum cmrr (db) | 60 |
| minimum cmrr range (db) | 60 to 65 |
| minimum dual supply voltage | +/-1.5 V |
| minimum dual supply voltage: | +/-1.5 V |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 3 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current | 175 uA |
| operating supply current: | 1.4 mA |
| operating supply voltage | 3 V to 32 V, +/-1.5 V to+/-16 V |
| operating supply voltage: | 3 V to 32 V, +/-1.5 V to+/-16 V |
| output current per channel | 30 mA |
| output current per channel: | 20 mA |
| package / case | TSSOP-14 |
| package/case: | TSSOP-14 |
| packaging | Tape and Reel |
| партномер | 8002060353 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | Yes |
| process technology | Bipolar |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| qualification | AEC-Q100 |
| qualification: | AEC-Q100 |
| series | LM2902-Q1 |
| series: | LM2902-Q1 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 0.5 V/us |
| sr - slew rate: | 500 mV/us |
| standard package name | SOP |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supplier package | TSSOP |
| supplier temperature grade | Automotive |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 32 V |
| supply voltage - max: | 32 V |
| supply voltage - min | 3 V |
| supply voltage - min: | 3 V |
| technology | Bipolar |
| technology: | Bipolar |
| type | High Gain Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12|±15 |
| typical gain bandwidth product (mhz) | 01.02.2024 |
| typical input bias current (ua) | 0.02 5V |
| typical input noise voltage density (nv/rthz) | 35±15V |
| typical output current (ma) | 30 15V |
| typical single supply voltage (v) | 5|9|12|15|18|24|28 |
| typical slew rate (v/us) | 0.5±15V |
| typical voltage gain (db) | 100 |
| vcm - common mode voltage | Negative Rail to Positive Rail-1.5 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1.5 V |
| вес, г | 0.5 |
| voltage gain db | 100 dB |
| voltage gain db: | 100 dB |
| vos - input offset voltage | 2 mV |
| vos - input offset voltage: | 7 mV |
