| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:39:13 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | Operational Amplifier |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 80 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 40 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1.3 MHz |
| ib - input bias current: | 100 nA |
| input offset voltage drift (uv/°c) | 30 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | no lead |
| manufacturer: | STMicroelectronics |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.1@5V |
| maximum input offset current (ua) | 0.02@5V |
| maximum input offset voltage (mv) | 5@5V |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum quiescent current (ma) | 1.2@5V |
| maximum single supply voltage (v) | 30 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum dual supply voltage: | +/-1.5 V |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 3 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 1.5 mA |
| operating supply voltage: | 3 V to 30 V, +/-1.5 V to+/-15 V |
| output current per channel: | 40 mA |

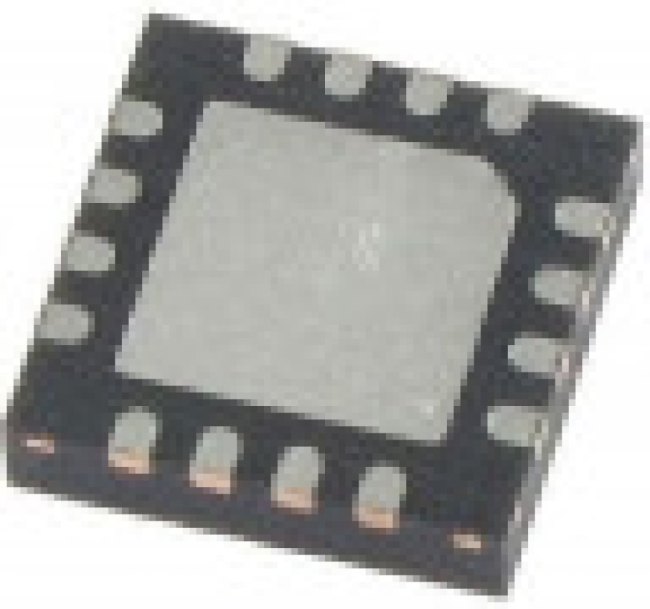

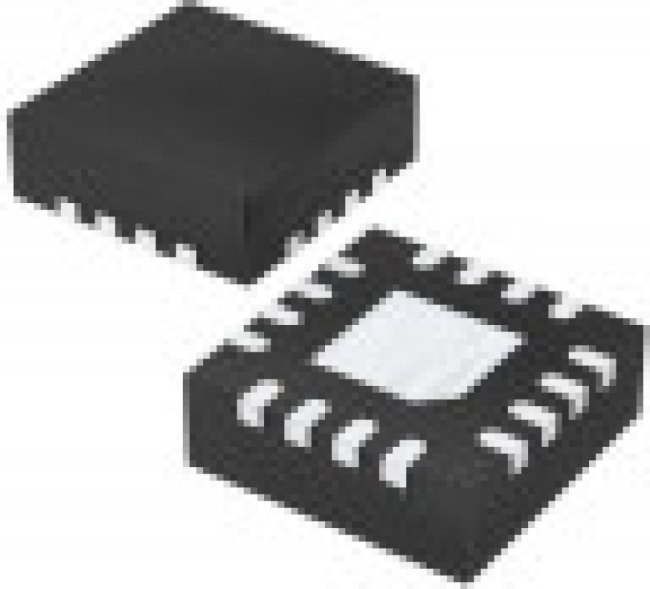

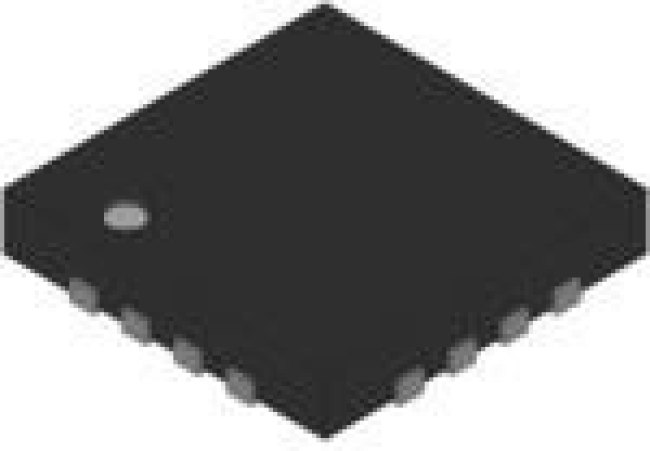

| package / case: | QFN-16 |
| package type | QFN16 |
| packaging | Tape and Reel |
| packaging: | Tube |
| партномер | 8005924436 |
| part status | active |
| pcb changed | 16 |
| pin count | 16 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| series: | LM224 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 400 mV/us |
| standard package name | QFN |
| subcategory: | Amplifier ICs |
| supplier package | QFN EP |
| supply type: | Single, Dual |
| supply voltage - max: | 30 V, +/-15 V |
| supply voltage - min: | 3 V, +/-1.5 V |
| type | Low Power Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12 |
| typical gain bandwidth product | 1.3MHz |
| typical gain bandwidth product (mhz) | 01.03.2024 |
| typical high level output voltage (v) | 28 |
| typical input bias current (ua) | 0.02@5V |
| typical input noise voltage density (nv/rthz) | 40@30V |
| typical low level output voltage (v) | 0.005 |
| typical output current (ma) | 40@15V |
| typical single supply voltage | 3 → 30 V |
| typical slew rate (v/us) | 0.4@15V |
| typical voltage gain (db) | 100 |
| vos - input offset voltage: | 5 mV |
