| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:22:16 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | High Gain Amplifier |
| amplifier type: | Operational Amplifier |
| cmrr - common mode rejection ratio | 70 dB to 80 dB |
| cmrr - common mode rejection ratio: | 80 dB |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| en - input voltage noise density | 35 nV/sqrt Hz |
| en - input voltage noise density: | 35 nV/sqrt Hz |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product | 1.2 MHz |
| gbp - gain bandwidth product: | 1.2 MHz |
| height | 1.58 mm |
| ib - input bias current | 80 nA |
| ib - input bias current: | 150 nA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| length | 8.65 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage | +/-16 V |
| maximum dual supply voltage: | 16 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage | +/-1.5 V |
| minimum dual supply voltage: | 1.5 V |
| minimum operating temperature | -25 C |
| minimum operating temperature: | -25 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current | 175 uA |
| operating supply current: | 1.4 mA |
| operating supply voltage | 3 V to 32 V, +/-1.5 V to+/-16 V |
| operating supply voltage: | 3 V to 32 V |
| output current per channel | 30 mA |
| output current per channel: | 20 mA |
| package / case | SOIC-14 |
| package / case: | SOIC-14 |
| package type | SOIC |
| packaging | Reel |
| packaging: | Tube |
| партномер | 8002950928 |
| pin count | 14 |
| power supply type | Dual, Single |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | No |
| rohs | Details |

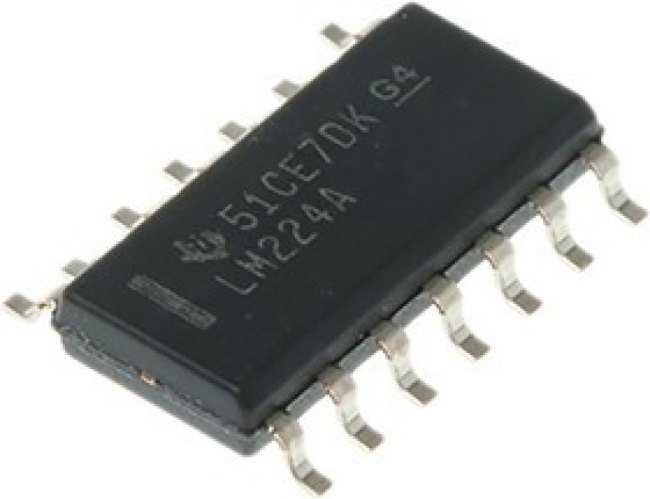

| series | LM224A |
| series: | LM224A |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| sr - slew rate | 0.5 V/us |
| sr - slew rate: | 500 mV/us |
| subcategory: | Amplifier ICs |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 32 V |
| supply voltage - max: | 32 V |
| supply voltage - min | 3 V |
| supply voltage - min: | 3 V |
| technology | Bipolar |
| technology: | Bipolar |
| typical dual supply voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| typical gain bandwidth product | 1.2MHz |
| typical input voltage noise density | 35nV/√Hz |
| typical single supply voltage | 5 → 28 V |
| typical slew rate | 0.5V/µs |
| typical voltage gain | 100 dB |
| unit weight | 0.004564 oz |
| vcm - common mode voltage | Negative Rail to Positive Rail-1.5 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1.5 V |
| вес, г | 0.3 |
| voltage gain db | 100 dB |
| voltage gain db: | 100 dB |
| vos - input offset voltage | 2 mV |
| vos - input offset voltage: | 5 mV |
| width | 3.91 mm |
