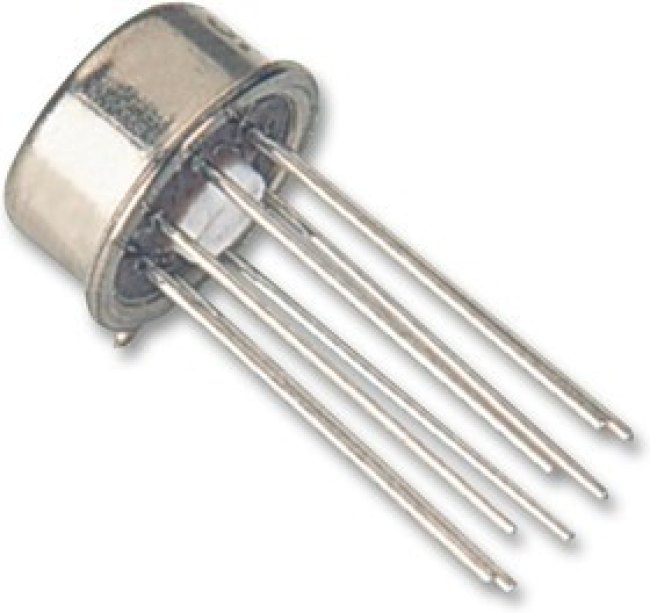

LM101AH/NOPB, Операционный усилитель, 1 Усилитель, 80 МГц, 0.5 В/мкс, 10В до 44В, TO-99, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe LM101AH/NOPB is a general purpose Operational Amplifier features improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents and a redesign of the biasing circuitry reduces the temperature drift of input current. This amplifier offers many features which make its application nearly foolproof - overload protection on the input and output, no latch-up when the common mode range is exceeded and freedom from oscillations and compensation with a single 30pF capacitor. It has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application. For example, in low frequency circuits it can be overcompensated for increased stability margin or the compensation can be optimized to give more than a factor of ten improvement in high frequency performance for most applications. • 3mV Offset voltage (maximum over-temperature)• 100nA Input current (maximum over-temperature)• 20nA Offset current (maximum over-temperature)• Specified drift characteristics• Offsets specified over entire common mode and supply voltage ranges• Slew rate of 10V/µs as a summing amplifier• Green product and no Sb/Br
