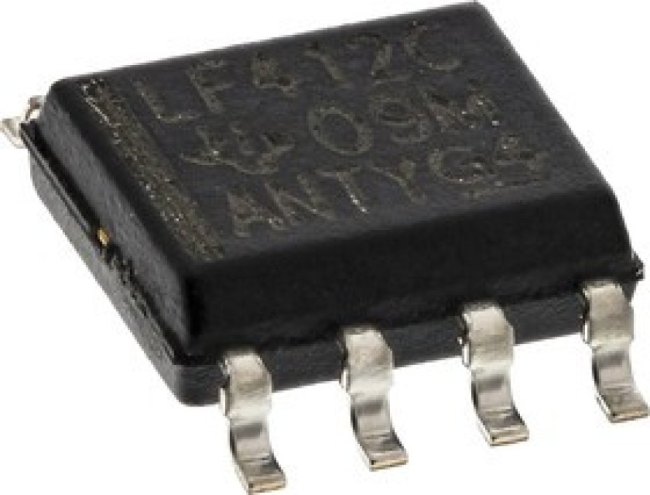

LF412CD
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементOP-AMP, DUAL, 3MHZ, 13V/US, SOIC-8; No. of Amplifiers:2 Amplifier; Bandwidth:3MHz; Slew Rate:13V/Вµs; Supply Voltage Range:В± 3.5V to В± 18V; Amplifier Case Style:SOIC; No. of Pins:8Pins; Operating Temperature Min:0В°C; Oper
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:41:02 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | High Speed Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 100 dB |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| en - input voltage noise density: | 18 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 75 |
| gbp - gain bandwidth product: | 3 MHz |
| ib - input bias current: | 200 pA |
| in - input noise current density: | 0.01 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage: | +/-18 V |
| maximum input bias current - (ua) | 0.0002@??15V |
| maximum input offset current - (ua) | 0.0001@??15V |
| maximum input offset voltage - (mv) | 3@??15V |
| maximum operating temperature | +70 °C |
| maximum operating temperature: | +70 C |
| maximum power dissipation - (mw) | 500 |
| maximum supply current - (ma) | 6.8@??15V |
| military | No |
| minimum dual supply voltage: | +/-3.5 V |
| minimum operating temperature | 0 °C |
| minimum operating temperature: | 0 C |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 4.5 mA |
| operating supply voltage: | 7 V to 36 V, +/-3.5 V to+/-18 V |
| operating temperature - (??c) | 0~70 |
| output current per channel: | 25 mA |
| package/case: | SOIC-8 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002954048 |
| pd - power dissipation: | 500 mW(1/2 W) |
| pin count | 8 |
| power supply type | Dual |
| process technology | BiFET |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | No |
| series: | LF412 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 13 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Dual |
| supply voltage - max: | 40 V |
| supply voltage - min: | 10 V |
| technology: | BiFET |
| typical dual supply voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| typical gain bandwidth product | 3MHz |
| typical gain bandwidth product - (mhz) | 3 |
| typical input voltage noise density | 18nV/√Hz |
| typical slew rate | 13V/µs |
| typical slew rate - (v/us) | 13@??15V |
| typical voltage gain | 106 dB |
| vcm - common mode voltage: | Negative Rail+4 V to Positive Rail-4 V |
| вес, г | 0.181 |
| voltage gain db: | 106.02 dB |
| vos - input offset voltage: | 3 mV |
| width | 3.91mm |
