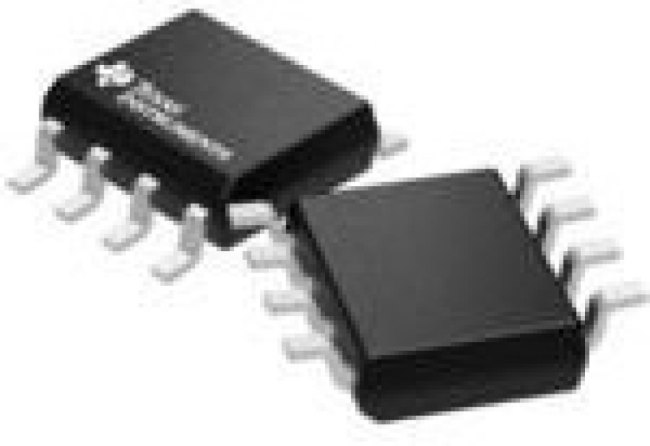

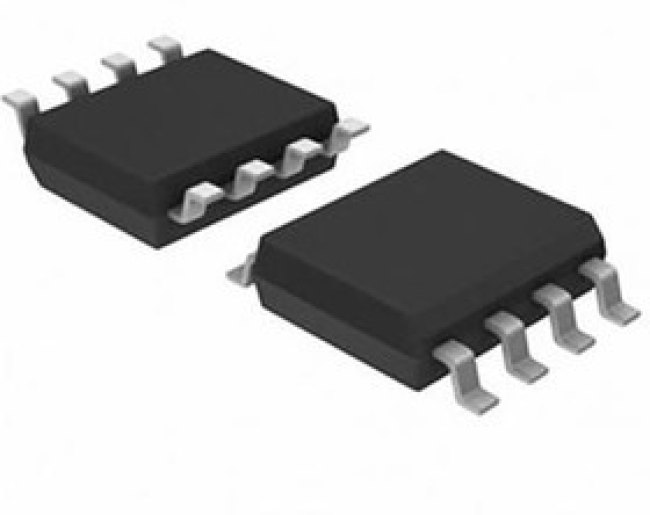

LF356M/NOPB
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание Микросхема: операционный усилитель, 5МГц, 10-36В, Ch: 1, SO8 Характеристики Категория
Микросхема
Тип
операционный усилитель
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:46:08 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | J-FET |
| automotive | No |
| cmrr - common mode rejection ratio: | 100 dB |
| common mode rejection ratio | 80(dB) |
| dual supply voltage (max) | ±15(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 12 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 95 |
| gbp - gain bandwidth product | 5MHz |
| gbp - gain bandwidth product: | 5 MHz |
| ib - input bias current: | 200 pA |
| input bias current | 0.2(nA) |
| input offset voltage | 10(mV) |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.01 pA/sqrt Hz |
| iq per channel (typ) | 5mA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Monolithic Amplifier |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.0002@±15V |
| maximum input offset current | 0.00005@±15V |
| maximum input offset current (ua) | 0.00005@±15V |
| maximum input offset voltage (mv) | 10@±15V |
| maximum operating temperature | 70В°C |
| maximum operating temperature: | +70 C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 380 |
| maximum supply current (ma) | 10@±15V |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-5 V |
| minimum operating temperature | 0В°C |
| minimum operating temperature: | 0 C |
| minimum operating temperature (°c) | 0 |
| minimum psrr (db) | 80 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| number of elements | 1 |
| operating supply current: | 5 mA |
| operating supply voltage: | 10 V to 36 V, +/-5 V to+/-18 V |
| operating temperature classification | Commercial |
| operating temp range | 0C to 70C |
| output current per channel: | 25 mA |
| package/case: | SOIC-8 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8006082789 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 380 mW |
| pin count | 8 |
| power dissipation | 0.38(W) |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Dual |
| power supply type | Dual |
| ppap | No |
| process technology | BiFET |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rad hardened | No |
| rail/rail i/o type | No |
| rail to rail | No |
| series: | LF356 |
| settling time | 1.5(us) |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | Not Required(V) |
| single supply voltage (min) | Not Required(V) |
| single supply voltage (typ) | Not Required(V) |
| slew rate | 12(V/us) |
| sr - slew rate | 12 V/us |
| sr - slew rate: | 12 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply current | 2.8@±15V(mA) |
| supply type: | Dual |
| supply voltage - max | 36V, В±5V |
| supply voltage - max: | 44 V |
| supply voltage - min | 10V |
| supply voltage - min: | 10 V |
| technology | BiFET |
| technology: | BiFET |
| type | Monolithic Amplifier |
| typical gain bandwidth product | 5MHz |
| typical gain bandwidth product (mhz) | 5 |
| typical input noise voltage density (nv/rthz) | 15@±15V |
| typical input voltage noise density | 15nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.01@±15V |
| typical settling time (ns) | 1500 |
| typical slew rate | 12V/µs |
| typical slew rate (v/us) | 12@±15V |
| typical voltage gain | 106 dB |
| typical voltage gain (db) | 106.02 |
| unity gain bandwidth product | 5 |
| vcm - common mode voltage: | 10 V to 36 V |
| вес, г | 0.2 |
| voltage gain db: | 106.02 dB |
| voltage gain in db | 106.02(dB) |
| vos - input offset voltage: | 2 mV |
| width | 3.9mm |
