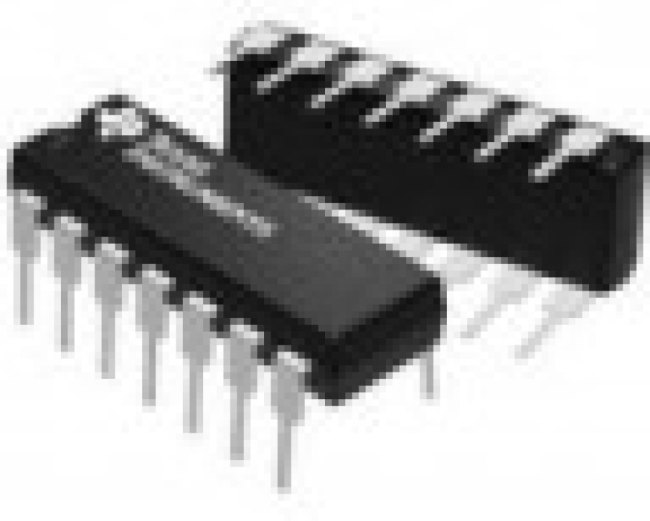

LF347BN, Operational Amplifiers - Op Amps Wide-Bandwidth JFET-Inp Quad
Оставить отзыв
В избранноеВ сравнение
Артикул: LF347BN
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsJ-FET Amplifier 4 Circuit 14-PDIP
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:33:37 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | J-FET |
| amplifier type: | Wideband Amplifier |
| base product number | LF347 -> |
| cmrr - common mode rejection ratio: | 100 dB |
| common mode rejection ratio | 80(dB) |
| current - input bias | 50pA |
| current - supply | 7.2mA (x4 Channels) |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage (max) | ±18(V) |
| dual supply voltage (min) | ±4(V) |
| dual supply voltage (typ) | ±5/±9/±12/±15(V) |
| eccn | EAR99 |
| en - input voltage noise density: | 18 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 25 |
| gain bandwidth product | 4MHz |
| gbp - gain bandwidth product: | 3 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 200 pA |
| input bias current | 0.2(nA) |
| input offset voltage | 5(mV) |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.01 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Texas Instruments |
| manufacturer product page | http://www.ti.com/general/docs/suppproductinfo.tsp |
| maximum dual supply voltage: | +/-18 V |
| maximum input offset current | 0.0001@±15V |
| maximum operating temperature: | +70 C |
| minimum dual supply voltage: | +/-3.5 V |
| minimum operating temperature: | 0 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels: | 4 Channel |
| number of circuits | 4 |
| number of elements | 4 |
| operating supply current: | 7.2 mA |
| operating supply voltage: | 7 V to 36 V, +/-3.5 V to+/-18 V |
| operating temperature | 0В°C ~ 70В°C |
| operating temperature classification | Commercial |
| operating temp range | 0C to 70C |
| output current per channel: | 31 mA |
| package | Tube |
| package / case | 14-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-14 |
| package type | PDIP |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8004999964 |
| pd - power dissipation: | 680 mW |
| pin count | 14 |
| power dissipation | 1(W) |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Dual |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rad hardened | No |
| rail/rail i/o type | No |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | LF347B |
| settling time | 2(us) |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | Not Required(V) |
| single supply voltage (min) | Not Required(V) |
| single supply voltage (typ) | Not Required(V) |
| slew rate | 13V/Вµs |
| sr - slew rate: | 13 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 14-PDIP |
| supply current | 11@±15V@0C TO 70C(mA) |
| supply type: | Dual |
| supply voltage - max: | 36 V |
| supply voltage - min: | 7 V |
| technology | BiFET |
| technology: | BiFET |
| unity gain bandwidth product | 4 |
| vcm - common mode voltage: | Negative Rail+4 V to Positive Rail-4 V |
| вес, г | 0.93 |
| voltage gain db: | 100 dB |
| voltage gain in db | 100(dB) |
| voltage - input offset | 3mV |
| voltage - supply, single/dual (в±) | 36V, В±18V |
| vos - input offset voltage: | 10 mV |
