| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:42:02 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Instrumentation Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 120 dB |
| development kit: | INA826SEVM |
| eccn (us) | ear99 |
| en - input voltage noise density: | 18 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 250 |
| gain error | 0.0005% |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current: | 65 nA |
| in - input noise current density: | 100 fA/sqrt Hz |
| ios - input offset current: | 5 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | no lead |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.065±15V |
| maximum input offset voltage (mv) | 0.15±15V |
| maximum input resistance (mohm) | 0.1(Typ)±15V |
| maximum operating supply voltage (v) | ±18|36 |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 36 |
| maximum supply voltage range (v) | 30 to 50 |
| maximum voltage gain (db) | 60 |
| maximum voltage gain range (db) | 60 to 75 |
| minimum cmrr (db) | 84 |
| minimum cmrr range (db) | 75 to 85 |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 90 |
| minimum single supply voltage (v) | 3 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 200 uA |
| output current per channel: | 16 mA |
| output type: | Rail-to-Rail |

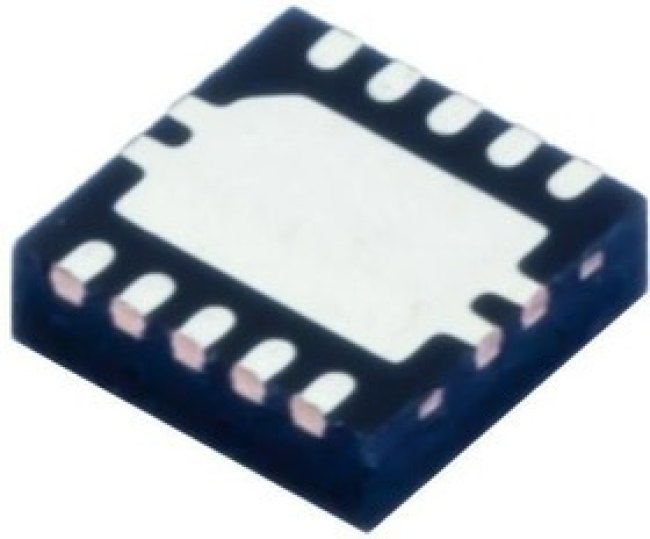

| package / case: | VSON-10 |
| packaging | Tape and Reel |
| партномер | 8004999513 |
| part status | active |
| pcb changed | 10 |
| pin count | 10 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Instrumentation Amplifiers |
| product category: | Instrumentation Amplifiers |
| product type: | Instrumentation Amplifiers |
| psrr - power supply rejection ratio: | 100 dB |
| rail to rail | Rail to Rail Output |
| series: | INA826S |
| shutdown: | Shutdown |
| sr - slew rate: | 1 V/us |
| standard package name | SON |
| subcategory: | Amplifier ICs |
| supplier package | VSON EP |
| supply voltage - max: | 36 V |
| supply voltage - min: | 3 V |
| typical dual supply voltage (v) | ±3|±5|±9|±12|±15 |
| typical single supply voltage (v) | 5|9|12|15|18|24|28 |
| вес, г | 0.03 |
| vos - input offset voltage: | 150 uV |
