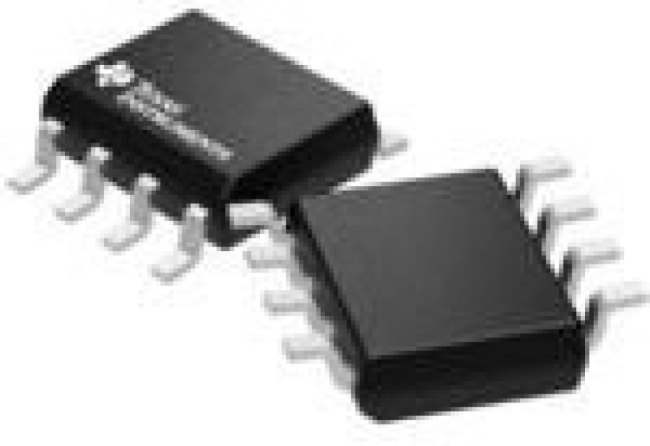

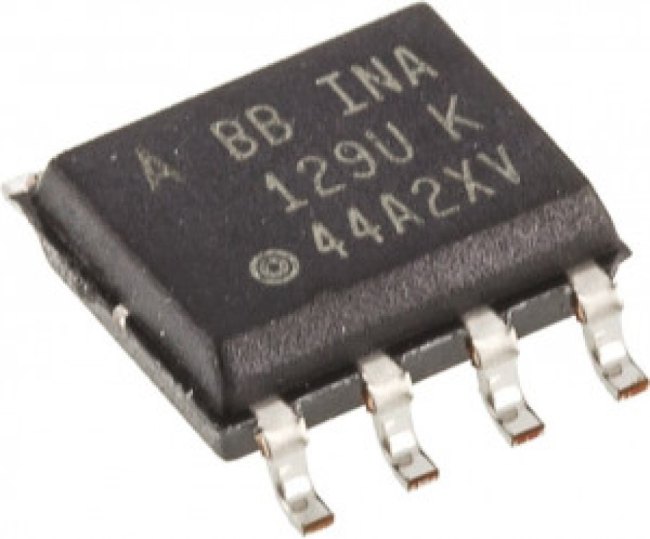

INA129UA
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементInstrumentation Amplifiers Precision Low Power Instrumentation Amp
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:54:25 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| 3 db bandwidth: | 200 kHz |
| amplifier type: | Instrumentation Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 120 dB |
| dual supply voltage: | +/-15 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 8 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 75 |
| gain error | 0.002% |
| gain v/v: | 1 V/V to 10000 V/V |
| gbp - gain bandwidth product: | 1.3 MHz |
| ib - input bias current: | 5 nA |
| inl - integral nonlinearity: | 0.002% |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.01@±15V |
| maximum input bias current - (ua) | 0.01@??15V |
| maximum input offset voltage | 125µV |
| maximum input offset voltage (mv) | 0.125@±15V |
| maximum input resistance | 100GΩ |
| maximum input resistance (mohm) | 100000(Typ)@±15V |
| maximum operating supply voltage (v) | ±18 |
| maximum operating supply voltage - (v) | ??18 |
| maximum operating temperature | +85 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum supply voltage range (v) | 30 to 50 |
| maximum voltage gain (db) | 80 |
| maximum voltage gain range (db) | 75 to 100 |
| minimum cmrr | 73dB |
| minimum cmrr (db) | 73 |
| minimum cmrr range (db) | 60 to 75 |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 700 uA |
| operating supply voltage: | 4.5 V to 36 V |
| operating temperature - (??c) | -40~125 |
| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002953754 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| ppap | No |
| priced to clear | Yes |
| product: | Instrumentation Amplifiers |
| product category: | Instrumentation Amplifiers |
| product type: | Instrumentation Amplifiers |
| rail to rail | No |
| series: | INA129 |
| sr - slew rate: | 4 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply voltage - max: | 36 V |
| supply voltage - min: | 4.5 V |
| typical dual supply voltage | ±15V |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product | 1.3MHz |
| вес, г | 0.09 |
| vos - input offset voltage: | 50 uV |
| width | 3.91mm |
