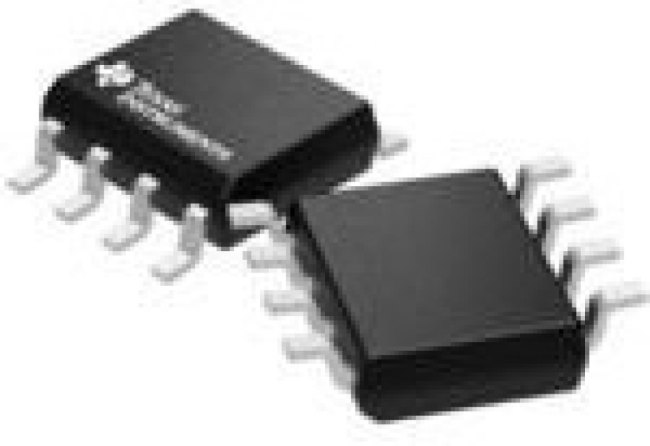

INA118UB
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементRange:± 1.35V To ± 18V; Amplifier Case Style:Soic; No. Of Pins:8Pins; Amplifier Rohs Compliant: Yes |TEXAS INSTRUMENTS INA118UB
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:20:05 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| 3 db bandwidth: | 800 kHz |
| automotive | No |
| cmrr - common mode rejection ratio: | 107 dB |
| common mode rejection ratio | 80dB |
| dual supply voltage: | +/-15 V |
| dual supply voltage (max) | plusmn;18V |
| dual supply voltage (min) | plusmn;1.35V |
| dual supply voltage (typ) | plusmn;15V |
| eccn (us) | ear99 |
| factory pack quantity: factory pack quantity: | 75 |
| gain error | 0.002% |
| gain v/v: | 80 dB |
| gbp - gain bandwidth product: | 800 kHz |
| ib - input bias current: | 5 nA |
| input bias current | 5nA |
| input resistance | 10000MOhm |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.005@±15V |
| maximum input offset voltage | 50µV |
| maximum input resistance | 10GΩ |
| maximum input resistance (mohm) | 10000(Typ)@±15V |
| maximum operating supply voltage (v) | ±18 |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 125 |
| maximum supply current | 0.385 mA |
| maximum supply voltage range (v) | 30 to 50 |
| maximum voltage gain (db) | 80 |
| maximum voltage gain range (db) | 75 to 100 |
| minimum cmrr | 80dB |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 75 to 85 |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 3 |
| operating supply current: | 350 uA |
| operating supply voltage: | 36 V |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Tape and Reel |
| packaging: | Tube |
| партномер | 8002953745 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply requirement | Dual |
| power supply type | Dual |
| ppap | No |
| product: | Instrumentation Amplifiers |
| product category: | Instrumentation Amplifiers |
| product type: | Instrumentation Amplifiers |
| rail/rail i/o type | No |
| rail to rail | No |
| series: | INA118 |
| single supply voltage (max) | Not RequiredV |
| single supply voltage (min) | Not RequiredV |
| single supply voltage (typ) | Not RequiredV |
| sr - slew rate: | 900 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supplier temperature grade | Military |
| supply voltage - max: | 36 V |
| supply voltage - min: | 2.7 V |
| type | Instrumentation Amplifier |
| typical dual supply voltage | ±15V |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product | 800kHz |
| voltage gain db | 80dB |
| vos - input offset voltage: | 50 uV |
| width | 3.91mm |
