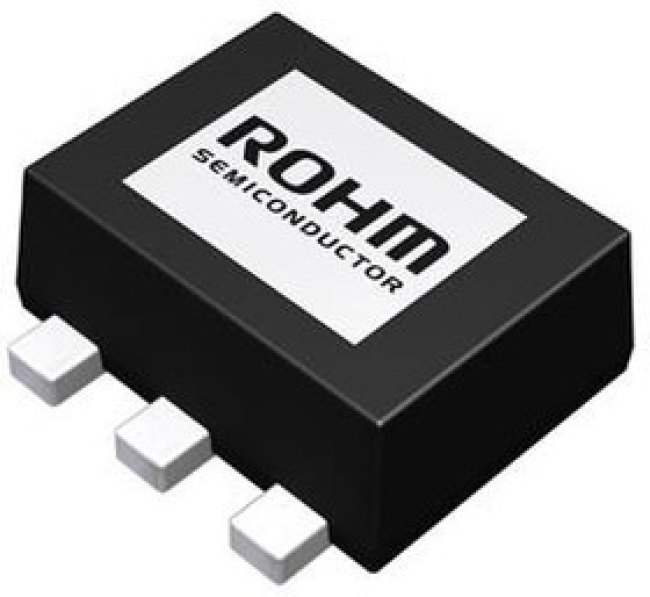

BU7205SHFV-TR, Op Amp Single Ultra Low Power Amplifier R-R I/O 5.5V 5-Pin HVSOF EP T/R (BU7205SHFV-TR) — купить | ООО «Телеметрия»


BU7205SHFV-TR, Op Amp Single Ultra Low Power Amplifier R-R I/O 5.5V 5-Pin HVSOF EP T/R

Оставить отзыв
В избранноеВ сравнение
Артикул: BU7205SHFV-TR
Standard Operational AmplifiersROHM Standard Operational Amplifiers are designed to meet virtually any need, ranging from bipolar and CMOS types to ground sense (single supply) models, dual supply units, and ICs featuring a variety of features, including low noise, low saturation, low current consumption, and input/output full swing. These devices offer high-gain, low power consumption, and a wide operating voltage range of 3V to 36V (single power supply).
Основные
factory pack quantity: factory pack quantity:3000
manufacturer:ROHM Semiconductor
maximum operating temperature:+105 C
minimum operating temperature:-40 C
190
- +
Бонус: 3.8 !
Бонусная программа
Итого: 190
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Standard Operational AmplifiersROHM Standard Operational Amplifiers are designed to meet virtually any need, ranging from bipolar and CMOS types to ground sense (single supply) models, dual supply units, and ICs featuring a variety of features, including low noise, low saturation, low current consumption, and input/output full swing. These devices offer high-gain, low power consumption, and a wide operating voltage range of 3V to 36V (single power supply).
Основные
factory pack quantity: factory pack quantity:3000
manufacturer:ROHM Semiconductor
maximum operating temperature:+105 C
minimum operating temperature:-40 C
mounting style:SMD/SMT
product category:Operational Amplifiers-Op Amps
product type:Op Amps-Operational Amplifiers
product:Operational Amplifiers
series:BU7205SHFV
subcategory:Amplifier ICs
packaging:Reel, Cut Tape, MouseReel
part # aliases:BU7205SHFV
Вес и габариты
operating supply current:400 nA
package/case:HVSOF-5
supply voltage - max:5.5 V
supply voltage - min:1.8 V
number of channels:1 Channel
output type:CMOS
shutdown:No Shutdown
ib - input bias current:1 pA
gbp - gain bandwidth product:2.5 kHz
vos - input offset voltage:9.5 mV
cmrr - common mode rejection ratio:60 dB
amplifier type:Operational Amplifier
output current per channel:2 mA
sr - slew rate:2.5 V/us
