Semiconductors\Integrated Circuits - ICs\Amplifier ICs\Operational Amplifiers - Op Amps

Подробное описание

Основные
package / case	SSOP-14
length	5 mm
minimum operating temperature	- 40 C
width	4.4 mm

68 ₽

- +

Бонус: 1.36 !

Бонусная программа

Итого: 68 ₽

Купить

Semiconductors\Integrated Circuits - ICs\Amplifier ICs\Operational Amplifiers - Op Amps

Основные
package / case	SSOP-14
length	5 mm
minimum operating temperature	- 40 C
width	4.4 mm
factory pack quantity	2500
manufacturer	ROHM Semiconductor
maximum operating temperature	+ 85 C
mounting style	SMD/SMT
packaging	Cut Tape or Reel
product category	Operational Amplifiers - Op Amps
product type	Op Amps - Operational Amplifiers
series	BA10324A
subcategory	Amplifier ICs
unit weight	0.004296 oz
height	1.05 mm
number of channels	4 Channel
Вес и габариты
operating supply current	600 uA
product	Operational Amplifiers
operating supply voltage	3 V to 32 V, +/- 1.5 V to +/- 16 V
supply voltage - max	32 V
supply voltage - min	3 V
part # aliases	BA10324AFV
technology	Bipolar
amplifier type	Ground Sense Amplifier
shutdown	No Shutdown
pd - power dissipation	400 mW
supply type	Single, Dual
ib - input bias current	250 nA
gbp - gain bandwidth product	500 kHz
sr - slew rate	0.2 V/us
dual supply voltage	+/- 3 V, +/- 5 V, +/- 9 V
maximum dual supply voltage	+/- 16 V
psrr - power supply rejection ratio	65 dB
cmrr - common mode rejection ratio	65 dB
minimum dual supply voltage	+/- 1.5 V
voltage gain db	100 dB
output current per channel	35 mA
vos - input offset voltage	7 mV

0.0

общая оценка

Всего 0 отзывов

0 отзывов

Отзывов нет

Кнопки

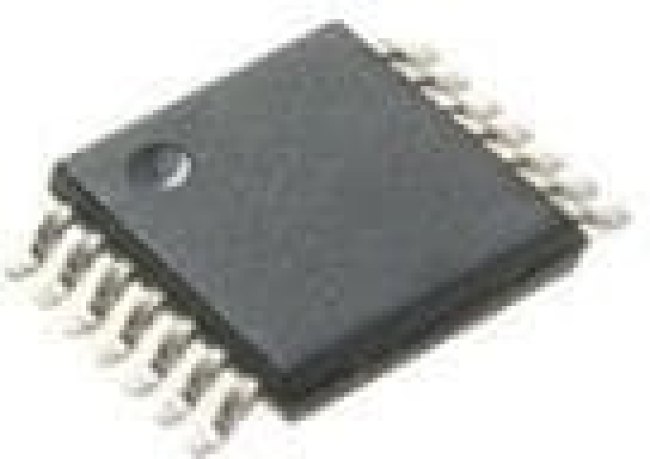

BA10324AFV-E2
