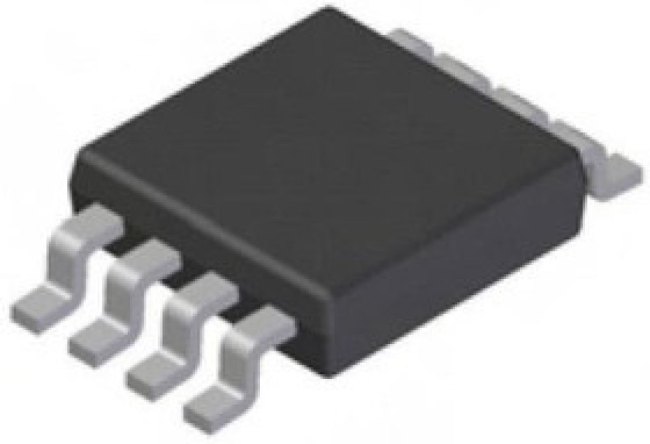

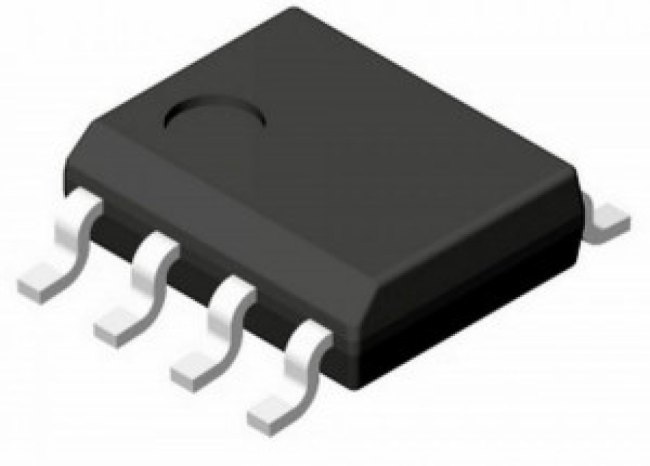

AS2333S-13, Operational Amplifiers - Op Amps OpAmp General Purpose SO-8 T&R 2.5K

Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsAS2333S-13 Dual CMOS Operational AmplifierDiodes Incorporated AS2333S-13 Dual CMOS Operational Amplifier provides ultra-low input offset voltage and near zero-drift over time and temperature. This amplifier is designed with a chopping stabilization technique that eliminates 1/f noise and the cross-over distortion present in most rail to rail input. The AS2333S-13 amplifier offers high impedance inputs with a common-mode range of 100mV beyond the rails and rail to rail output that swings within 50mV of the rails. This amplifier operates at 1.8V to 5.5V supply voltage range and -40°C to 125°C. Typical applications include battery-powered instruments, handheld test equipment, medical instrumentation, sensor signal conditioning, and low voltage current sensing.
