| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 4:15:45 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 86 dB |
| dual supply voltage: | +/-15 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 16 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| gbp - gain bandwidth product: | 5 MHz |
| ib - input bias current: | 100 pA |
| input offset voltage drift (uv/°c) | 10 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | General Purpose Amplifier |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.0001@±15V |
| maximum input offset current (ua) | 0.0001@±15V |
| maximum input offset voltage (mv) | 5.5@±15V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 36 |
| maximum supply current (ma) | 3.6@±15V |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-4 V |
| minimum dual supply voltage (v) | ±4 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 80 |
| minimum single supply voltage (v) | 8 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 2.4 mA |
| operating supply voltage: | 8 V to 36 V |
| output current per channel: | 27 mA |

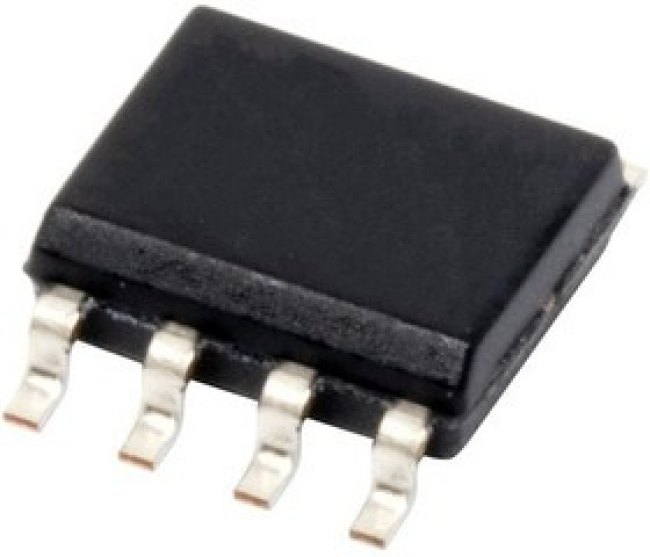

| package / case: | SOIC-8 |
| packaging | Tape and Reel |
| партномер | 8004971097 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | JFET |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 86 dB |
| series: | ADTL082 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 20 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC N |
| supplier temperature grade | Extended Industrial |
| supply voltage - max: | 36 V, +/-18 V |
| supply voltage - min: | 8 V, +/-4 V |
| type | General Purpose Amplifier |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±15 |
| typical gain bandwidth product (mhz) | 5 |
| typical input bias current (ua) | 0.000002@±15V |
| typical input noise voltage density (nv/rthz) | 16@±15V |
| typical slew rate (v/us) | 20@±15V |
| typical voltage gain (db) | 106.02 |
| вес, г | 0.54 |
| voltage gain db: | 106.02 dB |
| vos - input offset voltage: | 1.5 mV |
