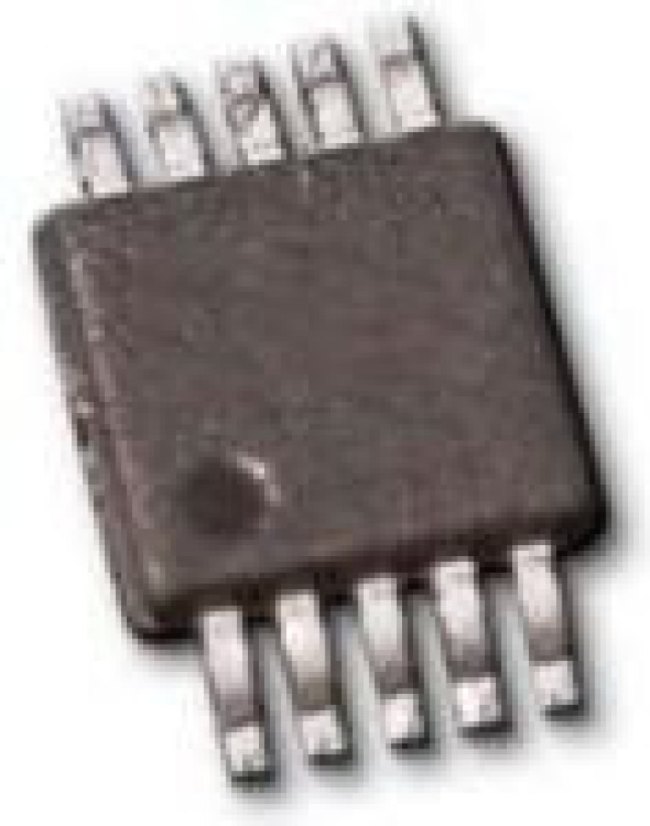

ADA4897-2ARMZ, Op Amp Dual Low Power Amplifier R-R O/P ±5V/10V 10-Pin MSOP Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: ADA4897-2ARMZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Dual Low Power Amplifier R-R O/P ±5V/10V 10-Pin MSOP Tube
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:27:07 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | Voltage Feedback |
| automotive | No |
| base product number | ADA4897 -> |
| current - input bias | 4ВµA |
| current - output / channel | 80mA |
| current - supply | 3mA (x2 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| gain bandwidth product | 90MHz |
| htsus | 8542.33.0001 |
| input offset voltage drift (uv/°c) | 5 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage (v) | ±5 |
| maximum input bias current (ua) | 17(Min)@5V |
| maximum input bias current - (ua) | 17(Min)@5V |
| maximum input offset current (ua) | 0.6@5V |
| maximum input offset current - (ua) | 0.6@5V |
| maximum input offset voltage (mv) | 0.5@5V |
| maximum input offset voltage - (mv) | 0.5@5V |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 5.8@5V |
| maximum single supply voltage (v) | 10 |
| military | No |
| minimum cmrr (db) | 91 |
| minimum cmrr range (db) | 90 to 95 |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 96 |
| minimum single supply voltage (v) | 3 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting type | Surface Mount |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating temperature | -40В°C ~ 125В°C |
| operating temperature - (??c) | -40~125 |
| output type | Rail-to-Rail |
| package | Tube |
| package / case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| packaging | Tube |
| партномер | 8001034807 |
| part status | active |
| pcb changed | 10 |
| pin count | 10 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | SiGe Bipolar |
| rail to rail | Rail to Rail Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| shut down support | No |
| slew rate | 120V/Вµs |
| standard package name | SOP |
| supplier device package | 10-MSOP |
| supplier package | MSOP |
| supplier temperature grade | Extended Industrial |
| type | Low Power Amplifier |
| typical dual supply voltage (v) | ±3 |
| typical gain bandwidth product (mhz) | 90 |
| typical gain bandwidth product - (mhz) | 90 |
| typical input bias current (ua) | 11@5V |
| typical input noise voltage density (nv/rthz) | 2.4@5V |
| typical noninverting input current noise density (pa/rthz) | 11@5V |
| typical output current (ma) | 70@5V |
| typical settling time (ns) | 95 |
| typical slew rate (v/us) | 100@5V |
| typical slew rate - (v/us) | 100@5V |
| typical voltage gain (db) | 110 |
| вес, г | 0.5 |
| voltage - input offset | 28ВµV |
| voltage - supply, single/dual (в±) | 3V ~ 10V, В±1.5V ~ 5V |
| -3db bandwidth | 230MHz |
