| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:50:39 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | Voltage Feedback Amplifier |
| cmrr - common mode rejection ratio: | 90 dB |
| common mode rejection ratio | 72(dB) |
| dual supply voltage: | +/-3 V |
| dual supply voltage (max) | ±5(V) |
| dual supply voltage (min) | ±2.5(V) |
| dual supply voltage (typ) | ±3(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 4 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| gbp - gain bandwidth product: | 410 MHz |
| hts | 8542.33.00.01 |
| ib - input bias current: | 20 pA |
| input bias current | 0.02(nA) |
| input offset voltage | 2.3@5V(mV) |
| in - input noise current density: | 0.0025 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage: | +/-5 V |
| maximum dual supply voltage (v) | ±5 |
| maximum input bias current (ua) | 0.00002@5V |
| maximum input offset voltage (mv) | 2.3@5V |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum single supply voltage (v) | 10 |
| minimum cmrr (db) | 72 |
| minimum cmrr range (db) | 71 to 75 |
| minimum dual supply voltage: | +/-2.5 V |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 63 |
| minimum single supply voltage (v) | 5 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of elements | 1 |
| operating supply current: | 21 mA |
| operating supply voltage: | 5 V to 10 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 105C |
| output current per channel: | 70 mA |

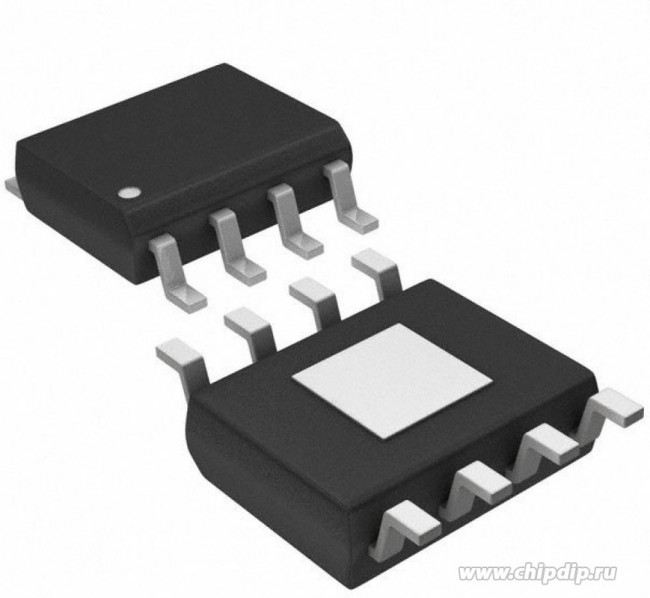

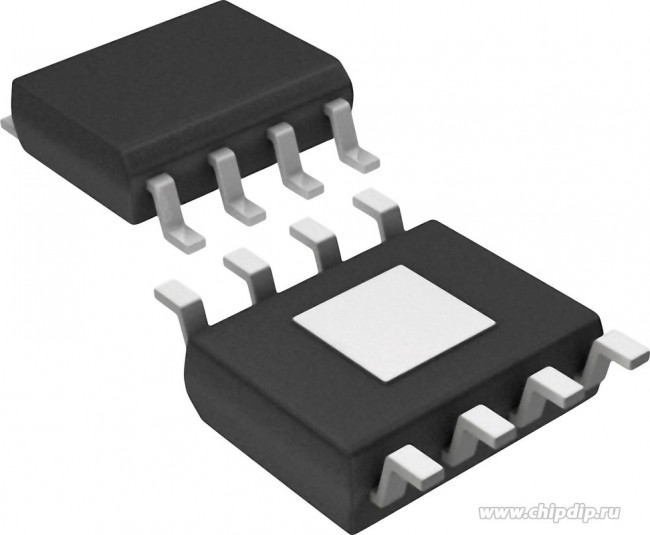

| package / case: | SOIC-8 |
| package height | 1.65(Max) |
| package length | 04.09.2024 |
| package type | SOIC N EP |
| package width | 03.09.2024 |
| packaging | Tape and Reel |
| партномер | 8004968425 |
| part status | active |
| pcb changed | 8 |

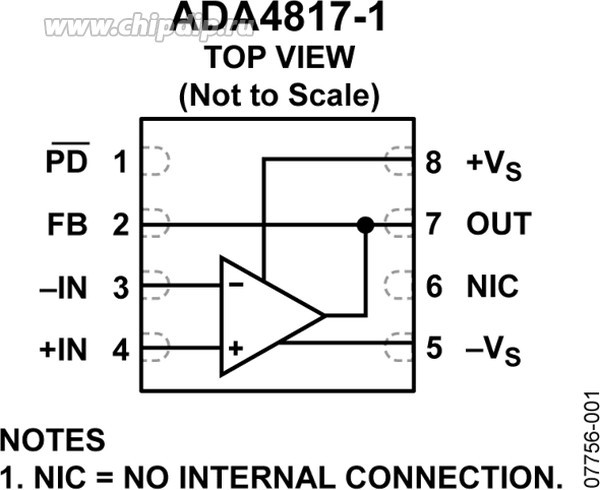

| pin count | 8 |
| power supply rejection ratio | 63(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| process technology | BiFET |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | -72 dB |
| rad hardened | No |
| rail/rail i/o type | No |
| series: | ADA4817-1 |
| settling time | 0.011(us) |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 10(V) |
| single supply voltage (min) | 5(V) |
| single supply voltage (typ) | 9(V) |
| slew rate | 320(V/us) |
| sr - slew rate: | 320 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC N EP |
| supplier temperature grade | Extended Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 10 V, +/-5 V |
| supply voltage - min: | 5 V, +/-2.5 V |
| technology | BiFET |
| technology: | FET |
| type | Low Noise Amplifier |
| type: | Voltage Feedback Amplifier |
| typical dual supply voltage (v) | ±3 |
| typical gain bandwidth product (mhz) | 410 |
| typical input noise voltage density (nv/rthz) | 4@5V |
| typical noninverting input current noise density (pa/rthz) | 0.0025@5V |
| typical output current (ma) | 55@5V |
| typical settling time (ns) | 11 |
| typical single supply voltage (v) | 9 |
| typical slew rate (v/us) | 320@5V |
| typical voltage gain (db) | 63 |
| unity gain bandwidth product | 410 |
| вес, г | 0.54 |
| voltage gain db: | 65 dB |
| voltage gain in db | 63(dB) |
| vos - input offset voltage: | 400 uV |
