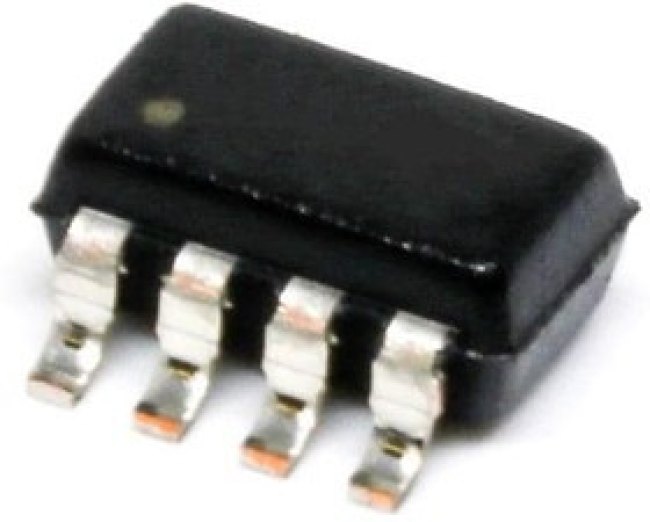

ADA4806-1ARJZ-R2, High Speed Operational Amplifiers 0.2 ?V/ C Offset Drift, 105 MHz, Low Power, Multimode, Rail-to-Rail Amplifier
Оставить отзыв
В избранноеВ сравнение
Артикул: ADA4806-1ARJZ-R2
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\High Speed Operational AmplifiersAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:25:51 |
| Бренд | Analog Devices |
| Вес и габариты | |
| 3 db bandwidth: | 120 MHz |
| amplifier type: | Rail-to-Rail Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 130 dB |
| development kit: | ADA4806-1RJ-EBZ |
| eccn (us) | ear99 |
| en - input voltage noise density: | 5.2 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 250 |
| gbp - gain bandwidth product: | 30 MHz |
| ib - input bias current: | 800 nA |
| in - input noise current density: | 700 fA/sqrt Hz |
| ios - input offset current: | 2.1 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage (v) | ±5 |
| maximum input bias current (ua) | 0.72@5V |
| maximum input offset current (ua) | 0.004(Typ)@5V |
| maximum input offset voltage (mv) | 0.125@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.52@5V |
| maximum single supply voltage (v) | 10 |
| minimum cmrr (db) | 103 |
| minimum cmrr range (db) | 95 to 105 |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 100 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 570 uA |
| output current per channel: | 58 mA |
| output type: | Rail-to-Rail |
| package / case: | SOT-23-8 |
| партномер | 8004968422 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | Bipolar |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 122 dB |
| rail to rail | Rail to Rail Output |
| series: | ADA4806-1 |
| shutdown: | Shutdown |
| shut down support | No |
| sr - slew rate: | 250 V/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Industrial |
| supply voltage - max: | 10 V |
| supply voltage - min: | 2.7 V |
| technology: | Bipolar |
| topology: | Voltage Feedback |
| type | Low Power Amplifier |
| typical dual supply voltage (v) | ±3 |
| typical gain bandwidth product (mhz) | 30 |
| typical input bias current (ua) | 0.47@5V |
| typical output current (ma) | 47@5V |
| typical settling time (ns) | 82 |
| typical slew rate (v/us) | 220@5V |
| typical voltage gain (db) | 103 |
| vcm - common mode voltage: | -5.1 V to 4 V |
| вес, г | 0.04 |
| voltage gain db: | 111 dB |
| vos - input offset voltage: | 13 uV |
