| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:27:19 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type: | JFET Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 84 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 12 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 8 MHz |
| ib - input bias current: | 2 pA |
| input offset voltage drift (uv/°c) | ±4 |
| input type: | JFET |
| ios - input offset current: | 10 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Bias Current Amplifier |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.00001@5V |
| maximum input offset current (ua) | 0.00001@5V |
| maximum input offset voltage (mv) | 0.8@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 30 |
| maximum supply current (ma) | 1.3@5V |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 80 |
| minimum single supply voltage (v) | 5 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 665 uA |
| output current per channel: | 20 mA |
| output type: | Rail-to-Rail |

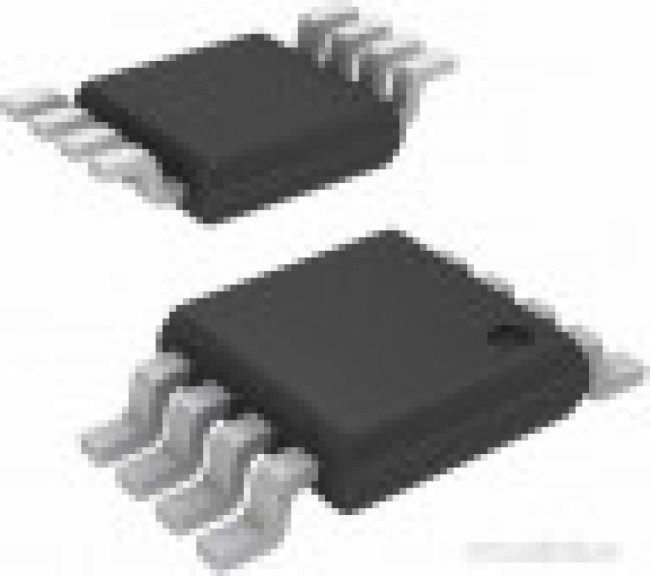

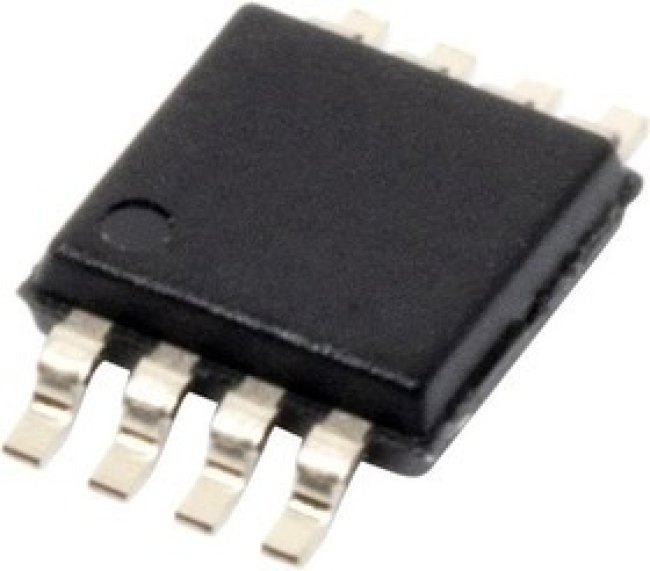

| package / case: | MSOP-8 |
| packaging | Tape and Reel |
| партномер | 8004968389 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 103 dB |
| rail to rail | Rail to Rail Output |
| series: | ADA4622-2 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 20 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Extended Industrial |
| supply voltage - max: | 30 V |
| supply voltage - min: | 4.5 V |
| type | Low Bias Current Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12 |
| typical gain bandwidth product (mhz) | 07.02.2024 |
| typical high level output voltage (v) | 4.97 |
| typical input bias current (ua) | 0.000002@5V |
| typical input noise voltage density (nv/rthz) | 30@5V |
| typical low level output voltage (v) | 0.31 |
| typical noninverting input current noise density (pa/rthz) | 0.0008@5V |
| typical output current (ma) | 20@5V |
| typical output resistance (ohm) | 5 |
| typical settling time (ns) | 2000 |
| typical slew rate (v/us) | 20@5V |
| typical voltage gain (db) | 115 |
| вес, г | 0.14 |
| voltage gain db: | 122 dB |
| vos - input offset voltage: | 40 uV |
