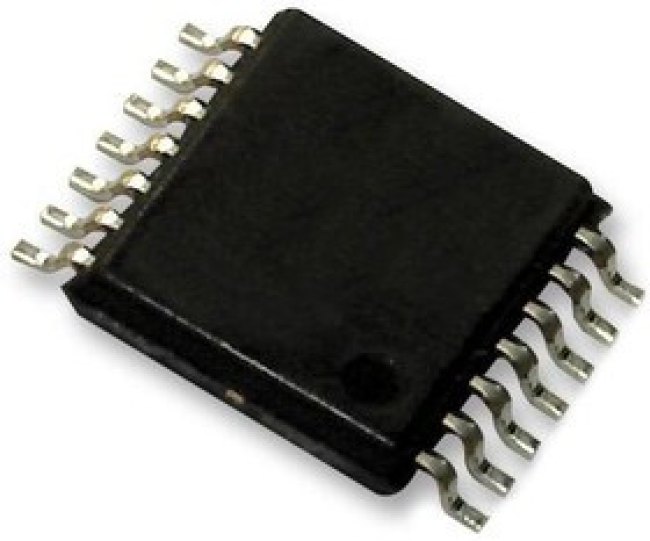

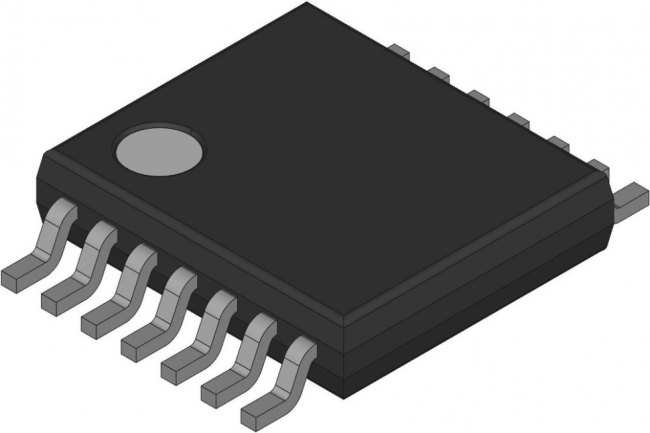

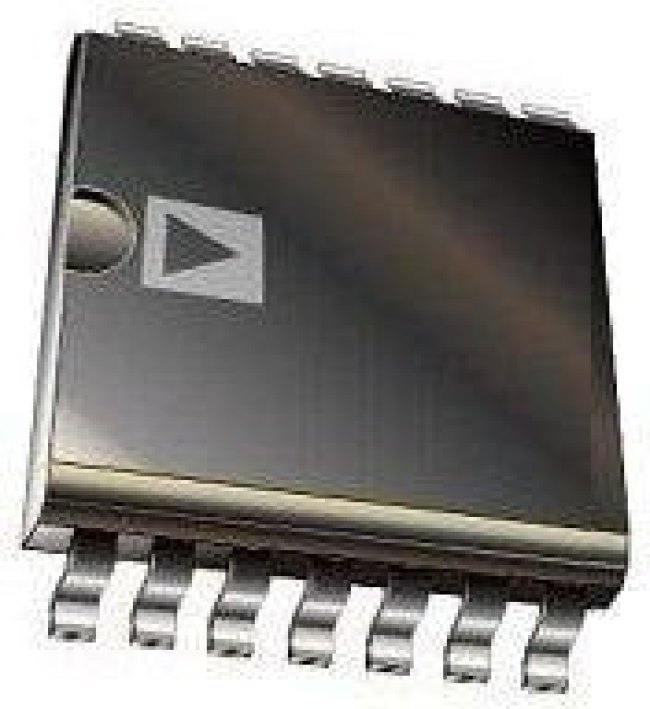

ADA4505-4ARUZ, Операционный усилитель, 4 Усилителя, 50 кГц, 6 В/мс, 1.8В до 5В, ± 900мВ до ± 2.5В, TSSOP

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУADA4505-4 is a quad channel, micropower amplifier. It features rail-to-rail input and output swings while operating from a single 1.8V to 5V power supply or from dual ±0.9V to ±2.5V power supplies. Employing a new circuit technology, this low cost amplifier offer zero input crossover distortion (excellent PSRR and CMRR performance) and very low bias current, while operating with a supply current of less than 10µA per amplifier. This combination of features make the amplifier ideal choices for battery-powered applications because they minimize errors due to power supply voltage variations over the lifetime of the battery and maintain high CMRR even for a rail-to-rail opamp. It is widely used in application such as pressure and position sensors, remote security, medical monitors, battery-powered consumer equipment, hazard detectors etc. • Power supply rejection ratio is 110dB typ• Common-mode rejection ratio is 105dB at (0V <= VCM <= 5V)• Offset voltage is 0.5mV typ• Very low input bias current is 0.5pA typ• Slew rate is 6.5mV/µs typ at (RL = 100Kohm, CL = 20pF, G = 1)• Gain bandwidth is 50kHz typ at (RL = 1Mohm, CL = 20pF, G = 1)• Voltage noise is 2.95µV p-p typ at (f = 0.1Hz to 10Hz)• Offset voltage drift is 2.5µV/°C typ• Operating temperature is -40°C to +125°C• Packaging style is 14-lead TSSOP
