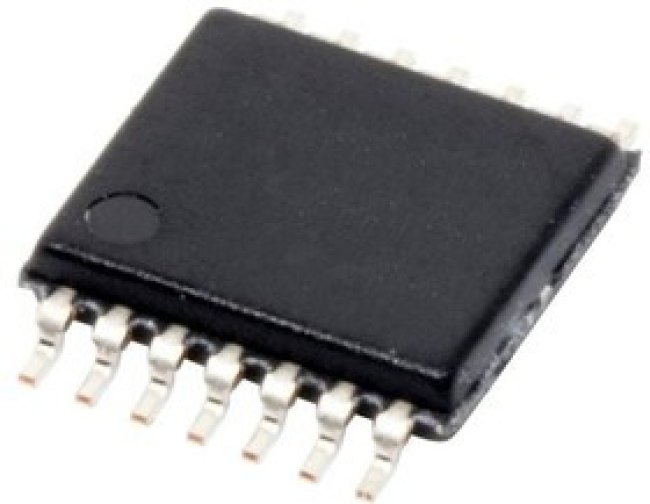

ADA4096-4ARUZ-R7, Precision Amplifiers 30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Quad Op Amplifier
Оставить отзыв
В избранноеВ сравнение
Артикул: ADA4096-4ARUZ-R7
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Precision AmplifiersAmplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 21:50:44 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 95 dB |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V, +/-12 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 27 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| gbp - gain bandwidth product: | 786 kHz |
| ib - input bias current: | 10 nA |
| категория | Электронные компоненты/Микросхемы |
| Корпус | TSSOP14 |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Micropower Amplifier |
| maximum dual supply voltage: | +/-15 V |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.025±5V |
| maximum input offset current (ua) | 0.002±5V |
| maximum input offset voltage (mv) | 0.3±5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 30 |
| maximum supply current (ma) | 0.22±5V |
| minimum cmrr (db) | 72 |
| minimum cmrr range (db) | 71 to 75 |
| minimum dual supply voltage: | +/-1.5 V |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 100 |
| minimum single supply voltage (v) | 3 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 240 uA |
| operating supply voltage: | 3 V to 30 V |
| output current per channel: | 10 mA |
| output type: | Rail-to-Rail |
| package / case: | TSSOP-14 |
| packaging | Tape and Reel |
| партномер | 8004968323 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 100 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | ADA4096-4 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 300 mV/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | TSSOP |
| supplier temperature grade | Extended Industrial |
| supply voltage - max: | 30 V, +/-15 V |
| supply voltage - min: | 3 V, +/-1.5 V |
| type | Micropower Amplifier |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12 |
| typical gain bandwidth product (mhz) | 0.595 |
| typical input bias current (ua) | 0.01±5V |
| typical input noise voltage density (nv/rthz) | 27±15V |
| typical noninverting input current noise density (pa/rthz) | 0.2±5V |
| typical settling time (ns) | 23400 |
| typical single supply voltage (v) | 5|9|12|15|18|24|28 |
| typical slew rate (v/us) | 0.3±5V |
| typical voltage gain (db) | 111 |
| вес, г | 0.14 |
| voltage gain db: | 111 dB |
| vos - input offset voltage: | 35 uV |
