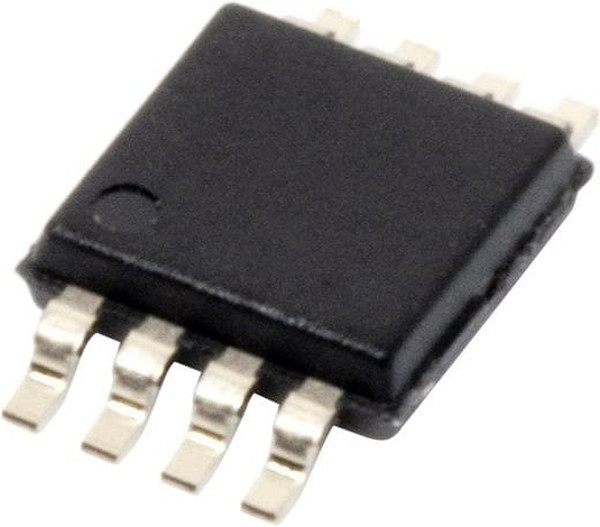

AD8675ARMZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Электроэлемент; Amplifier Case Style:Msop; No. Of Pins:8Pins; Operating Temperature Min:-40°C Rohs Compliant: Yes |Analog Devices AD8675ARMZ
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:38:15 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| dual supply voltage: | +/-9 V, +/-12 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 2.8 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current: | 4.5 nA |
| input voltage range - max: | 12.5 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage: | 36 V |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.002@±5V |
| maximum input bias current - (ua) | 0.002@??5V |
| maximum input offset current (ua) | 0.001@±5V |
| maximum input offset current - (ua) | 0.001@??5V |
| maximum input offset voltage (mv) | 0.075@±5V |
| maximum input offset voltage - (mv) | 0.075@??5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum supply current (ma) | 2.7@±5V |
| maximum supply current - (ma) | 2.7@??5V |
| military | No |
| minimum cmrr (db) | 105 |
| minimum cmrr range (db) | 105 to 115 |
| minimum dual supply voltage: | 10 V |
| minimum dual supply voltage (v) | ±5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 120 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 2.5 mA |
| operating supply voltage: | 5 V to 18 V |
| operating temperature - (??c) | -40~125 |
| output current per channel: | 20 mA |
| output type: | Rail-to-Rail |
| package / case: | MSOP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8007061068 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| ppap | No |
| process technology | Bipolar |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 140 dB |
| rail to rail | Rail to Rail Output |
| series: | AD8675 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 2.5 V/us |
| standard package name | MSOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Extended Industrial |
| supply voltage - max: | 18 V, 36 V |
| supply voltage - min: | 5 V, 10 V |
| type | PRECISION AMPLIFIER |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±9|±12 |
| typical gain bandwidth product (mhz) | 10 |
| typical gain bandwidth product - (mhz) | 10 |
| typical input noise voltage density (nv/rthz) | 2.8@±5V |
| typical noninverting input current noise density (pa/rthz) | 0.3@±5V |
| typical slew rate (v/us) | 2.5@±5V |
| typical slew rate - (v/us) | 2.5@??5V |
| typical voltage gain (db) | 126.02 |
| вес, г | 0.06 |
| voltage gain db: | 126.02 dB |
| vos - input offset voltage: | 10 uV |
