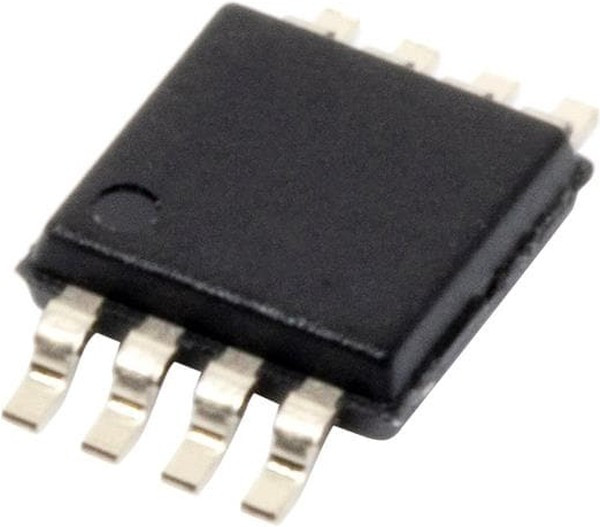

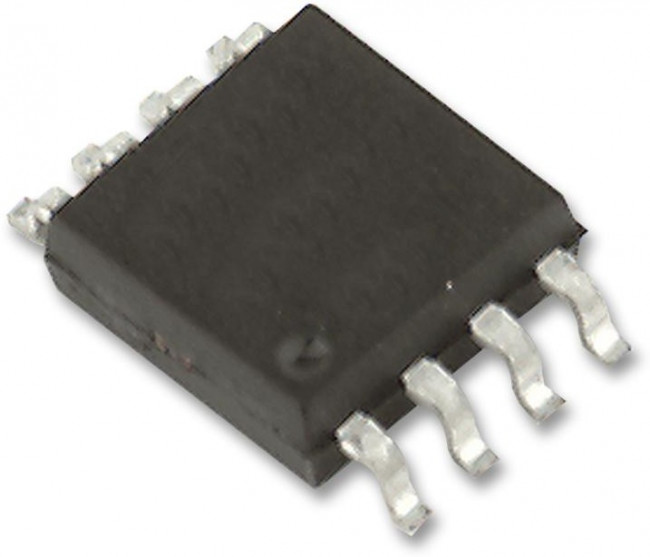

AD8671ARMZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементThe AD8671/AD8672/AD8674 are very high precision amplifiers featuring very low noise, very low offset voltage and drift, low input bias current, 10
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:12:56 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | General Purpose |
| automotive | No |
| base product number | AD8671 -> |
| category | Integrated Circuits(ICs) |
| cmrr - common mode rejection ratio: | 120 dB |
| current - input bias | 3nA |
| current - output / channel | 20mA |
| current - supply | 3mA |
| диапазон напряжения питания | ±5В до±15В |
| dual supply voltage: | 5 V to 15 V |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 2.8 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| family | Linear-Amplifiers-Instrumentation, OP Amps, Buffer Amps |
| gain bandwidth product | 10MHz |
| gbp - gain bandwidth product: | 10 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 40 nA |
| input offset voltage drift (uv/°c) | 0.5 |
| input voltage range - max: | 12 V |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 1 Усилитель |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| линейка продукции | - |
| максимальная рабочая температура | 125°C |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage: | 15 V |
| maximum dual supply voltage (v) | ±15 |
| maximum input bias current (ua) | 0.012±5V |
| maximum input offset current (ua) | 0.012±5V |
| maximum input offset voltage (mv) | 0.075±5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum supply current (ma) | 3.5±5V |
| минимальная рабочая температура | -40°C |
| minimum cmrr (db) | 100 |
| minimum cmrr range (db) | 95 to 105 |
| minimum dual supply voltage: | 5 V |
| minimum dual supply voltage (v) | ±5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 110 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| online catalog | General Purpose |
| operating supply current: | 3 mA |
| operating supply voltage: | 10 V to 36 V |
| operating temperature | -40°C ~ 125°C |
| output current per channel: | 20 mA |
| package | Tube |
| package / case | 8-TSSOP, 8-MSOP(0.118", 3.00mm Width) |
| package / case: | MSOP-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004302093 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 10МГц |
| power supply type | Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product training modules | Common Photodiode Op-Amp Circuit Problems and SolutionsIndirect Current Feedback Instrumentation Amplifier Applications Guide |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 130 dB |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD8671 |
| shutdown: | No Shutdown |
| shut down support | No |
| скорость нарастания | 4В/мкс |
| slew rate | 4 V/µs |
| sr - slew rate: | 4 V/us |
| standard package | 50 |
| standard package name | SOP |
| стандарты автомобильной промышленности | - |
| стиль корпуса усилителя | MSOP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-MSOP |
| supplier package | MSOP |
| supplier temperature grade | Extended Industrial |
| supply voltage - max: | 36 V, 15 V |
| supply voltage - min: | 10 V, 5 V |
| type | Low Noise Amplifier |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±9|±12 |
| typical gain bandwidth product (mhz) | 10 |
| typical high level output voltage (v) | 4 |
| typical input bias current (ua) | 0.003±5V |
| typical input noise voltage density (nv/rthz) | 2.8±5V |
| typical low level output voltage (v) | -3.9 |
| typical noninverting input current noise density (pa/rthz) | 0.3±5V |
| typical output current (ma) | 10±5V |
| typical settling time (ns) | 5100 |
| typical slew rate (v/us) | 4±5V |
| typical voltage gain (db) | 135.56 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| вес, г | 2 |
| voltage gain db: | 135.56 dB |
| voltage - input offset | 20µV |
| voltage - supply, single/dual (±) | 10 V ~ 36 V, ±5 V ~ 18 V |
| voltage - supply, single/dual (в±) | 10V ~ 36V, В±5V ~ 18V |
| vos - input offset voltage: | 30 uV |
