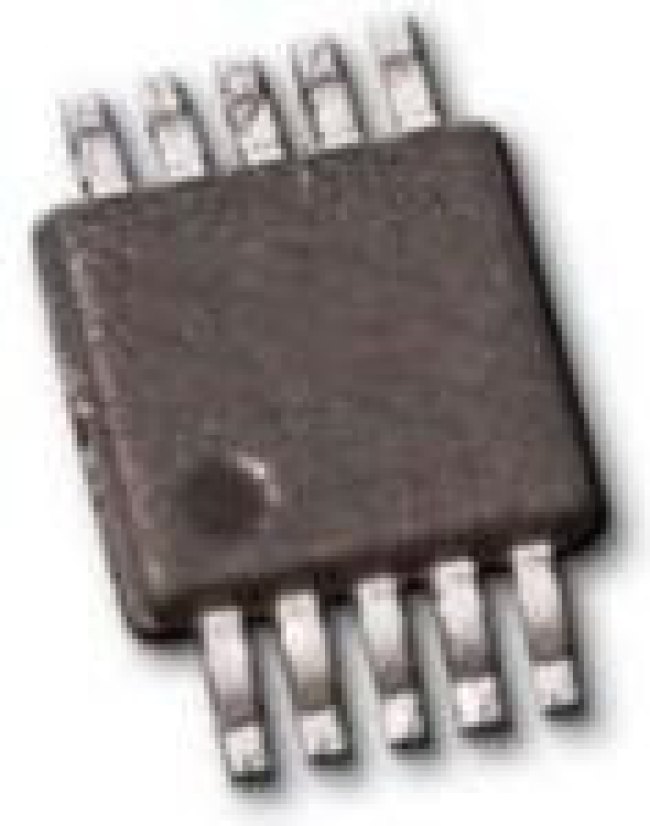

AD8647ARMZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsУсилитель общего назначения 2 схемы Rail-to-Rail 10-MSOP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:38:42 |
| Бренд | Analog Devices |
| Вес и габариты | |
| amplifier type | General Purpose |
| automotive | No |
| base product number | AD8647 -> |
| cmrr - common mode rejection ratio: | 84 dB |
| current - input bias | 0.3pA |
| current - output / channel | 120mA |
| current - supply | 1.5mA (x2 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 8 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gain bandwidth product | 24MHz |
| gbp - gain bandwidth product: | 24 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 550 pA |
| input voltage range - max: | 5 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.000001 5V |
| maximum input offset current (ua) | 0.000001 5V |
| maximum input offset voltage (mv) | 2.5 5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 05.05.2024 |
| maximum supply current (ma) | 4 5V |
| minimum cmrr (db) | 67 |
| minimum cmrr range (db) | 65 to 70 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 63 |
| minimum single supply voltage (v) | 02.07.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of circuits | 2 |
| operating supply current: | 1.5 mA |
| operating supply voltage: | 2.7 V to 5.5 V |
| operating temperature | -40В°C ~ 125В°C |
| output current per channel: | 120 mA |
| output type | Rail-to-Rail |
| package | Tube |
| package / case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| package / case: | MSOP-10 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005812819 |
| part status | active |
| pcb changed | 10 |
| pin count | 10 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | AD8647 |
| shutdown: | No Shutdown |
| shut down support | Yes |
| slew rate | 11V/Вµs |
| sr - slew rate: | 11 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier device package | 10-MSOP |
| supplier package | MSOP |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.7 V |
| type | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 24 |
| typical input noise voltage density (nv/rthz) | 8 5V |
| typical settling time (ns) | 500 |
| typical single supply voltage (v) | 3|5 |
| typical slew rate (v/us) | 11 5V |
| typical voltage gain (db) | 116 |
| voltage gain db: | 116 dB |
| voltage - input offset | 600ВµV |
| voltage - supply, single/dual (в±) | 2.7V ~ 5.5V, В±1.35V ~ 2.75V |
| vos - input offset voltage: | 600 uV |
