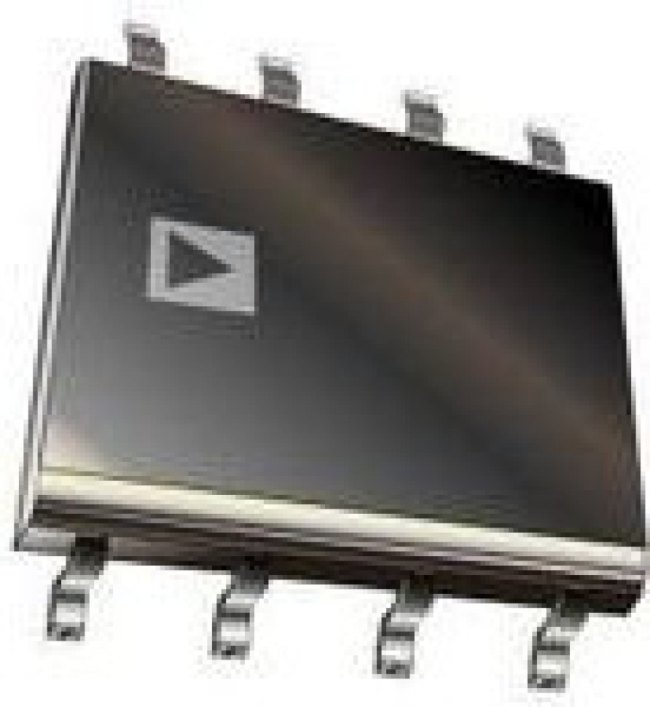

AD8639ARMZ-REEL, Op Amp Dual Wideband Amplifier R-R O/P ±8V/16V 8-Pin MSOP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: AD8639ARMZ-REEL
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Dual Wideband Amplifier R-R O/P ±8V/16V 8-Pin MSOP T/R
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:38:42 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 142 dB |
| dual supply voltage: | +/-3 V, +/-5 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 60 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1.5 MHz |
| ib - input bias current: | 75 pA |
| input offset voltage drift (uv/°c) | 0.06 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Wideband Amplifier |
| maximum dual supply voltage: | +/-8 V |
| maximum dual supply voltage (v) | ±8 |
| maximum input bias current (ua) | 0.00004@5V |
| maximum input offset current (ua) | 0.00004@5V |
| maximum input offset voltage (mv) | 0.009@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 2.6@5V |
| maximum single supply voltage (v) | 16 |
| minimum cmrr (db) | 118 |
| minimum cmrr range (db) | >=115 |
| minimum dual supply voltage: | +/-2.5 V |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 127 |
| minimum single supply voltage (v) | 5 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 3 mA |
| operating supply voltage: | 5 V to 16 V |
| output current per channel: | 37 mA |
| output type: | Rail-to-Rail |
| package / case: | MSOP-8 |
| packaging | Tape and Reel |
| партномер | 8001006382 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 143 dB |
| rail to rail | Rail to Rail Output |
| series: | AD8639 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 2.5 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Extended Industrial |
| supply voltage - max: | 16 V, +/-8 V |
| supply voltage - min: | 5 V, +/-2.5 V |
| type | Wideband Amplifier |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product (mhz) | 1.35 |
| typical high level output voltage (v) | 4.985 |
| typical input bias current (ua) | 0.0000015@5V |
| typical input noise voltage density (nv/rthz) | 60@5V |
| typical low level output voltage (v) | 0.032 |
| typical settling time (ns) | 3000 |
| typical single supply voltage (v) | 9|12|15 |
| typical slew rate (v/us) | 2.5@5V |
| typical voltage gain (db) | 136 |
| вес, г | 0.14 |
| voltage gain db: | 136 dB |
| vos - input offset voltage: | 3 uV |
