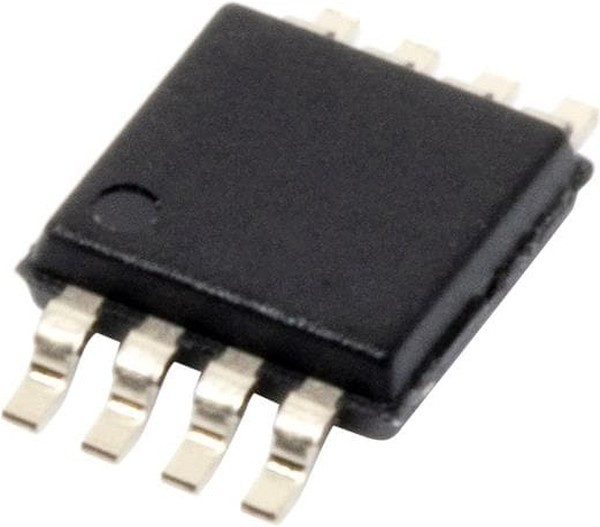

AD8626ARMZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементSC70 and 8-lead SOIC surface-mount packages. The SC70 packaged parts are available in tape and reel only. The AD8626 is available in MSOP.
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:41:48 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 105 dB |
| common mode rejection ratio | 66(dB) |
| dual supply voltage: | 2.5 V to 13 V |
| dual supply voltage (max) | ±13(V) |
| dual supply voltage (min) | ±2.5(V) |
| dual supply voltage (typ) | ±3/±5/±9/±12(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 17.5 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product: | 5 MHz |
| ib - input bias current: | 60 pA |
| input bias current | 0.001(nA) |
| input offset voltage | 0.5(mV) |
| input offset voltage drift (uv/°c) | 2.5(Typ) |
| input voltage range - max: | 11 V |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage: | 13 V |
| maximum dual supply voltage (v) | ±13 |
| maximum input bias current (ua) | 0.000001@5V |
| maximum input offset current | 0.0000005@5V |
| maximum input offset current (ua) | 0.0000005@5V |
| maximum input offset voltage (mv) | 0.5@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 26 |
| maximum supply current (ma) | 1.57@5V |
| minimum cmrr (db) | 66 |
| minimum cmrr range (db) | 65 to 70 |
| minimum dual supply voltage: | 2.5 V |
| minimum dual supply voltage (v) | ±2.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 80 |
| minimum single supply voltage (v) | 5 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of elements | 2 |
| operating supply current: | 710 uA |
| operating supply voltage: | 5 V to 26 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 15 mA |
| output type: | Rail-to-Rail |
| package / case: | MSOP-8 |
| package type | MSOP |
| packaging | Rail/Tube |
| packaging: | Tube |
| партномер | 8002980822 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply rejection ratio | 80(dB) |
| power supply requirement | Single/Dual |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiFET |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 104 dB |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| series: | AD8626 |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 26(V) |
| single supply voltage (min) | 5(V) |
| single supply voltage (typ) | 9/12/15/18/24(V) |
| slew rate | 5(V/us) |
| sr - slew rate: | 5 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Industrial |
| supply voltage - max: | 26 V, 13 V |
| supply voltage - min: | 5 V, 2.5 V |
| technology | BiFET |
| type | Low Power Amplifier |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12 |
| typical gain bandwidth product (mhz) | 5 |
| typical high level output voltage (v) | 4.92(Min) |
| typical input noise voltage density (nv/rthz) | 17.5@5V |
| typical low level output voltage (v) | 0.075(Max) |
| typical noninverting input current noise density (pa/rthz) | 0.0004@5V |
| typical output current (ma) | 10@5V |
| typical slew rate (v/us) | 5@5V |
| typical voltage gain (db) | 107.23 |
| unity gain bandwidth product | 5 |
| вес, г | 0.064 |
| voltage gain db: | 107.23 dB |
| voltage gain in db | 107.23(dB) |
| vos - input offset voltage: | 350 uV |
