| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:43:24 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 100 dB |
| development kit: | EVAL-CN0287-SDPZ |
| eccn (us) | ear99 |
| en - input voltage noise density: | 25 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 10000 |
| gbp - gain bandwidth product: | 316 kHz |
| ib - input bias current: | 500 pA |
| input offset voltage drift (uv/°c) | 04.05.2024 |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage: | +/-2.5 V |
| maximum dual supply voltage (v) | ±2.5 |
| maximum input bias current (ua) | 0.000001 5V |
| maximum input offset current (ua) | 0.000001 5V |
| maximum input offset voltage (mv) | 0.3 5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 5 |
| maximum supply current (ma) | 0.05 5V |
| minimum cmrr (db) | 85 |
| minimum cmrr range (db) | 85 to 90 |
| minimum dual supply voltage: | +/-900 mV |
| minimum dual supply voltage (v) | ±0.9 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 80 |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 50 uA |
| operating supply voltage: | 1.8 V to 6 V |
| output current per channel: | 70 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |

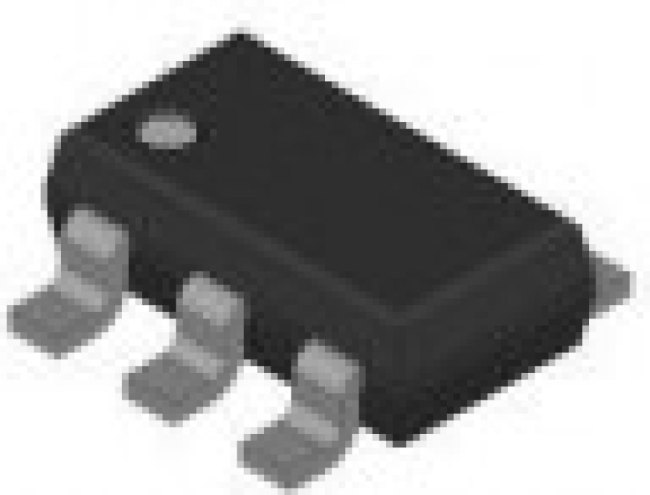

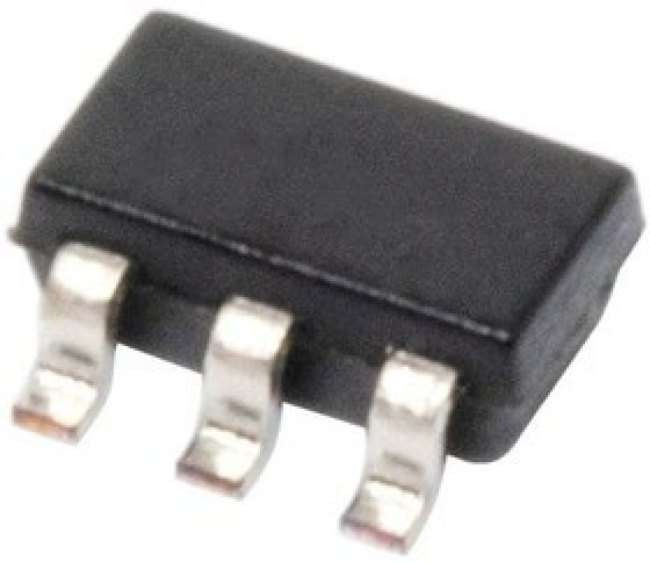

| package / case: | TSOT-23-5 |
| packaging | Tape and Reel |
| партномер | 8004967606 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Dual|Single |
| ppap | No |
| process technology | CMOS |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 100 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | AD8603 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 100 mV/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | TSOT |
| supply voltage - max: | 6 V, +/-2.5 V |
| supply voltage - min: | 1.8 V, +/-900 mV |
| type | Low Noise Amplifier |
| type: | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 0.4 |
| typical high level output voltage (v) | 4.97 |
| typical input bias current (ua) | 0 5V |
| typical input noise voltage density (nv/rthz) | 25 5V |
| typical low level output voltage (v) | 0.16 |
| typical noninverting input current noise density (pa/rthz) | 0.05 5V |
| typical output resistance (ohm) | 36 |
| typical settling time (ns) | 23000 |
| typical single supply voltage (v) | 3 |
| typical slew rate (v/us) | 0.1 5V |
| typical voltage gain (db) | 120 |
| вес, г | 0.03 |
| voltage gain db: | 120 dB |
| vos - input offset voltage: | 12 uV |
