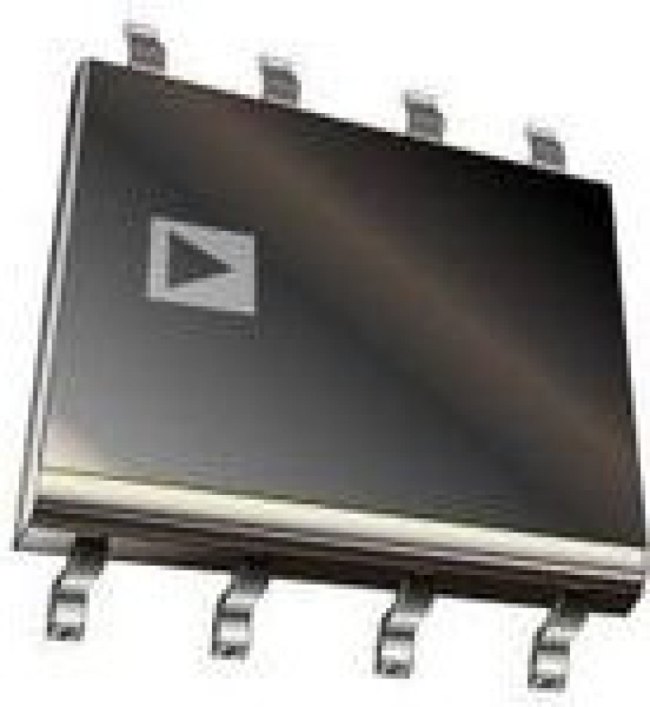

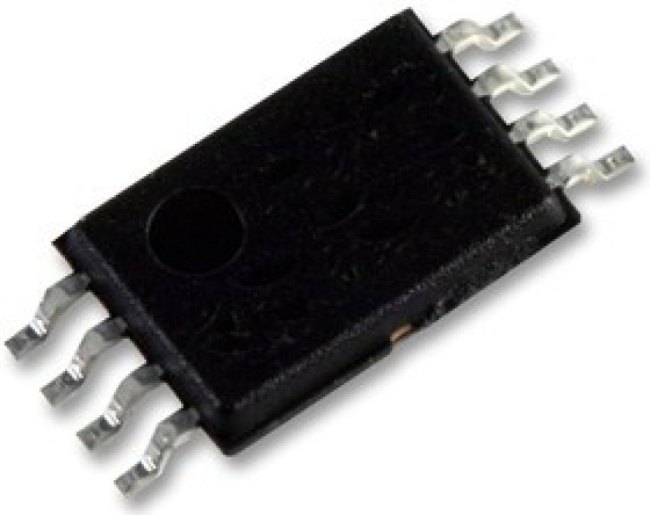

AD8572ARUZ, Операционный усилитель, 2 Усилителя, 1.5 МГц, 0.4 В/мкс, 2.7В до 5В, TSSOP, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУAD8572 is a dual channel, zero-drift, single-supply, rail-to-rail, input/output operational amplifier. Using Analog Devices, Inc., topology, this zerodrift amplifier combine low cost with high accuracy (no external capacitors are required). Using a spread-spectrum, auto-zero technique, this device eliminate the intermodulation effects from interaction of the chopping function with the signal frequency in ac applications. Position and pressure sensors, medical equipment, and strain gauge amplifiers benefit greatly from nearly zero drift over their operating temperature range. Many more systems require the rail-to-rail input and output swings provided by the device. It is widely used in application such as temperature sensors, pressure sensors, precision current sensing, strain gauge amplifiers, medical instrumentation, thermocouple amplifiers etc. • Low offset voltage is 1µV typ• Input offset drift is 0.005µV/°C typ• Single-supply operation is 2.7V to 5V• Large signal voltage gain is 145dB typical• Common-mode rejection ratio is 140dB typical• Power supply rejection ratio is 130dB typical• Ultralow input bias current is 10pA typ, input offset current is 20pA typ• Supply current per amplifier is 750µA typ• Overload recovery time is 0.05ms typ• Operating temperature is -40°C to +125°C, packaging style is 8-lead TSSOP
