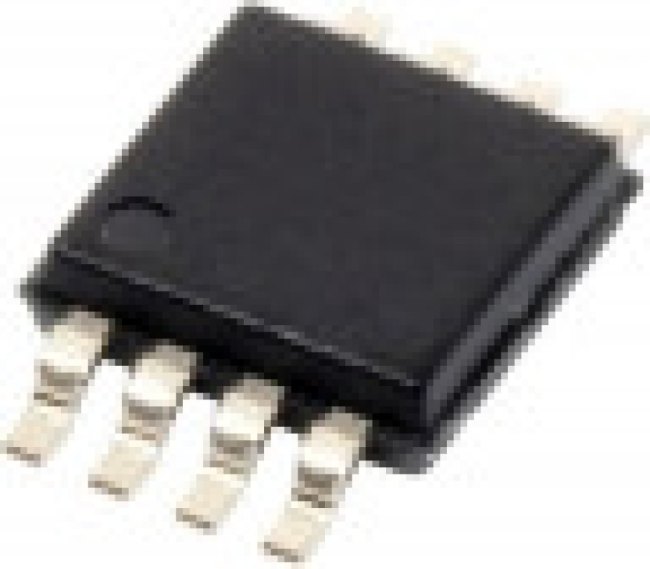

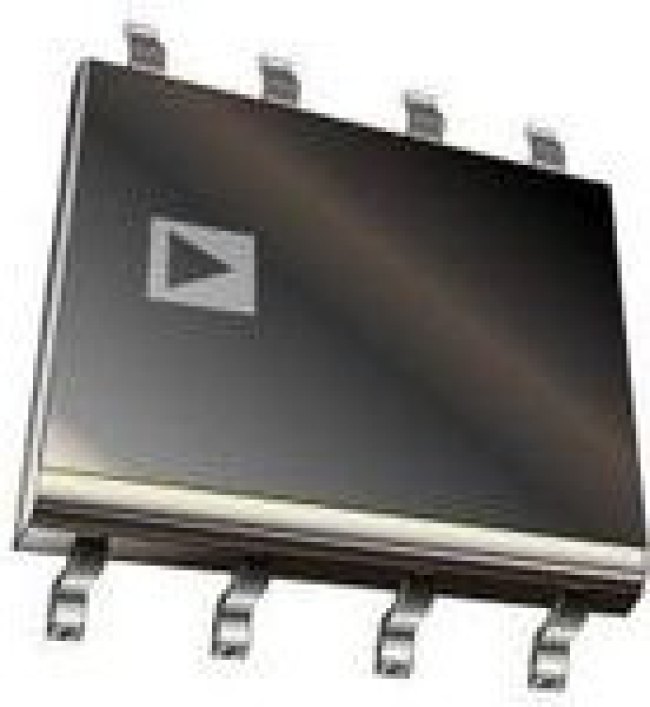

AD8571ARMZ-REEL
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:27:48 |
| Бренд | Analog Devices |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 140 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 51 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1.5 MHz |
| ib - input bias current: | 50 pA |
| input offset voltage drift (uv/°c) | 0.04 |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Zero Drift Amplifier |
| maximum input bias current (ua) | 0.00005 5V |
| maximum input offset current (ua) | 0.00007 5V |
| maximum input offset voltage (mv) | 0.005 5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.975 5V |
| maximum single supply voltage (v) | 5 |
| minimum cmrr (db) | 120 |
| minimum cmrr range (db) | >=115 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 120 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 975 uA |
| operating supply voltage: | 2.7 V to 6 V |
| output current per channel: | 30 mA |
| output type | CMOS |
| package / case: | MSOP-8 |
| packaging | Tape and Reel |
| партномер | 8007579606 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 130 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | AD8571 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 400 mV/us |
| standard package name | MSOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Automotive |
| supply voltage - max: | 6 V |
| supply voltage - min: | 2.7 V |
| type | Auto Zero/Chopper |
| type: | Chopper Stabilization |
| typical gain bandwidth product (mhz) | 01.05.2024 |
| typical high level output voltage (v) | 4.975 |
| typical input bias current (ua) | 0.00001 5V |
| typical input noise voltage density (nv/rthz) | 51 5V |
| typical low level output voltage (v) | 0.015 |
| typical noninverting input current noise density (pa/rthz) | 0.002 5V |
| typical output current (ma) | 30 5V |
| typical single supply voltage (v) | 3 |
| typical slew rate (v/us) | 0.4 5V |
| typical voltage gain (db) | 145 |
| voltage gain db: | 145 dB |
| vos - input offset voltage: | 1 uV |
