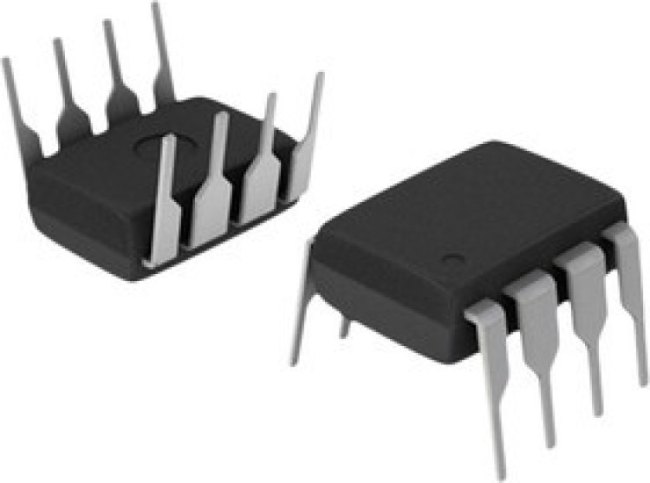

AD844ANZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
► Купить AD844ANZ в интернет-магазине ООО «Телеметрия».
■ Категория: Усилители – Инструментальные, Операционные, Буферные
★ Цена: 5 700 руб.
Почему выбирают нас:
- ✓ Оригинальная продукция
- ✓ Быстрая доставка по Москве и России
- ✓ Гарантия качества
- ✓ Консультация специалиста
☎ Заказать: +7 (929) 433-44-45
| Основные | |
| вес, г | 1.68 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting type | Through Hole |
| operating temperature | -40В°C ~ 85В°C |
| package | Tube |
| package / case | PDIP-8 |
| rohs status | ROHS3 Compliant |
| type | General Purpose Amplifier |
| eccn | EAR99 |
| htsus | 8542.33.0001 |
| reach status | REACH Unaffected |
| supplier device package | 8-PDIP |
| length | 9.27 mm |
| minimum operating temperature | -40 C |
| width | 7.24 mm |
| pin count | 8 |
| factory pack quantity | 50 |
| manufacturer | Analog Devices Inc. |
| maximum operating temperature | +85 C |
| mounting style | Through Hole |
| packaging | Tube |
| product category | Operational Amplifiers-Op Amps |
| series | AD844 |
| eu rohs | compliant |
| lead shape | Through Hole |
| maximum operating temperature (°c) | 85 |
| mounting | Through Hole |
| part status | active |
| pcb changed | 8 |
| standard package name | DIP |
| supplier package | PDIP N |
| base product number | AD844 -> |
| current - supply | 6.5mA |
| eccn (us) | ear99 |
| maximum dual supply voltage (v) | ±18 |
| maximum power dissipation (mw) | 1100 |
| minimum dual supply voltage (v) | ±4.5 |
| minimum operating temperature (°c) | -40 |
| supplier temperature grade | Industrial |
| power supply type | Dual |
| typical dual supply voltage (v) | ±12|±5|±15|±9 |
| height | 3.43 mm |
| number of channels | 1 Channel |
| hts | 8542.33.00.01 |
| package height | 3.3 |
| package length | 9.27 |
| package width | 6.35 |
| process technology | BiCOM |
| Вес и габариты | |
| rohs | Details |
| operating supply current | 7.5 mA |
| product | Operational Amplifiers |
| number of circuits | 1 |
| operating supply voltage | +/-15 V |
| technology | BiCOM |
| number of channels per chip | 1 |
| amplifier type | General Purpose Amplifier |
| shutdown | No Shutdown |
| pd - power dissipation | 1.1 W |
| current - input bias | 200pA |
| current - output / channel | 80mA |
| slew rate | 2000V/Вµs |
| voltage - input offset | 50ВµV |
| voltage - supply, single/dual (в±) | В±4.5V ~ 18V |
| supply type | Dual |
| minimum cmrr range (db) | 95 to 105 |
| minimum cmrr (db) | 100(Typ) |
| maximum input offset voltage (mv) | 0.3@±15V |
| ib - input bias current | 400 nA |
| manufacturer type | High Speed Amplifier |
| maximum input bias current (ua) | 0.4@±15V |
| gbp - gain bandwidth product | 60 MHz |
| sr - slew rate | 2000 V/us |
| -3db bandwidth | 60MHz |
| dual supply voltage | +/-4.5 to+/-18 V |
| maximum dual supply voltage | +/-18 V |
| typical gain bandwidth product (mhz) | 60 |
| psrr - power supply rejection ratio | 108 dB |
| cmrr - common mode rejection ratio | 100 dB |
| minimum dual supply voltage | +/-4.5 V |
| typical slew rate (v/us) | 2000@±15V |
| typical input noise voltage density (nv/rthz) | 2@±15V |
| typical noninverting input current noise density (pa/rthz) | 12@±15V |
| minimum psrr (db) | 107.96(Typ) |
| typical settling time (ns) | 100 |
| shut down support | No |
| en - input voltage noise density | 2 nV/sqrt Hz |
| voltage gain db | 1 dB |
| output current per channel | 60 mA |
| in - input noise current density | 12 pA/sqrt Hz |
| 3 db bandwidth | 20 Mhz |
| ios - input offset current | 1.5 uA |
| typical inverting input current noise density (pa/rthz) | 10@±15V |
| vos - input offset voltage | 500 uV |
