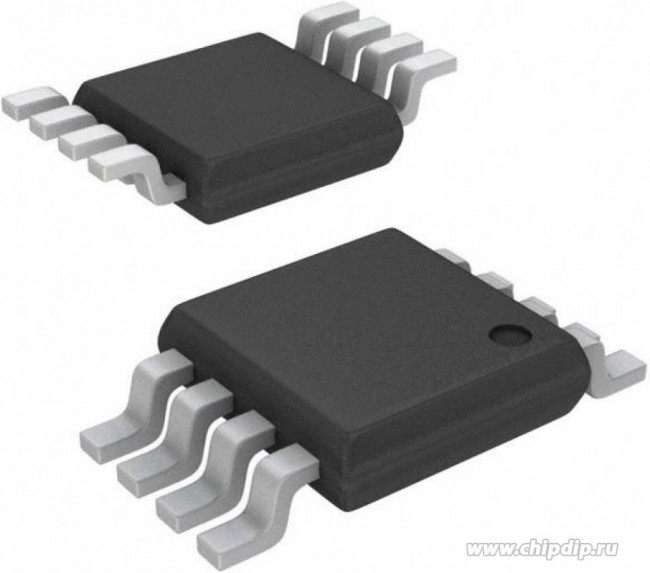

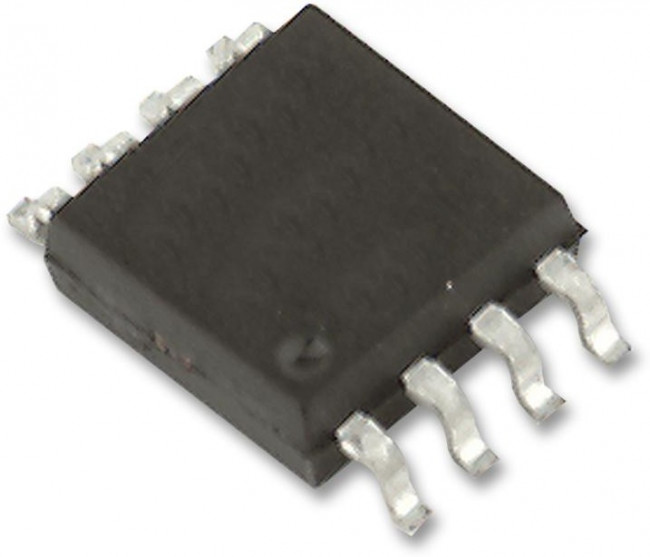

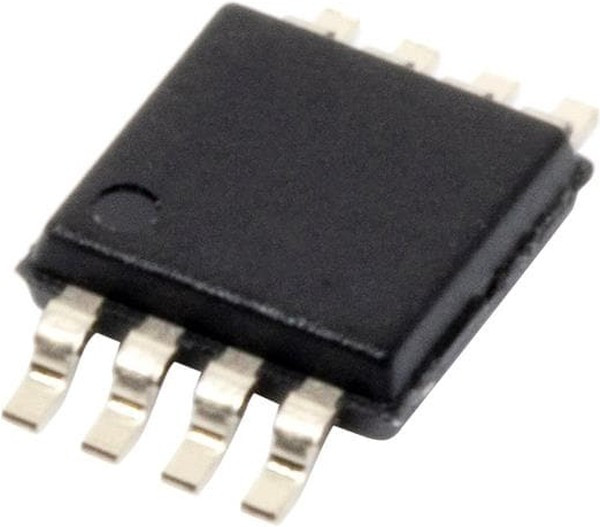

AD823AARMZ, Op Amp Dual Precision Amplifier R-R O/P ±18V/36V 8-Pin MSOP Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: AD823AARMZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers ADI SLP
| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:28:00 |
| Бренд | Analog Devices |
| Вес и габариты | |
| cmrr - common mode rejection ratio: | 90 dB |
| common mode rejection ratio | 60(dB) |
| диапазон напряжения питания | 3В до 36В |
| dual supply voltage: | 1.5 V to 18 V |
| dual supply voltage (max) | ±18(V) |
| dual supply voltage (min) | ±1.5(V) |
| eccn (us) | ear99 |
| en - input voltage noise density: | 14 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 50 |
| gbp - gain bandwidth product: | 10 MHz |
| hts | 8542.33.00.01 |
| ib - input bias current: | 25 pA |
| input offset voltage | 0.7(mV) |
| input voltage range - max: | 13.8 V |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 2 Усилителя |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| линейка продукции | - |
| максимальная рабочая температура | 85°C |
| manufacturer: | Analog Devices Inc. |
| manufacturer type | Precision Amplifier |
| maximum dual supply voltage: | 18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.000025@5V |
| maximum input offset current | 0.00002@5V |
| maximum input offset current (ua) | 0.00002@5V |
| maximum input offset voltage (mv) | 0.7@5V |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum single supply voltage (v) | 36 |
| минимальная рабочая температура | -40°C |
| minimum cmrr (db) | 60 |
| minimum cmrr range (db) | 60 to 65 |
| minimum dual supply voltage: | 1.5 V |
| minimum dual supply voltage (v) | ±1.5 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 3 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of elements | 2 |
| operating supply current: | 6.3 mA |
| operating supply voltage: | 3 V to 36 V |
| operating temperature classification | Industrial |
| operating temp range | -40C to 85C |
| output current per channel: | 17 mA |
| output type: | Rail-to-Rail |
| package / case: | MSOP-8 |
| package height | 0.85 |
| package length | 3 |
| package type | MSOP |
| package width | 3 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8001002285 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 19МГц |
| power supply rejection ratio | 70(dB) |
| power supply requirement | Single/Dual |
| power supply type | Dual|Single |
| process technology | BiFET |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| rad hardened | No |
| rail/rail i/o type | Rail to Rail Output |
| rail to rail | Rail to Rail Output |
| series: | AD823A |
| settling time | 0.325(us) |
| shutdown: | No Shutdown |
| shut down feature | No |
| shut down support | No |
| single supply voltage (max) | 36(V) |
| single supply voltage (min) | 3(V) |
| single supply voltage (typ) | 5/9/12/15/18/24/28(V) |
| скорость нарастания | 35В/мкс |
| slew rate | 30(V/us) |
| sr - slew rate: | 35 V/us |
| standard package name | MSOP |
| стандарты автомобильной промышленности | - |
| стиль корпуса усилителя | MSOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supplier temperature grade | Industrial |
| supply voltage - max: | 36 V, 18 V |
| supply voltage - min: | 3 V, 1.5 V |
| technology | BiFET |
| type | PRECISION AMPLIFIER |
| type: | General Purpose Amplifier |
| typical dual supply voltage (v) | ±15|±3|±12|±5|±9 |
| typical gain bandwidth product (mhz) | 10 |
| typical input noise voltage density (nv/rthz) | 14@5V |
| typical noninverting input current noise density (pa/rthz) | 0.001@5V |
| typical output current (ma) | 40@5V |
| typical settling time (ns) | 325 |
| typical single supply voltage (v) | 5|9|18|28|12|24|15 |
| typical slew rate (v/us) | 30@5V |
| typical voltage gain (db) | 104.86 |
| unity gain bandwidth product | 10 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| вес, г | 0.454 |
| voltage gain db: | 104.86 dB |
| voltage gain in db | 104.86(dB) |
| vos - input offset voltage: | 800 uV |
