| Информация о производителе | |
| Производитель | Analog Devices |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:43:43 |
| Бренд | Analog Devices |
| Вес и габариты | |
| 3 db bandwidth: | 200 kHz |
| amplifier type | Instrumentation Amplifier |
| amplifier type: | Instrumentation Amplifier |
| automotive | No |
| bandwidth | 20 kHz |
| bandwidth: | 20 kHz |
| cmrr - common mode rejection ratio | 114 dB |
| cmrr - common mode rejection ratio: | 114 dB |
| диапазон напряжения питания | 1.8В до 5.5В |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity | 1000 |
| factory pack quantity: factory pack quantity: | 1000 |
| height | 0.85 mm |
| ib - input bias current | 250 pA |
| ib - input bias current: | 250 pA |
| категория | Электронные компоненты/Микросхемы |
| коэффициент подавления синфазного сигнала | 140дБ |
| количество усилителей | 1 Усилитель |
| количество выводов | 8вывод(-ов) |
| lead shape | Gull-wing |
| length | 3 mm |
| линейка продукции | - |
| максимальная рабочая температура | 125°C |
| manufacturer | Analog Devices Inc. |
| manufacturer: | Analog Devices Inc. |
| maximum input bias current (ua) | 0.00065 5V |
| maximum input offset voltage (mv) | 0.075 5V |
| maximum input resistance | 600 GOhms at 5 V |
| maximum input resistance (mohm) | 800(Typ)5V |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 05.05.2024 |
| maximum supply voltage range (v) | 5 to 7 |
| maximum voltage gain (db) | 60 |
| maximum voltage gain range (db) | 60 to 75 |
| минимальная рабочая температура | -40°C |
| minimum cmrr (db) | 104 |
| minimum cmrr range (db) | 95 to 105 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| напряжение входного смещения | 30мкВ |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current | 115 uA |
| operating supply current: | 115 uA |
| operating supply voltage | 1.8 V to 5.5 V |
| operating supply voltage: | 1.8 V to 5.5 V |

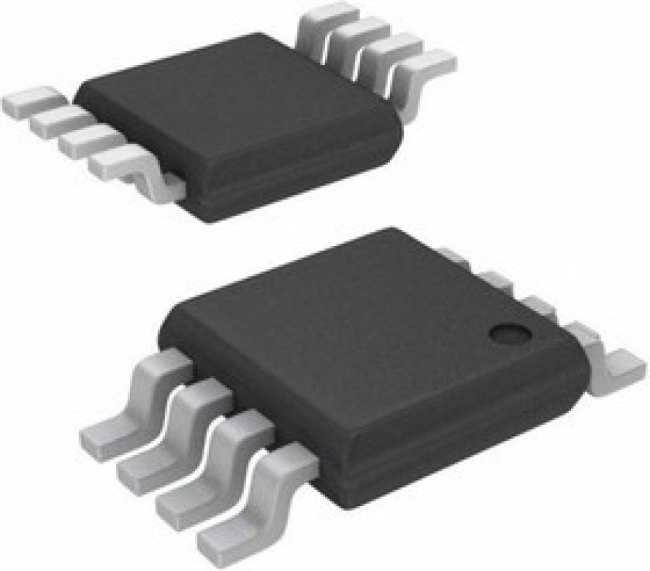

| package / case | MSOP-8 |
| package / case: | MSOP-8 |
| packaging | Tape and Reel |
| партномер | 8016784558 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| полоса пропускания | 200кГц |
| power supply type | Single |
| ppap | No |
| product | Instrumentation Amplifiers |
| product: | Instrumentation Amplifiers |
| product category | Instrumentation Amplifiers |
| product category: | Instrumentation Amplifiers |
| product type: | Instrumentation Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| rohs | Details |
| series | AD8237 |
| series: | AD8237 |
| скорость нарастания | 0.15В/мкс |
| sr - slew rate: | 150 mV/us |
| standard package name | SOP |
| стандарты автомобильной промышленности | - |
| стиль корпуса усилителя | MSOP |
| subcategory: | Amplifier ICs |
| supplier package | MSOP |
| supply type | Single |
| supply type: | Single |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 1.8 V |
| supply voltage - min: | 1.8 V |
| typical single supply voltage (v) | 3|5 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| voltage gain db | 60 dB |
| voltage gain db: | 60 dB |
| vos - input offset voltage | 75 uV |
| vos - input offset voltage: | 75 uV |
| выход усилителя | Полный Размах Напряжения |
| width | 3 mm |
