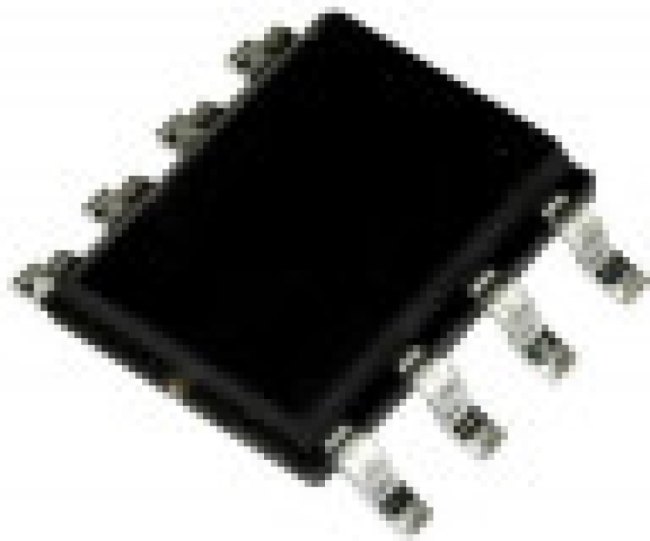

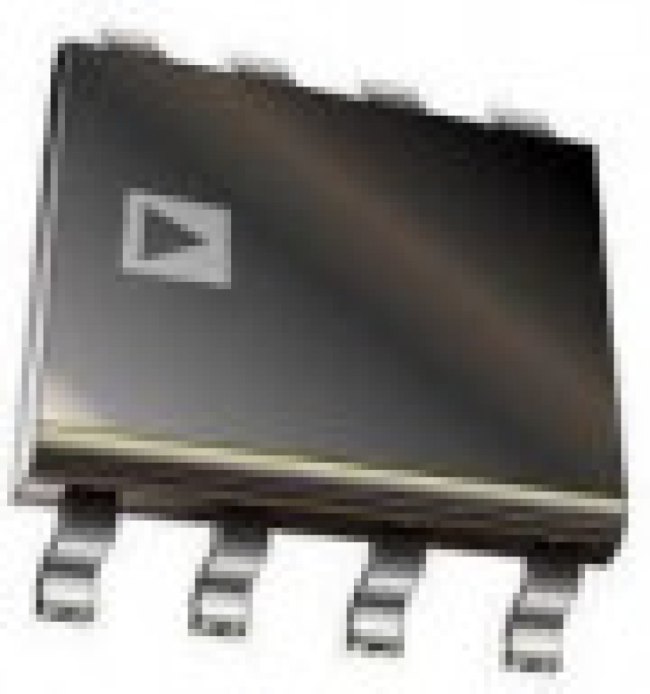

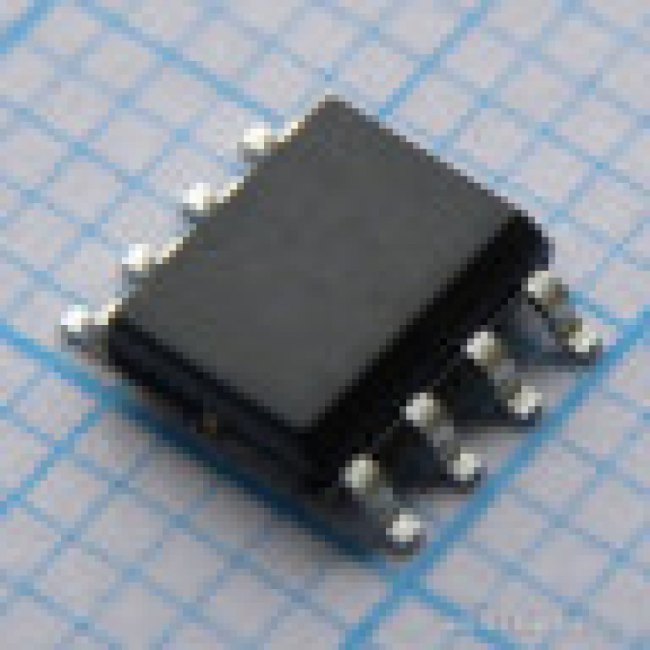

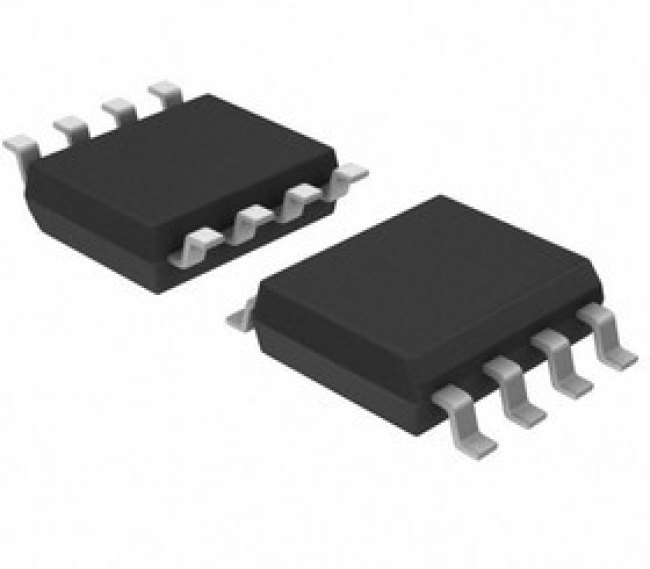

AD822BRZ-REEL7, Операционный усилитель с однополярным питанием, с полевыми транзисторами на входе [SO-8]

AD822 is a dual precision, low power FET input op amp. It can operate from a single supply of 5V to 30V or from dual supplies of ±2.5V to ±15V. It has true single-supply capability with an input voltage range extending below the negative rail, allowing the opamp to accommodate input signals below ground while in the single-supply mode. Output voltage swing extends to within 10mV of each rail, providing the maximum output dynamic range. It is mainly used in application such as battery-powered precision instrumentation, photodiode preamps, active filters, 12-bit to 14-bit data acquisition systems, medical instrumentation, low power references and regulators etc. • High load drive, capacitive load drive of 350pF, G = +1• Minimum output current is 15mA• Excellent ac performance for low power• Maximum quiescent current per amplifier is 1.24mA typ at VS = 0V, 5V at TA = 25°C• Unity-gain bandwidth is 1.8MHz, no phase inversion• Slew rate is 3V/µs, low noise is 13nV/√Hz at 10kHz• Good dc performance, maximum input offset voltage is 0.4mV• Offset voltage drift is 2µV/°C typ, maximum input bias current is 10pA• Operating temperature range is -40°C to +85°C• Packaging style is 8-lead SOIC• N
